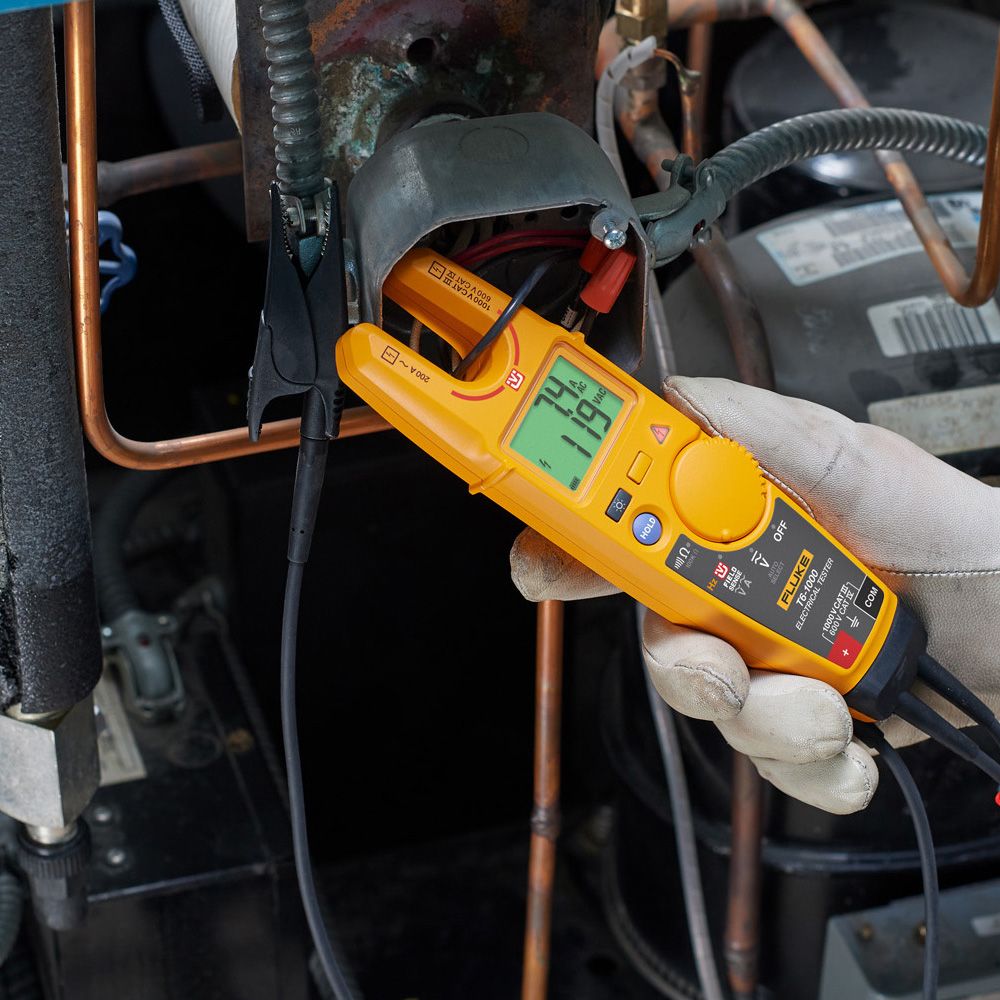

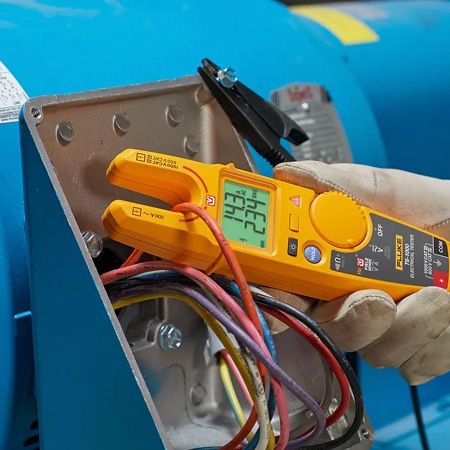

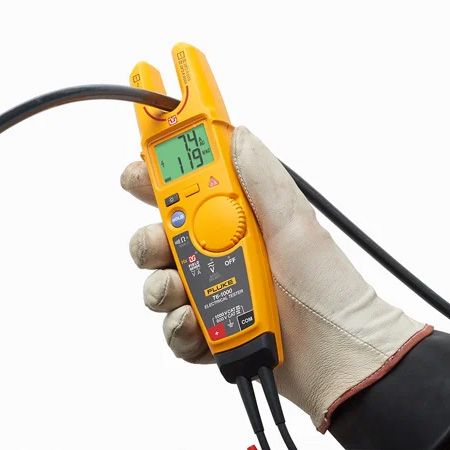

The Fluke T6-1000 PRO Electrical Tester lets you measure up to 1000 V AC and 200 A AC through the open fork—no direct contact with live voltage needed. Simply connect the black lead to ground with the heavy-duty alligator clip, slide the wire into the fork, and view voltage and current simultaneously. Compatible with wires up to AWG 4/0 (120 mm²) carrying 200 A and 1000 V AC, it’s easy to use even with gloves and transforms the way you work.

Feature	Specification
Brand	Fluke
Model Number	T6-1000
Product Type	Electrical Tester
Maximum Voltage	1000V AC/DC
Maximum Current	200A AC (Open Fork)
Resistance Range	1 Ω to 100 kΩ
Frequency Measurement	45 Hz to 66 Hz
Continuity Check	Yes
Display Type	LCD with Backlight
Battery Type	AA, LR6
Safety Category	CAT III 1000V / CAT IV 600V

Manuals & Videos	Product Datasheet (PDF) Download Full Datasheet Product Datasheet (PDF) Download Full Datasheet
Specifications Description	The T6-1000 lets you take True rms voltage and current measurements quickly and safely, without the hassle of test leads. Its unique FieldSense™ technology detects the electrical field around a live conductor, enabling accurate measurements without direct contact. Featuring a HOLD button for freezing readings, large easy-to-read display with backlight, and compatibility with the Fluke TPACK ToolPak™ Magnetic Meter Hanger, this tester enhances productivity and convenience in any work environment. How FieldSense™ technology works: FieldSense™ technology interprets the electrical field around a conductor to provide accurate voltage measurements. By interacting with a T6 reference signal, the tester displays voltage values on its screen without requiring physical contact with the conductor. Specifications: Measurement Specifications: FieldSense ac voltage true-rms: 1000 V, Resolution: 1 V, Accuracy: ± (3 % + 3 counts) 45 Hz - 66 Hz FieldSense ac current true-rms: 200.0 A, Resolution: 0.1 A, Accuracy: ± (3% + 3 counts) 45 Hz - 66 Hz FieldSense frequency (Hz): 45 Hz – 66 Hz, Resolution: 1 Hz, Accuracy: ± (1% + 2 counts) Volts ac true-rms: 1000 V, Resolution: 1 V, Accuracy: ± (1.5% + 2 counts) 45 Hz - 66 Hz Volts dc: 1000 V, Resolution: 1 V, Accuracy: ± (1% + 2 counts) Resistance: 2000 Ω (Resolution: 1 Ω, Accuracy: ± (1% + 2 counts)), 20.00 kΩ (Resolution: 0.01 kΩ), 100.0 kΩ (Resolution: 0.1 kΩ) Safety: 1000 V CAT III, 600 V CAT IV General Specifications: Calibration: 1-year calibration cycle Dimensions: 61.1 x 259.3 x 43.8 mm Jaw opening: 17.8 mm Weight: 0.35 kg (0.78 lb) Temperature: Operating: -10 °C to +50 °C (14 °F to 122 °F) Storage: -30 °C to +60 °C (-22 °F to +140 °F) Altitude: Operating: Up to 2,000 m (6,562 feet) Storage: Up to 10,000 m (32,808 feet) Relative Humidity: 0% to 90%, 5 °C to 30 °C (41 °F to 86 °F) 0% to 75%, 30°C to 40 °C (86 °F to 104 °F) 0% to 45%, 40°C to 50 °C (104 °F to 122 °F) Battery Type and Life: 2 x AA (IEC LR6); 360 hours continuous (typical); 200 hours using FieldSense Temperature coefficient: 0.1 x (specified accuracy) / °C for <18°C or >28 °C Safety: IEC/EN 61010-1: Pollution Degree 2 Electromagnetic Environment: IEC/EN 61326-1: Portable
Package Weight (kg)	0.270000
Package Length (cm)	33.53
Package Width (cm)	13.72
Package Height (cm)	5.84
Manufacturer	FLUKE
Consignment	Yes

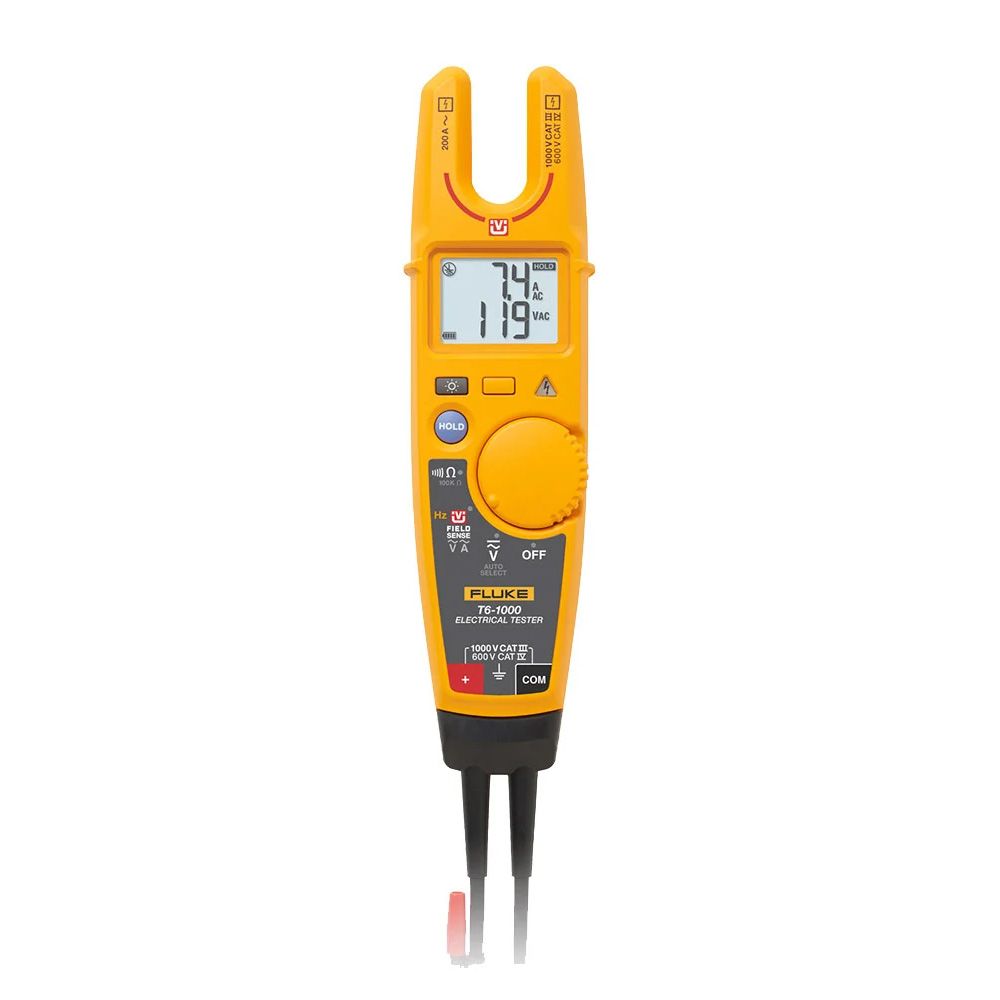

Fluke T6-1000 Electrical Tester
