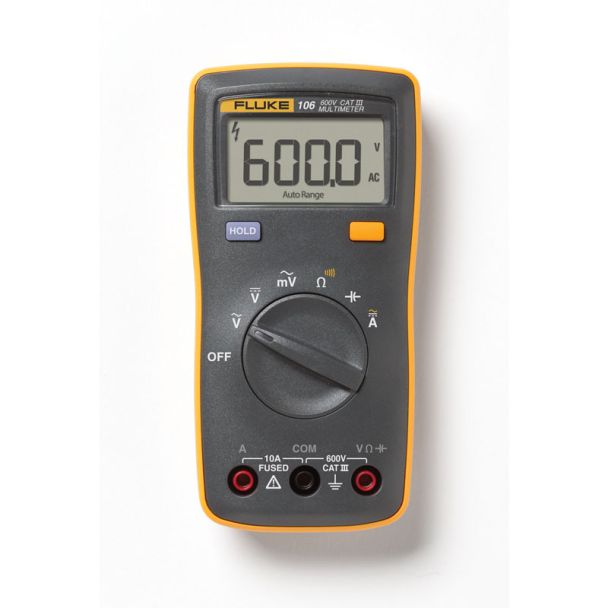

Fluke 106 Handheld Digital Multimeter
In stock
SKU
TTESDM106

Find a Store

Compact and easy to carry, the Fluke 106 Digital Multimeter is built for accuracy on the go. Perfect for electricians, technicians and DIY users, this pocket sized tool delivers reliable measurements wherever the job takes you, making it an essential addition to any toolbox.





Technical Specifications

FeatureSpecification
BrandFluke
Product TypeMultimeter
Multimeter TypeHandheld
Model106
Display TypeDigital (6000 counts, 3 updates/sec)
Maximum DC Voltage600 V
DC Voltage Accuracy±0.5 % rdg + 3 Digits
AC Voltage Accuracy±1.0 % + 3
AC Current Accuracy±1.5 % rdg + 3 Digits
DC Current Accuracy±1.5 % rdg + 3 Digits
Resistance Measurement Accuracy±0.5 % + 3 Digits
Resistance Resolution0.1 Ω
DC Voltage Resolution0.001 V
AC Voltage Resolution0.001 V
Maximum Frequency100 kHz
Functions MeasuredAC Voltage, DC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test
Input Impedance>10 MΩ (V), ~1 MΩ (mV)
Overload Protection600 V (AC/DC V), 600 mV (AC mV)
Safety CategoryCAT III 600 V
IP RatingIP40 (IEC 60529)
Operating Temperature0 °C to 40 °C
Storage Temperature-30 °C to 60 °C
Battery Type2 x AAA (NEDA 24A, IEC LR03)
Battery Life200 Hours Minimum
Dimensions (L x W x H)142 mm x 69 mm x 28 mm
Weight200 g
StandardsIEC 61010-1, IEC 61326-1

Measurement Ranges

Function Range Resolution Accuracy
AC Volts (40 Hz – 500 Hz) 6.000 V / 60.00 V / 600.0 V 0.001 V / 0.01 V / 0.1 V 1.0 % + 3
DC Volts 6.000 V / 60.00 V / 600.0 V 0.001 V / 0.01 V / 0.1 V 0.5 % + 3
AC Millivolts 600.0 mV 0.1 mV 3.0 % + 3
Resistance 400.0 Ω to 40.00 MΩ (6 ranges) 0.1 Ω to 0.01 MΩ 0.5 % + 2 to 1.5 % + 3
Capacitance 50.00 nF to 1000 μF (6 ranges) 0.01 nF to 1 μF 2 % + 5 to 5 % + 5
Frequency 50.00 Hz to 100.0 kHz 0.01 Hz to 0.1 kHz
Duty Cycle 1 % to 99 % 0.1 %
AC Current (40 Hz – 200 Hz) 4.000 A / 10.00 A 0.001 A / 0.01 A 1.5 % + 3
DC Current 4.000 A / 10.00 A 0.001 A / 0.01 A 1.5 % + 3
Diode Test 2.000 V 0.001 V 10 %

Key Features

  • Compact and lightweight handheld digital multimeter
  • 6000-count display with 3 updates per second
  • Measures AC/DC voltage up to 600 V
  • Measures AC/DC current up to 10 A
  • Resistance measurement up to 40 MΩ
  • Capacitance measurement up to 1000 μF
  • Frequency measurement up to 100 kHz
  • CAT III 600 V safety rating
  • IP40 protection rating
  • Powered by 2 x AAA batteries with up to 200-hour battery life

Frequently Asked Questions

What can this multimeter measure?

The Fluke 106 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and includes a diode test function, making it suitable for electrical troubleshooting and general maintenance work.

Is this multimeter suitable for home and workshop use?

Yes, with a CAT III 600 V safety rating, it is suitable for household electrical circuits, light industrial work, and workshop diagnostics.

What batteries does the Fluke 106 use?

It uses 2 x AAA batteries (NEDA 24A, IEC LR03) and offers up to 200 hours of battery life under normal operating conditions.

Can this multimeter measure frequency?

Yes, it can measure frequency from 50 Hz up to 100 kHz, making it useful for checking signal outputs and electronic circuits.

Is this a True RMS multimeter?

No, the Fluke 106 is not a True RMS multimeter. It is best suited for standard electrical measurements where True RMS capability is not required.

Product Manual 1 – User Manual (PDF)
Download Full Manual


Product Manual 2 – User Manual (PDF)
Download Full Manual
Write Your Own Review
You're reviewing:Fluke 106 Handheld Digital Multimeter
Your Rating
More Information
Manuals & Videos
Product Manual 1 – User Manual (PDF)
Download Full Manual


Product Manual 2 – User Manual (PDF)
Download Full Manual
Specifications Description
  • Versatile Measurement Capabilities: Measures voltage, resistance, continuity, capacitance, and current, both AC and DC, up to 10 A.
  • Compact Design: Palm-sized for easy portability and convenience, fitting comfortably in your hand or pocket.
  • Data Hold Function: Allows you to freeze the displayed value for easier reading and recording.
  • Wide Application Range: Suitable for various tasks in residential, commercial, and industrial environments.

Specifications

Accuracy Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %.

  • Maximum Voltage Between any Terminal and Earth Ground: 600 V
  • Display (LCD): 6000 counts, updates 3/sec
  • Battery Type: 2 AAA, NEDA 24A, IEC LR03
  • Battery Life: 200 hours minimum
  • Temperature: Operating 0 °C to 40 °C; Storage -30 °C to 60 °C
  • Relative Humidity: ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
  • Operating Altitude: 2000 m; Storage Altitude: 12,000 m
  • Size (HxWxL): 142 mm x 69 mm x 28 mm
  • Weight: 200 g
  • IP Rating: IEC 60529: IP 40
  • Safety: IEC 61010-1: 600 V CAT III, Pollution Degree 2
  • Electromagnetic Environment: IEC 61326-1: Portable

Safety Features

  • Overload Protection: Ensures safe operation under high voltage conditions.
  • Fuse Protection: 11A, 1000V fast fuse for current inputs.
Package Weight (kg) 0.360000
Package Length (cm) 20.50
Package Width (cm) 10.50
Package Height (cm) 5.50
