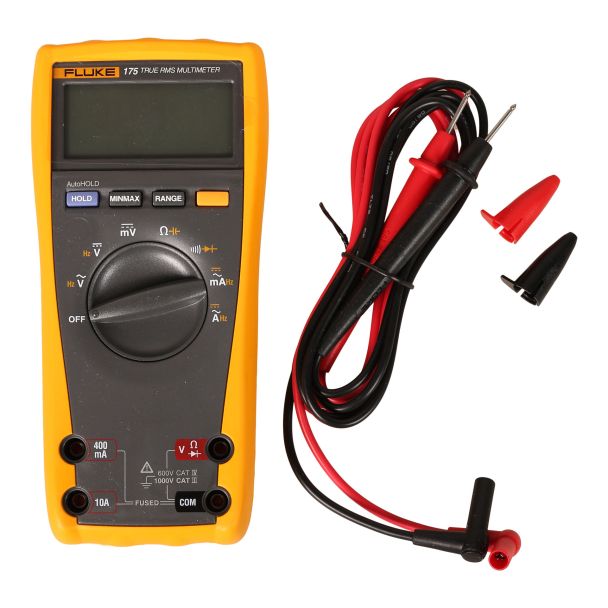

Fluke 175 Handheld Digital Multimeter True RMS
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Fluke |
| Product Type | Multimeter |
| Multimeter Type | Handheld |
| Model | 175 |
| Display Type | Digital, 6000 Count with Backlight & Analogue Bargraph |
| True RMS | Yes |
| Functions Measured | AC Voltage, DC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency, Diode, Continuity |
| Maximum DC Voltage | 1000 V |
| AC Voltage Accuracy | ±1 % rdg + 3 Digits |
| DC Voltage Accuracy | ±0.15 % rdg + 2 Digits |
| Maximum Resistance | 50 MΩ |
| Resistance Resolution | 100 mΩ |
| Resistance Accuracy | ±1.5 % + 3 Digits |
| AC Current Accuracy | ±1.5 % rdg + 3 Digits |
| DC Current Accuracy | ±1 % rdg + 3 Digits |
| AC Current Resolution | 0.01 mA |
| DC Current Resolution | 0.01 mA |
| AC Voltage Resolution | 0.1 mV |
| DC Voltage Resolution | 0.1 mV |
| Maximum Frequency | 1 kHz |
| Minimum Operating Temperature | -10 °C |
| Maximum Operating Temperature | 50 °C |
| Battery Life | 200 Hours |
| Safety Category | CAT III 1000 V / CAT IV 600 V |
| Safety Category Voltage | 1000 V |
| Dimensions (L x W x H) | 185 mm x 90 mm x 43 mm |
| Weight | 420 g |
Key Features
- True-RMS measurements for accurate readings on non-linear AC signals
- 6000-count digital display with backlight and analogue bargraph
- Measures up to 1000 V DC and AC
- Display Hold and AutoHOLD® for capturing important readings
- Min/Max/Average recording with Min/Max alert
- Audible continuity and diode test
- Unsafe voltage alert for voltages above 30 V
- Low battery indicator
- Easy battery and fuse replacement without opening the case
- Selectable sleep mode to preserve battery life
- Ergonomic case with integrated holster and carry case included
Applications
- Electrical and electronic industries
- Automotive diagnostics and manufacturing
- HVAC and electro-mechanical troubleshooting
- Textile industry maintenance
- General workshop and field service use
What’s Included
- Fluke 175 True-RMS Digital Multimeter
- 1 Pair Test Leads
- 9V Battery (Installed)
- Quick Reference Guide
How to Use a Multimeter
Learn how to safely measure voltage, current, resistance and frequency. This guide explains correct setup, probe placement and essential safety precautions for professional and DIY use.
Frequently Asked Questions
Can I use the Fluke 175 to test if a fuse is good or bad?
Yes. You can use the continuity function to test whether a fuse is functioning correctly. If the meter beeps, the fuse is good. If there is no continuity, the fuse is likely blown.
Is the Fluke 175 suitable for automotive use?
Yes, this multimeter is well suited for automotive diagnostics, including checking battery voltage, alternator output, and electrical circuits.
Is this multimeter suitable for HVAC applications?
While the Fluke 175 handles most electrical measurements, technicians specifically needing built-in temperature measurement may consider the Fluke 179 model, which includes a thermometer function.
Does this multimeter measure True RMS?
Yes, True RMS capability ensures accurate measurements on complex and non-linear AC signals commonly found in industrial environments.
Does it include everything needed to start testing?
Yes, it comes supplied with test leads, a 9V battery (installed), and a quick reference guide, so it is ready for immediate use.
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Write Your Own Review
| Manuals & Videos | Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
Fluke – User Manual (PDF)
Download Full Manual
|
|---|---|
| Specifications Description | Please note: SANAS Calibration cost not included , please request pricing if SANAS Calibration is a requirement. |
| Package Weight (kg) | 0.760000 |
| Package Length (cm) | 15.80 |
| Package Width (cm) | 25.00 |
| Package Height (cm) | 9.00 |
| Manufacturer | FLUKE |
| Consignment | No |
