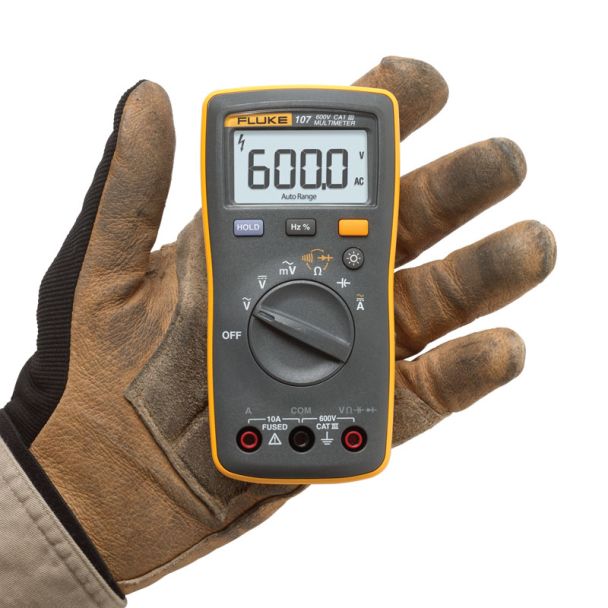

The Fluke 107 is a compact, palm-sized digital multimeter designed for convenience and durability. Small enough to slip into a pocket yet tough enough to handle daily use with a 1-meter drop test, it’s ideal for first-pass troubleshooting. Delivering dependable measurements where True-RMS isn’t required, it also carries a CAT III 600 V safety rating. Weighing just 200 g with a comfortable grip, the Fluke 107 is lightweight, portable, and easy to use.

Category	Specification
AC Volts (40 Hz – 500 Hz)	Ranges: 6.000 V / 60.00 V / 600.0 V Resolution: 0.001 V / 0.01 V / 0.1 V Accuracy: 1.0 % + 3
DC Volts	Ranges: 6.000 V / 60.00 V / 600.0 V Resolution: 0.001 V / 0.01 V / 0.1 V Accuracy: 0.5 % + 3
AC Millivolts	Range: 600.0 mV Resolution: 0.1 mV Accuracy: 3.0 % + 3
Diode Test	Range: 2.000 V Resolution: 0.001 V Accuracy: 10 %
Resistance (Ohms)	Ranges: 400.0 Ω / 4.000 kΩ / 40.00 kΩ / 400.0 kΩ / 4.000 MΩ / 40.00 MΩ Resolution: 0.1 Ω to 0.01 MΩ Accuracy: 0.5 % + 3 (most ranges), 1.5 % + 3 (40 MΩ range)
Capacitance	Ranges: 50.00 nF to 1000 μF Resolution: 0.01 nF to 1 μF Accuracy: 2 % + 5 (≤500 nF), 5 % + 5 (≥5 μF)
Frequency (10 Hz – 100 kHz)	Ranges: 50.00 Hz to 100.0 kHz Resolution: 0.01 Hz to 0.1 kHz Accuracy: 0.1 % + 3
Duty Cycle	Range: 1 % to 99 % Resolution: 0.1 % Accuracy: 1 % typical
AC Current (40 Hz – 200 Hz)	Ranges: 4.000 A / 10.00 A Resolution: 0.001 A / 0.01 A Accuracy: 1.5 % + 3
DC Current	Ranges: 4.000 A / 10.00 A Resolution: 0.001 A / 0.01 A Accuracy: 1.5 % + 3
Overload Protection	AC/DC Volts: 600 V AC mV: 600 mV
Input Impedance	>10 MΩ (<100 pF) for Volts Approx. 1 MΩ for mV (AC)
Display	6000 count LCD, 3 updates per second
Battery	2 × AAA (NEDA 24A, IEC LR03) Approx. 200 hours battery life
Operating Temperature	0 °C to 40 °C
Storage Temperature	-30 °C to 60 °C
Operating Altitude	2000 m
Storage Altitude	12,000 m
Fuse Protection	11A, 1000V Fast Fuse (Fluke specified part only)
Dimensions (H × W × L)	142 mm × 69 mm × 28 mm
Weight	200 g
IP Rating	IEC 60529: IP40
Safety Rating	IEC 61010-1: 600 V CAT III, Pollution Degree 2

Manuals & Videos	Fluke – User Manual (PDF) Download Full Manual
Specifications Description	General Specifications Maximum Voltage Between any Terminal and Earth Ground: 600 V Display (LCD): 6000 counts, updates 3 times/sec Battery Type: 2 AAA batteries (NEDA 24A, IEC LR03) Battery Life: Minimum 200 hours Temperature: Operating 0 °C to 40 °C; Storage -30 °C to 60 °C Relative Humidity: ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C Operating Altitude: 2000 m; Storage Altitude: 12,000 m Size (HxWxL): 142 mm x 69 mm x 28 mm Weight: 200 g IP Rating: IEC 60529: IP 40 Safety: IEC 61010-1: 600 V CAT III, Pollution Degree 2 Electromagnetic Environment: IEC 61326-1: Portable
Package Weight (kg)	0.440000
Package Length (cm)	16.20
Package Width (cm)	10.60
Package Height (cm)	5.80
Manufacturer	FLUKE
Consignment	No

Fluke 107 Pocket Digital Multimeter
