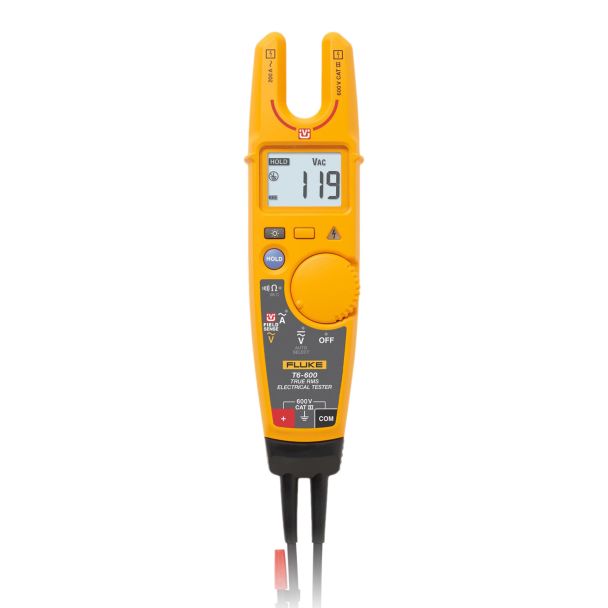

The Fluke T6-600 Current and Continuity Tester with FieldSense™ technology allows fast, safe measurements by simply sliding the open fork over a conductor , no test leads required. It accommodates wires up to AWG 4/0 (120 mm²) with a 17.8 mm jaw opening.
| Function | Test Leads Required | Range | Resolution | Accuracy |
|---|---|---|---|---|
| FieldSense AC Voltage (True RMS) | No | 600 V | 1 V | ±(3% + 3 counts) 45 Hz – 66 Hz |
| FieldSense AC Current (True RMS) | No | 200.0 A | 0.1 A | ±(3% + 3 counts) 45 Hz – 66 Hz |
| Volts AC (True RMS) | Yes | 600 V | 1 V | ±(1.5% + 2 counts) 45 Hz – 66 Hz |
| Volts DC | Yes | 600 V | 1 V | ±(1% + 2 counts) |
| Resistance | Yes | 2000 Ω | 1 Ω | ±(1% + 2 counts) |
| Safety Specifications | Value |
|---|---|
| Measurement Category | 600 V CAT III |
| Standard Compliance | IEC/EN 61010-1: Pollution Degree 2 |
| General Specifications | Value |
|---|---|
| Calibration Cycle | 1 year |
| Dimensions | 61.1 x 259.3 x 43.8 mm |
| Jaw Opening | 17.8 mm |
| Weight | 0.35 kg (0.78 lb) |
| Environmental Specifications | Value |
|---|---|
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -30°C to +60°C (-22°F to 140°F) |
| Altitude (Operating) | 2000 m (6,562 ft) |
| Altitude (Storage) | 10,000 m (32,808 ft) |
| Relative Humidity | 0%–90% (5°C–30°C); 0%–75% (30°C–40°C); 0%–45% (40°C–50°C) |
| Electromagnetic Environment | IEC/EN 61326-1: Portable |
| Temperature Coefficient | 0.1 × (specified accuracy)/°C (<18°C or >28°C) |
| Power | Value |
|---|---|
| Battery Type | 2 x AA (IEC LR6) |
| Battery Life | 360 hours (typical); 200 hours using FieldSense |
| Package Length (cm) | 33.53 |
|---|---|
| Package Width (cm) | 14.22 |
| Package Height (cm) | 7.10 |
| Package Weight (kg) | 0.270000 |
| AC Voltage | 600 V |
| Frequency | 1 HZ |
| Type | simple |
| Specifications Description | Measure voltage … without test leads
How FieldSense™ technology works FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field, which interacts with a reference signal created by the T6 tester, which shows the measurement value on the tester’s display. Tips on using FieldSense technology Do not hold or touch wire you are testing during a measurement. Measurement versatility The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true rms voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC. You can also gather resistance measurement from 1 Ω to 2000 Ω. With the easy-to-read backlit display, you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation. Please note: SANAS Calibration cost not included , please request pricing if SANAS Calibration is a requirement. |
