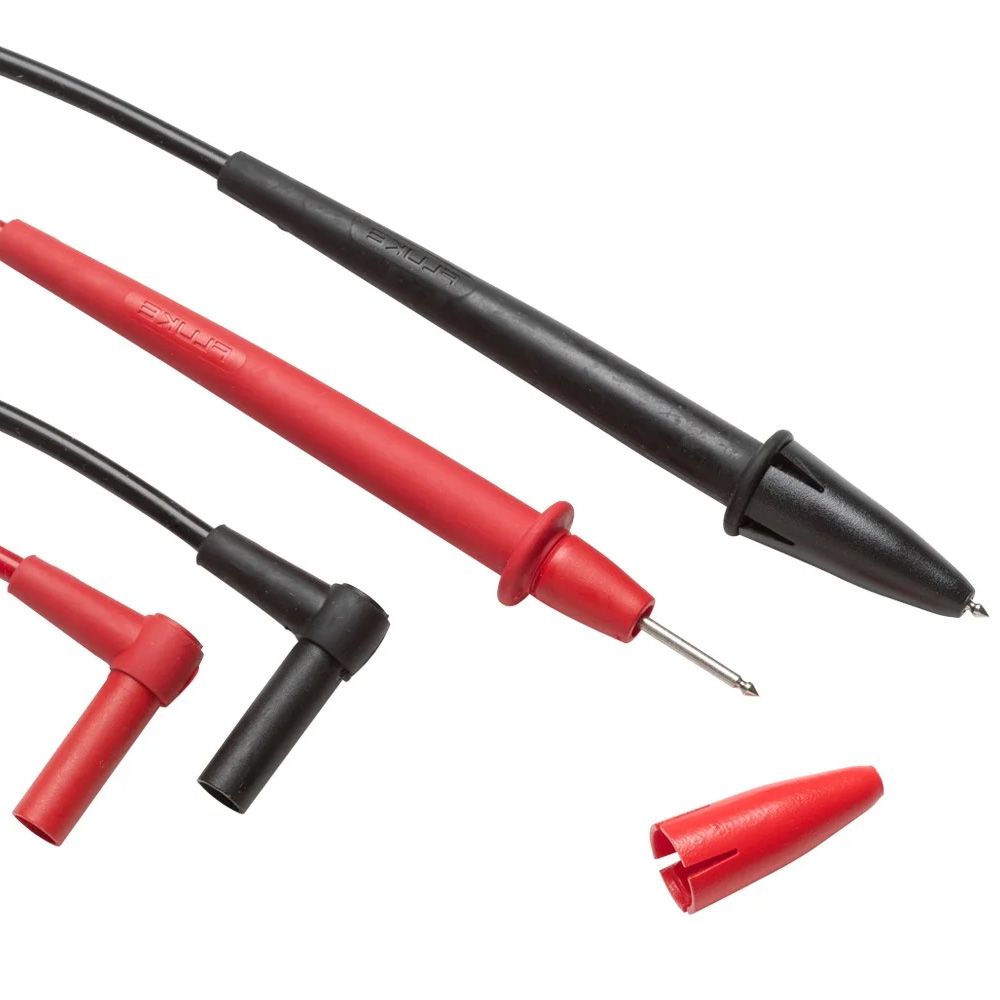

Fluke TL75 Hard Point™ Test Lead Set

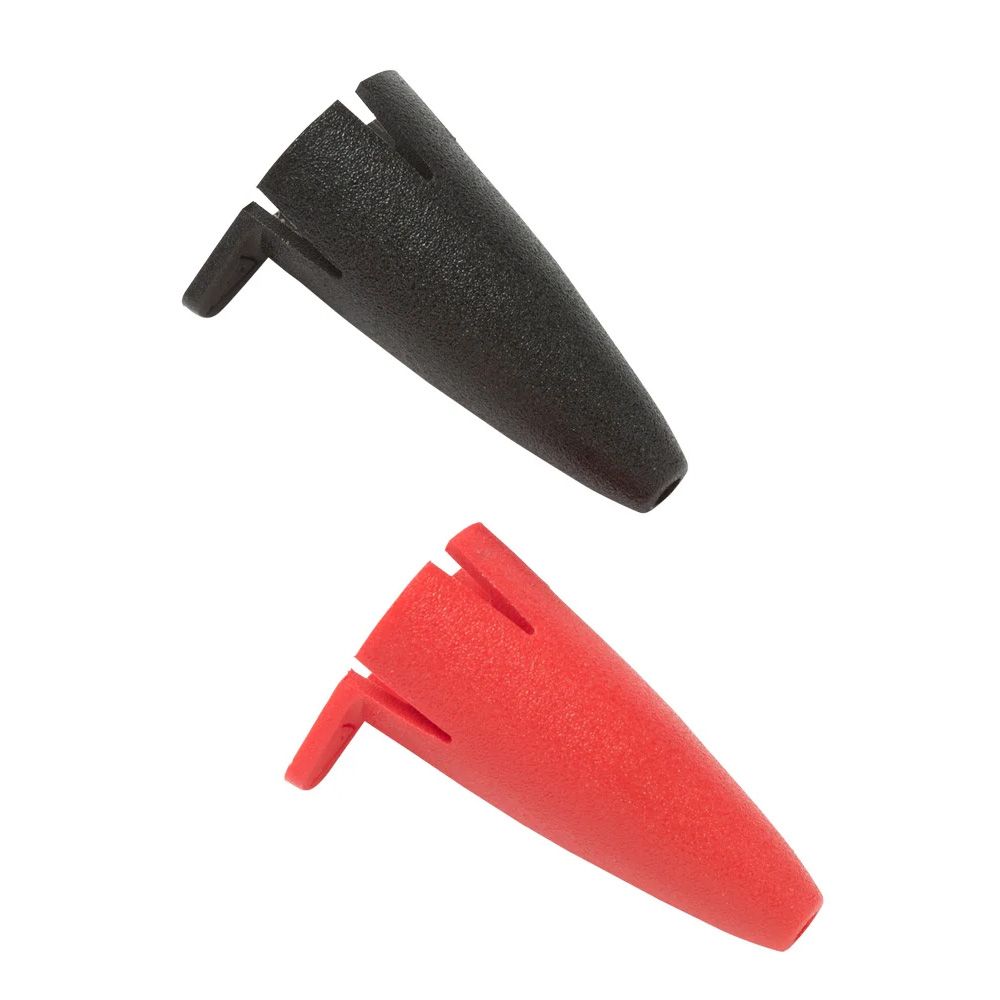

The Fluke TL75 Hard Point™ Test Lead Set offers convenience and safety in electrical measurements. With a single unit combining a test lead and probe, measuring 48 inches (1.22 meters) in length, these PVC-insulated probes ensure secure and accurate measurements. Rated CAT II 1000 V, 10 A, the TL75s provide peace of mind during general-purpose measurements. Additionally, when the protective caps are placed on the leads, the ratings increase to CAT IV 600 V, CAT III 1000 V, enhancing safety in high-voltage environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Fluke |
| Model | TL75-1 |
| Product Type | Multimeter Test Lead Kit |
| Insulation Type | PVC |
| Lead Length | 1.22m |
| Connector Type | 4mm Banana Plug (Shrouded) |
| Safety Category Rating | CAT III 1000V / CAT IV 600V |
| Surge Withstand | Up to 8000V |
| Standards | EN 61010-2-031 |
Key Features
- PVC insulated leads for excellent abrasion resistance and long service life
- 1.22m cable length provides flexibility and ease of movement during testing
- Right-angled connector reduces strain and improves durability
- Comfort-grip probe handles for improved control and user comfort
- Shrouded 4mm banana plugs help prevent accidental contact
- Designed specifically for Fluke multimeters
- Rated CAT III 1000V and CAT IV 600V for industrial environments
Applications
- Electrical installations and fault finding
- Industrial circuit breakers and switchgear
- Distribution wiring and panel testing
- General-purpose voltage, current and resistance measurements
Fluke Multimeter Test Leads and Probes
- Available as individual test leads or probe sets
- Durable connections for reliable and accurate readings
- Insulated wires for enhanced user safety
- Different safety categories available to suit various applications
- High precision and reliability for professional use
What Are Test Leads?
- Connecting cables used with multimeters to measure voltage, current and resistance
- Typically used in pairs to complete an electrical testing circuit
- Allow connection between the multimeter and the test probe or test point
What Are Test Probes?
- Precision tips that connect to test leads and multimeters
- Used to make accurate contact with electrical components or circuits
- Provide stable and reliable readings in professional environments
How to Use a Multimeter
Learn how to safely and correctly measure voltage, current and resistance with a multimeter, including practical advice for industrial and workshop environments.
Frequently Asked Questions
What does CAT III 1000V and CAT IV 600V mean?
CAT III 1000V is suitable for distribution-level installations such as circuit breakers and fixed wiring. CAT IV 600V is rated for service entrances and outdoor conductors. These ratings indicate the level of transient overvoltage the leads can safely withstand.
Are these leads compatible with all multimeters?
These test leads are designed specifically for Fluke multimeters and use standard 4mm shrouded banana plugs. Always confirm compatibility with your specific model before use.
Can these leads be used in industrial environments?
Yes, with a CAT III rating and surge protection up to 8000V, they are suitable for heavy-industrial and commercial electrical testing applications.
Why are shrouded banana plugs important?
Shrouded plugs reduce the risk of accidental contact with live conductors, improving user safety during high-voltage measurements.
What is the advantage of the right-angled connector?
The right-angled connector reduces strain on the cable and multimeter input sockets, helping extend the lifespan of both the leads and your measuring instrument.
User Manual (PDF)
Download Full Manual
Write Your Own Review
| Manuals & Videos | User Manual (PDF)
Download Full Manual
|
|---|---|
| Specifications Description | The TL75 Hard Point™ Test Leads feature comfort grip, PVC-insulated probes, providing ease of use and reliability in various electrical measurements. Designed to meet safety standards and compatible with a wide range of Fluke meters and tools, these test leads are ideal for both professionals and DIY enthusiasts alike. Features:
Safety Design: The TL75 Hard Point™ Test Lead Set is designed for safety, with CAT II 1000 V, 10 A ratings. When equipped with protective caps, the ratings escalate to CAT IV 600 V, CAT III 1000 V, ensuring maximum safety during electrical testing. |
| Package Weight (kg) | 0.100000 |
| Package Length (cm) | 23.00 |
| Package Width (cm) | 10.00 |
| Package Height (cm) | 4.00 |
| Manufacturer | FLUKE |
| Consignment | No |
