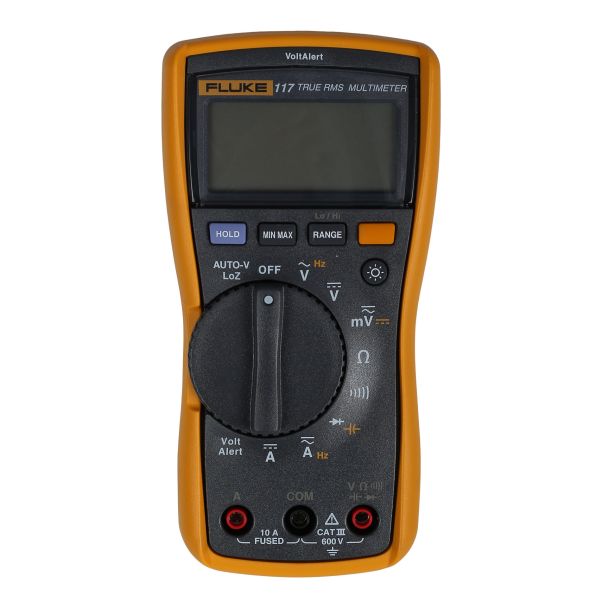

FLUKE 117 True RMS Multimeter

In stock

SKU

TTESDM117

Be the first to review this product

R 8,745.00

FLUKE 117 True RMS Multimeter

In stock

SKU

TTESDM117

Find a Store

A commonly used tool, FLUKE’s digital multimeters are being used regularly to locate issues. As a test tool, each meter has been tested against shock, drops and humidity to ensure quality. Get accurate measurements and reliable performance with this true RMS multimeter.

Product Details

Technical Specifications

Feature	Specification
Maximum Voltage (Terminal to Earth)	600 V
Safety Rating	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600 V
Fuse for A Input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, 4 updates/sec
Bar Graph	33 segments, 32 updates/sec
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-40 °C to +60 °C
Battery Type	9 V Alkaline (IEC 6LR61)
Battery Life	400 hours typical (without backlight)
Size	167 x 84 x 46 mm
Weight	550 g
Warranty	3 Years

Measurement Specifications

Function	Range / Resolution	Accuracy
DC Millivolts	600.0 mV / 0.1 mV	0.5% + 2
DC Volts	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V	0.5% + 2
Auto Volts	600.0 V / 0.1 V	2.0% + 3 (45 Hz – 500 Hz) 4.0% + 3 (500 Hz – 1 kHz)
AC Millivolts (True RMS)	600.0 mV / 0.1 mV	1.0% + 3 (45 Hz – 500 Hz) 2.0% + 3 (500 Hz – 1 kHz)
AC Volts (True RMS)	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V	1.0% + 3 (45 Hz – 500 Hz) 2.0% + 3 (500 Hz – 1 kHz)
Continuity	600 Ω / 1 Ω	Beeper on <20 Ω, off >250 Ω
Resistance	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ	0.9% + 1
Resistance (High Range)	40.00 MΩ / 0.01 MΩ	5% + 2
Diode Test	2.00 V / 0.001 V	0.9% + 2
Capacitance	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF	1.9% + 2
Capacitance (>1000 μF)	>1000 μF	5% + 20%
Lo-Z Capacitance	1 nF to 500 μF	10% + 2 (typical)
AC Amps (True RMS)	6.000 A / 0.001 A 10.00 A / 0.01 A	1.5% + 3
DC Amps	6.000 A / 0.001 A 10.00 A / 0.01 A	1.0% + 3
Frequency (V or A Input)	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz	0.1% + 2

Key Features

Compact, True-RMS digital multimeter for electricians
Integrated non-contact voltage detection (VoltAlert™)
Selectable low-impedance (LoZ) mode to prevent false readings from ghost voltage
600 V CAT III safety rating
6,000 count display with analog bar graph
AC/DC voltage and current measurement up to 10 A
Resistance, continuity, capacitance and frequency measurement

Manuals & Videos	Fluke – User Manual (PDF) Download Full Manual Fluke – Service Manual (PDF) Download Full Manual Fluke 114 – Technical Data (PDF) Download Full Manual Fluke 114 – Calibration Information (PDF) Download Full Manual Fluke – Safety Information (PDF) Download Full Manual Fluke 114 – User Manual (Rev 0106) (PDF) Download Full Manual Fluke 114 – User Manual (Rev 0100) (PDF) Download Full Manual
Specifications Description	Please note: SANAS Calibration cost not included , please request pricing if SANAS Calibration is a requirement.
Package Weight (kg)	0.740000
Package Length (cm)	26.40
Package Width (cm)	15.00
Package Height (cm)	6.20
Manufacturer	FLUKE
Consignment	No
