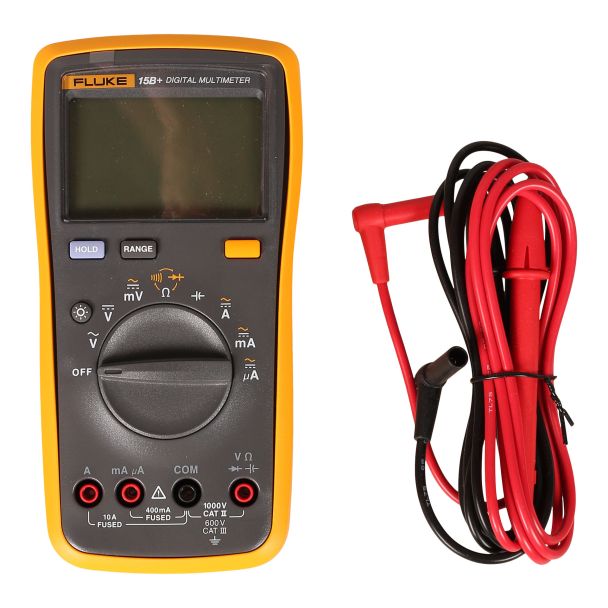

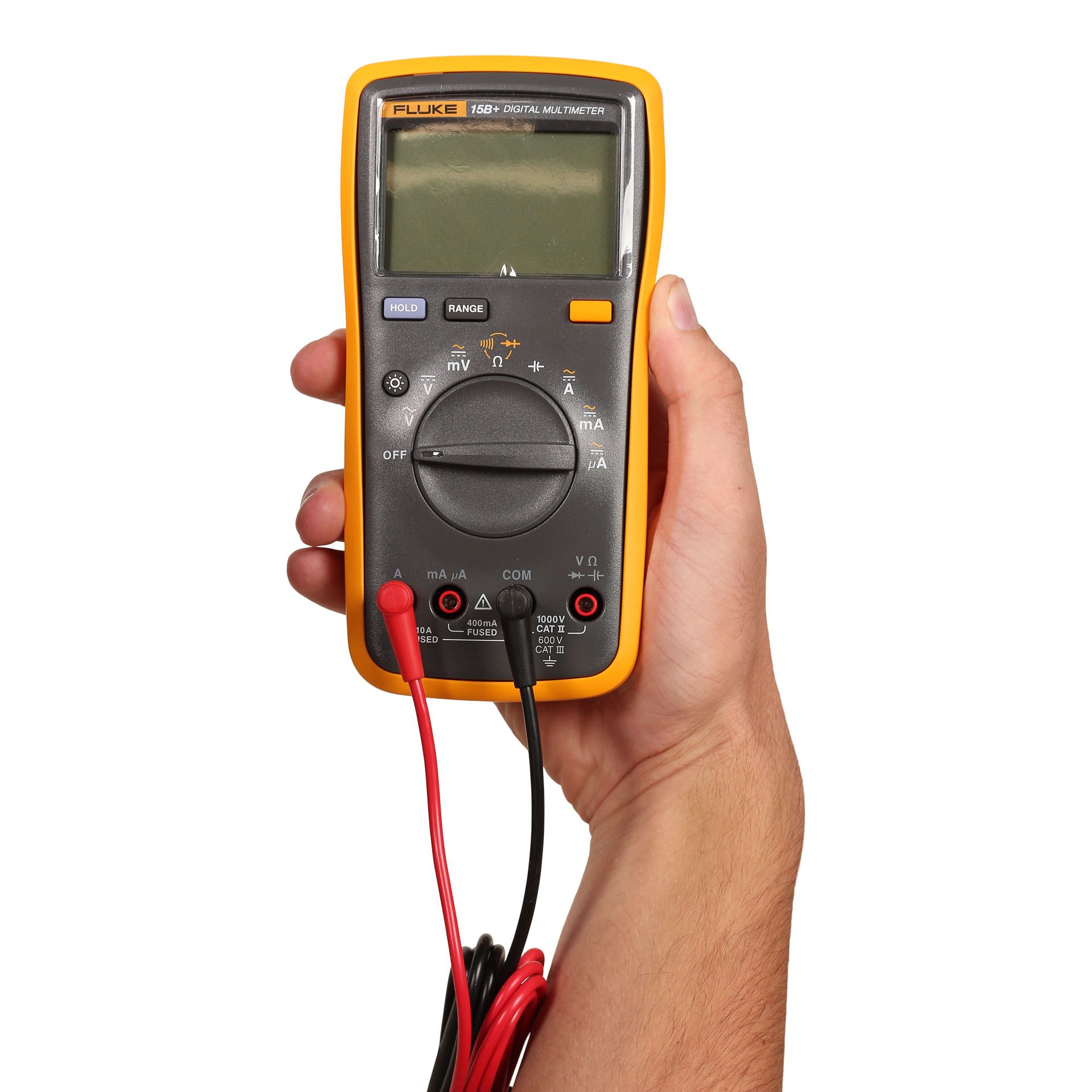

Experience professional precision, durability, and safety with the Fluke 15B+ Digital Multimeter. Designed for portability and ease of use, the rugged 15B+ offers all the essential digital multimeter functions in a tool you can operate comfortably with one hand, even while wearing gloves. It measures AC/DC voltage up to 1000V and current up to 10A, while also providing resistance, capacitance, and frequency testing. Reliable and versatile, the 15B+ is the ideal choice for troubleshooting a broad range of electrical problems.

Function	Range	Resolution	Accuracy
AC Volts (40 Hz to 500 Hz)	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0% + 3
DC Volts	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5% + 3
AC Millivolts	400.0 mV	0.1 mV	3.0% + 3
DC Millivolts	400.0 mV	0.1 mV	1.0% + 10
Diode Test	2.000 V	0.001 V	10%
Resistance (Ohms)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3
Capacitance	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
AC Current (μA)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
AC Current (mA)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
AC Current (A)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
DC Current (μA)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
DC Current (mA)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
DC Current (A)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Backlight	Yes

Function	Overload Protection	Input Impedance (Nominal)	CMRR	NMRR
AC Volts	1000 V	>10 MΩ <100 pF	>60 dB at dc, 50/60 Hz	–
AC Millivolts	400 mV	>1 MΩ <100 pF	>80 dB at 50/60 Hz	–
DC Volts	1000 V	>10 MΩ <100 pF	>100 dB at dc, 50/60 Hz	>60 dB at 50/60 Hz
DC Millivolts	400 mV	>1 MΩ <100 pF	>80 dB at 50/60 Hz	–

Feature	Specification
Maximum Voltage (Terminal to Earth)	1000 V
Display	4000 counts, updates 3/sec
Battery Type	2 x AA (NEDA 15A, IEC LR6)
Battery Life	Minimum 500 hours
Operating Temperature	0 °C to 40 °C
Storage Temperature	-30 °C to 60 °C
Operating Altitude	2000 m
Storage Altitude	12,000 m
Temperature Coefficient	0.1 × (Specified Accuracy) / °C (<18 °C or >28 °C)
Fuse Protection	440 mA, 1000 V Fast Fuse & 11 A, 1000 V Fast Fuse (Fluke specified)
Dimensions (H x W x L)	183 x 91 x 49.5 mm
Weight	455 g
IP Rating	IP40
Safety Rating	IEC 61010-1, IEC61010-2-030 CAT III 600 V, Pollution Degree 2
EMC	IEC 61326-1: Portable EMC Environment, Class A Equipment

Manuals & Videos	Fluke – User Manual (PDF) Download Full Manual Fluke – User Manual (PDF) Download Full Manual Fluke – User Manual (PDF) Download Full Manual Fluke – User Manual (PDF) Download Full Manual Fluke – User Manual (PDF) Download Full Manual Fluke – User Manual (PDF) Download Full Manual
Specifications Description	Please note: SANAS Calibration cost not included , please request pricing if SANAS Calibration is a requirement.
Package Weight (kg)	0.780000
Package Length (cm)	23.60
Package Width (cm)	15.00
Package Height (cm)	6.00
Manufacturer	FLUKE
Consignment	No

FLUKE 15B+ Compact Digital Multimeter
