SATURN 4 EMP 21 (0,56kW) Borehole Pump Kit

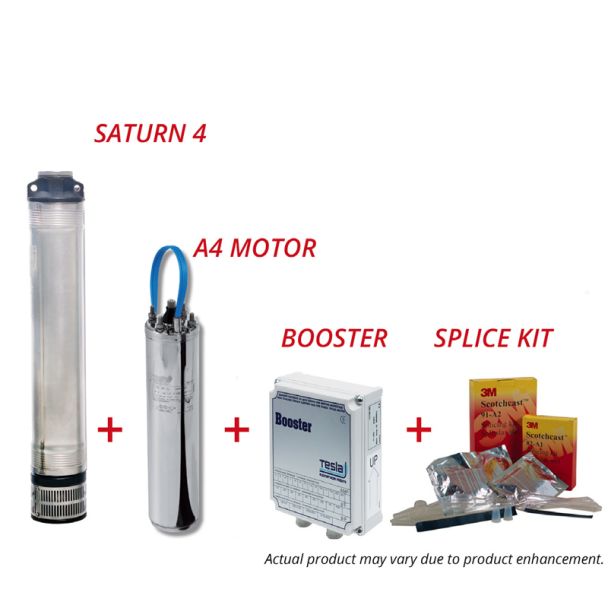

The Kit comprises of a 4" Borehole Pump, 0,56kW Motor, Splice Kit (Pre-Joined) and 220V Control Box.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EMP21 |
| Max Working Head | 88 m |
| Max Flow | 2.2 m³/h (36 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 0.55 kW (550 W) |
| Horse Power | 0.75 Hp |
| Amperage | 4.6 A |
| Motor Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 25 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 0.55 kW |
| Control Panel HP | 0.75 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 25 µF |
Key Features
- Compact borehole pump solution with high head and low flow output
- Ideal for clean water pumping in deep borehole applications
- Energy-efficient 0.55 kW motor for lower power consumption
- Supplied with control box and splice kit for easy installation
- Flow sleeve recommended for open wells
What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor (Continuous Operation)
- 1x Splice Kit (to join the lead out cable to the submersible cable)
- 1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)

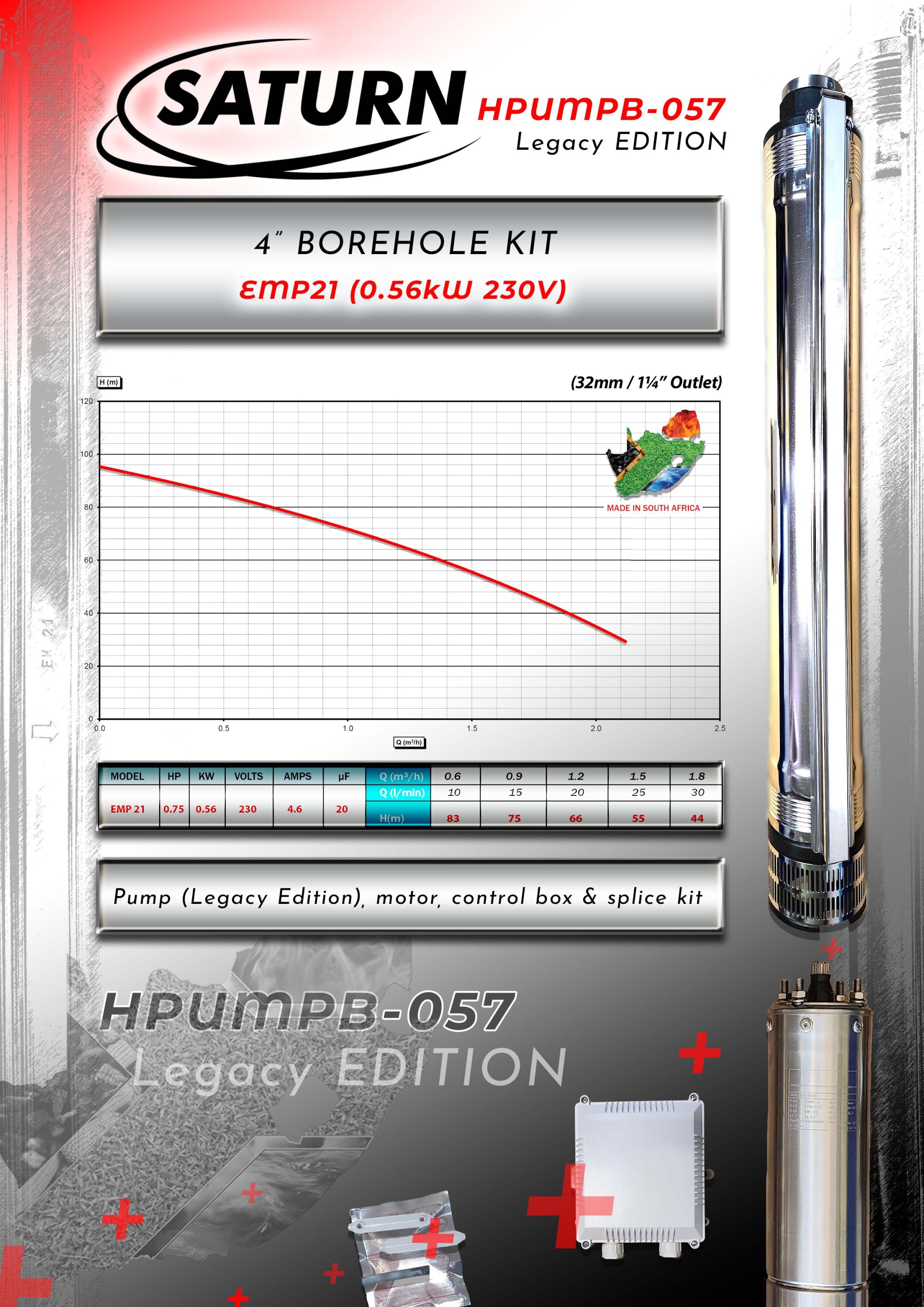

HPUMPB-057 – EMP21 Kit Image
Download Image
Write Your Own Review
| Manuals & Videos | HPUMPB-057 – EMP21 Kit Image
Download Image
|
|---|---|
| Package Length (cm) | 100.00 |
| Package Width (cm) | 32.00 |
| Package Height (cm) | 15.00 |
| Package Weight (kg) | 15.740000 |
| Outlet Size | 3" IN |
| Motor Power | 560 W |
| Max Head size | 95 M |
| Max Flow | 30 L/MIN |
