SATURN 4 EBP 15 (1,12kW) Complete Borehole Pump Kit
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EBP15 |
| Max Working Head | 93 m |
| Max Flow | 5.8 m³/h (96 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 1.12 kW (1120 W) |
| Horse Power | 1.50 Hp |
| Amperage | 8.3 A |
| Motor Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 60 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 1.12 kW |
| Control Panel HP | 1.50 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 60 µF |
Key Features
- Reliable deep borehole pumping solution with high head performance
- Includes essential fittings and electrical components for installation
- Oil-immersed motor design for increased durability
- Supplied with 70m cable and safety rope for secure and complete setup
- Recommended use of flow sleeve in open well installations

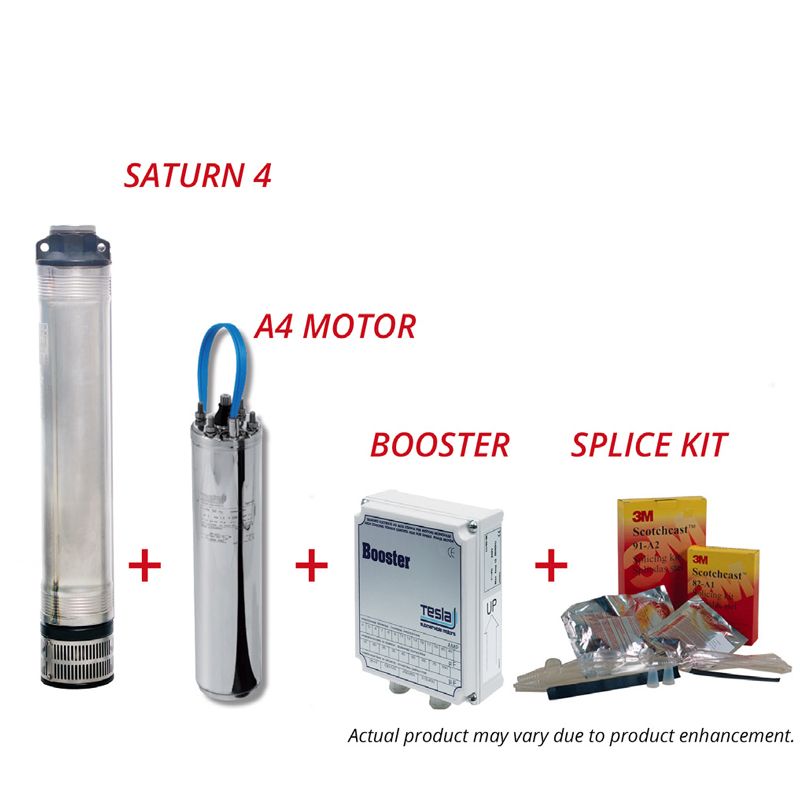

What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor (Continuous Operation)
- 1x Splice Kit (to join the lead out cable to the submersible cable)
- 1x 220V Control Box (Run & Start Capacitor + Overload Protector)
- 1x 32mm Galvanized Base Plate
- 1x 32mm Galvanized M/F Elbow
- 1x 32mm Galvanized Barrel Nipple
- 1x 32mm Brass Gate Valve
- 1x 32mm Nylon Male Insert Adaptor
- 1x Hose Clamp (HCG20)
- 2x 40mm x 1¼" Compression Male Adaptor
- 1x Roll of PTFE Tape
- 70m of 2.5mm² x 4 Core Submersible Cable
- 70m of 12mm Nylon Safety Rope

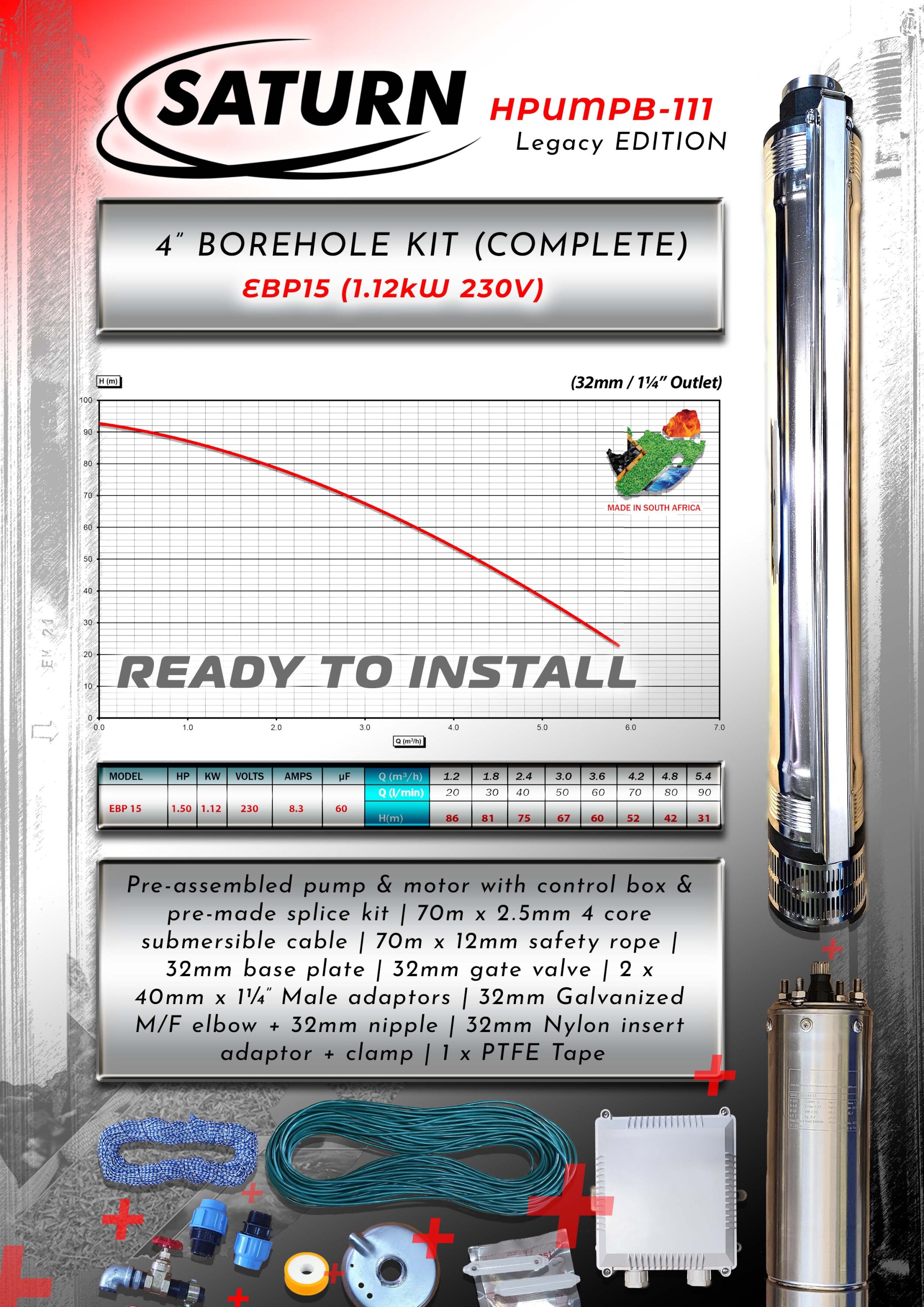

HPUMPB-111 – EBP 15 Complete Kit Image
Download Image
Write Your Own Review
| Manuals & Videos |
HPUMPB-111 – EBP 15 Complete Kit Image
Download Image
|
|---|---|
| Package Length (cm) | 105.00 |
| Package Width (cm) | 25.00 |
| Package Height (cm) | 35.00 |
| Package Weight (kg) | 46.300000 |
| Outlet Size | 3" IN |
| Motor Power | 1.12 KW |
| Max Head size | 86 M |
| Max Flow | 90 L/MIN |
