SATURN 4 EMP 14 (0,37kW) Borehole Pump Kit

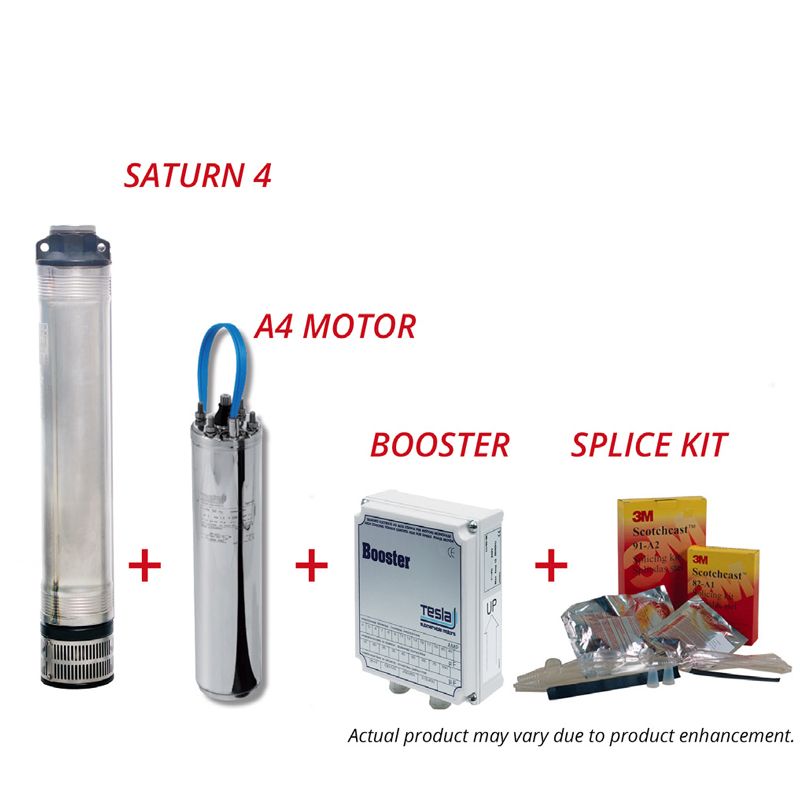

The Kit comprises of a 4" Borehole Pump, 0,37kW Motor, Splice Kit (Pre-Joined) and 220V Control Box.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EMP14 |
| Max Working Head | 62 m |
| Max Flow | 2.2 m³/h (36 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 0.37 kW (370 W) |
| Horse Power | 0.5 Hp |
| Amperage | 3.3 A |
| Motor Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 22 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 0.37 kW |
| Control Panel HP | 0.5 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 22 µF |
Key Features
- Entry-level deep borehole pump ideal for light domestic applications
- Compact and efficient for clean water supply up to 62 m head
- Low power consumption with 0.37 kW oil-immersed motor
- Includes capacitor-run control box and splice kit for convenience
- Flow sleeve recommended for open well use
What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor (Continuous Operation)
- 1x Splice Kit (to join the lead out cable to the submersible cable)
- 1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
