SATURN 4 EBP 15 (1,12kW) Borehole Pump Kit

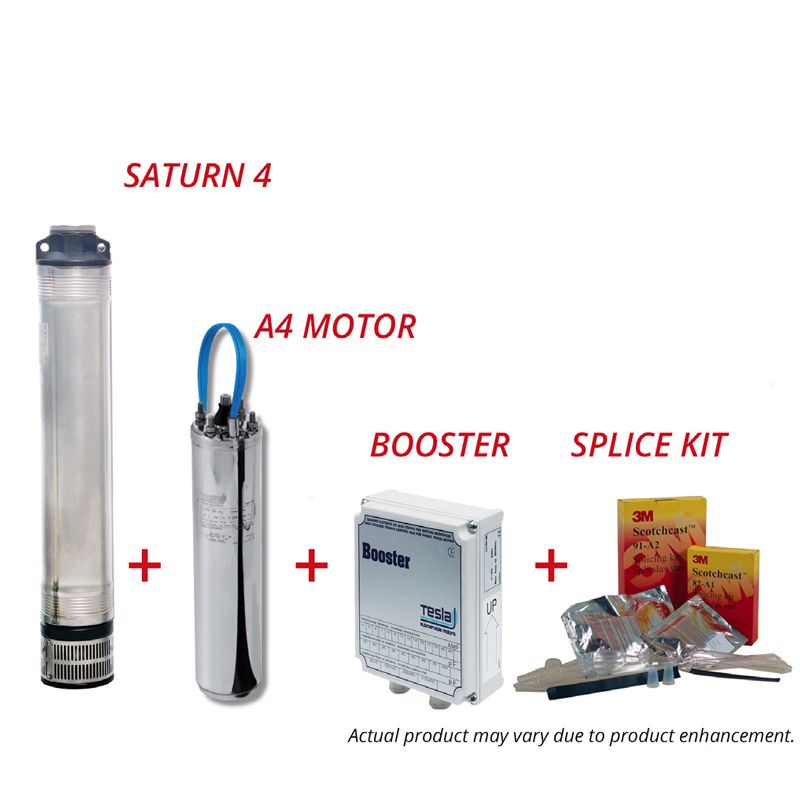

The Kit comprises of a 4" Borehole Pump, 1,12kW Motor, Splice Kit (Pre-Joined) and 220V Control Box.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EBP15 |
| Max Working Head | 93 m |
| Max Flow | 5.8 m³/h (96 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 1.12 kW (1120 W) |
| Horse Power | 1.50 Hp |
| Amperage | 8.3 A |
| Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 60 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 1.12 kW |
| Control Panel HP | 1.50 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 60 µF |
Key Features
- High head design ideal for deep borehole water extraction
- Designed for clean water applications only
- Includes splice kit for cable connection
- Supplied with 220V control box with integrated capacitors and overload protector
- Low maintenance oil-immersed motor for extended lifespan
- Compact and reliable for continuous operation
- Recommended flow sleeve for open well installations
What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor
- 1x Splice Kit
- 1x 220V Control Box with Run & Start Capacitor + Overload Protection

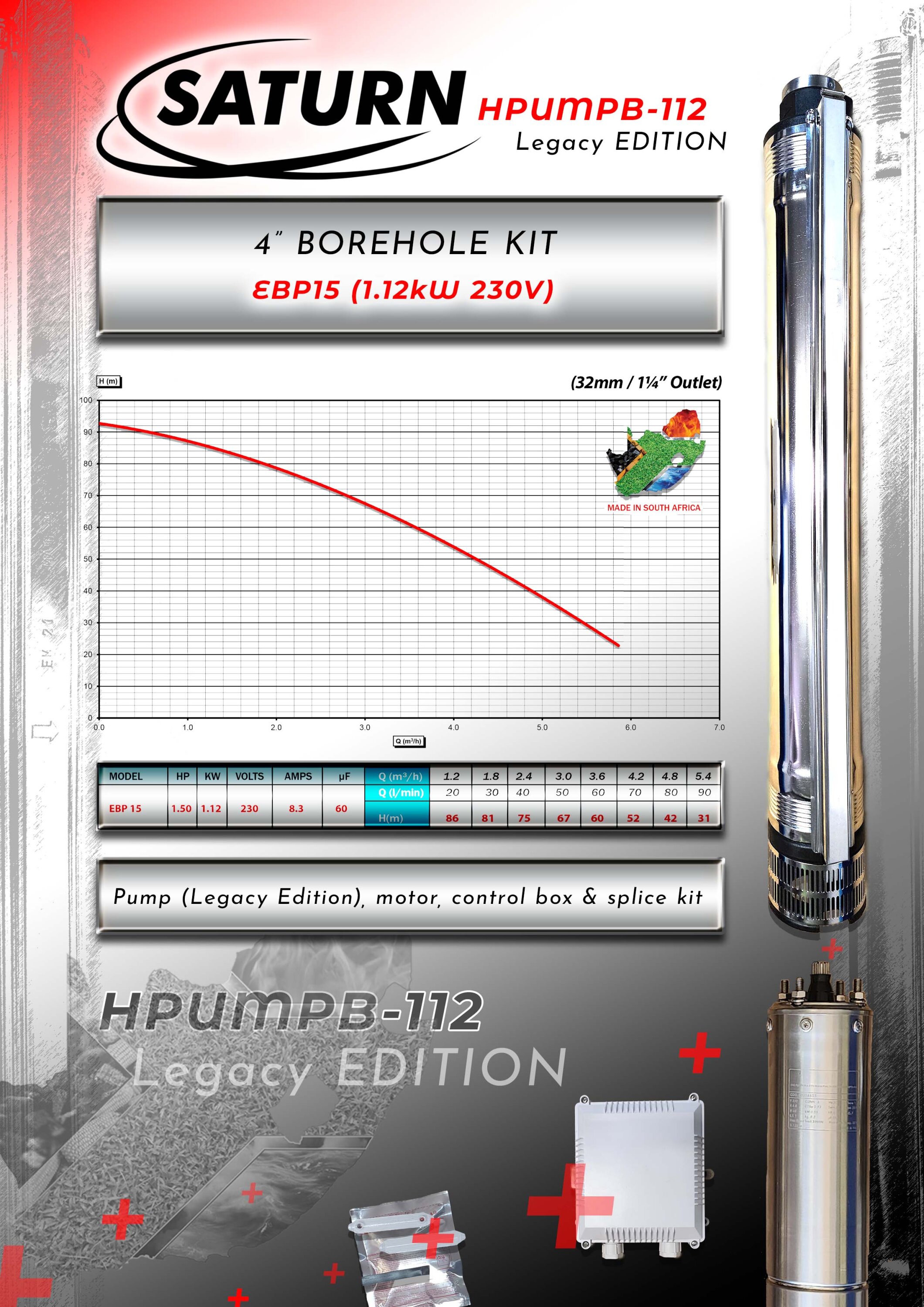

HPUMPB-112 – EBP15 Kit Image
Download Image
Write Your Own Review
| Manuals & Videos | HPUMPB-112 – EBP15 Kit Image
Download Image
|
|---|---|
| Package Length (cm) | 16.80 |
| Package Width (cm) | 30.00 |
| Package Height (cm) | 100.00 |
| Package Weight (kg) | 19.200000 |
