SATURN 4 EAP 17 (0,75kW) Borehole Pump Kit

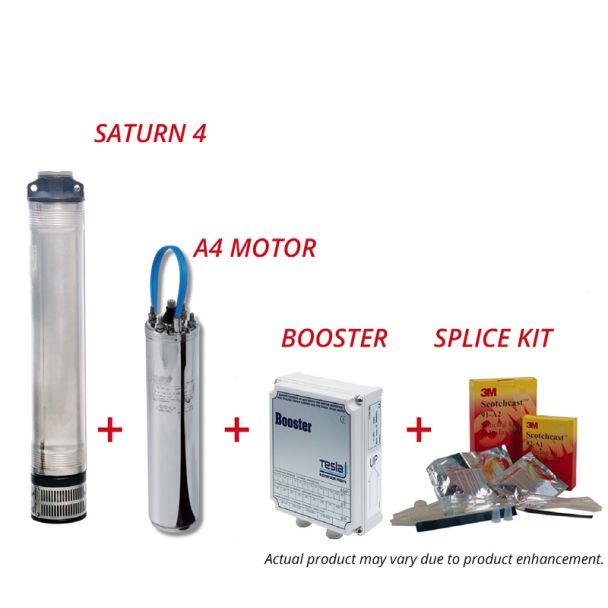

The Kit comprises of a 4" Borehole Pump, 0,75kW Motor, Splice Kit (Pre-Joined) and 220V Control Box.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EAP17 |
| Max Working Head | 91 m |
| Max Flow | 3.5 m³/h (58 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 0.75 kW (750 W) |
| Horse Power | 1.00 Hp |
| Amperage | 5.9 A |
| Motor Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 40 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 0.75 kW |
| Control Panel HP | 1.00 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 40 µF |
Key Features
- Compact and efficient submersible pump for clean water applications
- Designed for deep borehole use with consistent head performance
- Oil-immersed motor ensures smooth operation and long-term reliability
- Comes complete with control panel and necessary connection kit
- Recommended flow sleeve installation for open well use
What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor (Continuous Operation)
- 1x Splice Kit (to join the lead out cable to the submersible cable)
- 1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
"
"

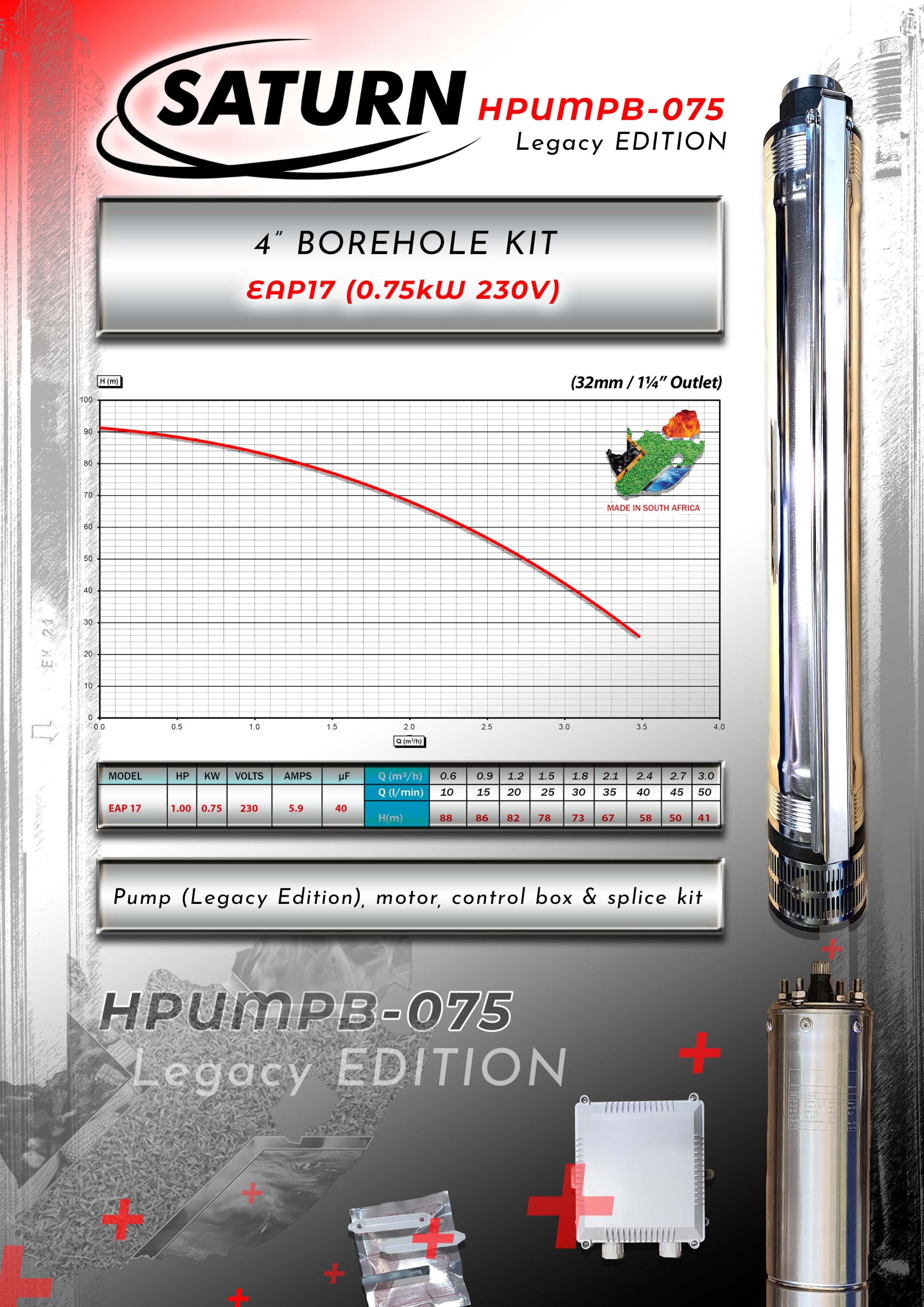

HPUMPB-075 – EAP17 Kit Image
Download Image
Write Your Own Review
| Manuals & Videos | "
HPUMPB-075 – EAP17 Kit Image
Download Image
|
||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package Length (cm) | 27.60 | ||||||||||||||||||||||||||||||||||||||||||||||
| Package Width (cm) | 30.20 | ||||||||||||||||||||||||||||||||||||||||||||||
| Package Height (cm) | 120.00 | ||||||||||||||||||||||||||||||||||||||||||||||
| Package Weight (kg) | 20.660000 | ||||||||||||||||||||||||||||||||||||||||||||||
| Outlet Size | 3" IN | ||||||||||||||||||||||||||||||||||||||||||||||
| Motor Power | 750 W | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Head size | 86 M | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Flow | 50 L/MIN | ||||||||||||||||||||||||||||||||||||||||||||||
| Specifications Description | A4100 MOTOR
4” 230V series high performance water filled submersible motors made of AISI 304 stainless steel ( parts in contact with water).
CONTROL BOX & SLICE KIT
Single-phase control box wit run & Start capacitors
|
||||||||||||||||||||||||||||||||||||||||||||||
