SATURN 4 EAP 17 (0,75kW) Complete Borehole Pump Kit
The Complete Kit comprises of a 4" Borehole Pump, 0,75kW Motor, Splice Kit (Pre-Joined), 220V Control Box, Base Plate; Associated Fittings; 1X Roll of PTFE Tape, 80m 4Core Submersible Cable, 80m Nylon Safety Rope.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EAP17 |
| Max Working Head | 91 m |
| Max Flow | 3.5 m³/h (58 ℓ/min) |
| Max Depth | 100 m |
| Min Water Temperature | 0ºC |
| Max Water Temperature | 35ºC |
| Max Starts Per Hour | 20 |
| Outlet Size | 1¼" |
| Water Quality | Clean Water |
| Motor | 4OC (Oil Immersed) |
| Motor Size | 0.75 kW (750 W) |
| Horse Power | 1.00 Hp |
| Amperage | 5.9 A |
| Motor Voltage | Single Phase (220 V) |
| Motor Speed | Two-pole (2850 RPM) |
| Insulation Class | F |
| IP Rating (Motor) | 68 |
| Capacitor | 40 µF |
| Control Panel Voltage | 220 V |
| Control Panel KW | 0.75 kW |
| Control Panel HP | 1.00 Hp |
| Frequency | 50 Hz |
| IP Rating (Control Panel) | 54 |
| Control Panel Capacitor | 40 µF |
Key Features
- Complete deep borehole pump solution with essential fittings
- Clean water compatibility, ideal for domestic or agricultural use
- Durable oil-immersed motor and reliable control box
- Supplied with 80m submersible cable and safety rope
- Includes gate valve, fittings, and PTFE tape for easy setup
- Flow sleeve recommended for open well installations
What's in the Box
- 1x 4" Multistage Borehole Pump
- 1x Single Phase Asynchronous Motor (Continuous Operation)
- 1x Splice Kit (to join the lead out cable to the submersible cable)
- 1x 220V Control Box (Including Run & Start Capacitor & Manual Overload Protector)
- 1x 32mm Galvanized Base Plate
- 1x 32mm x 25mm Galvanized Reducing Bush
- 1x 25mm Galvanized M/F Elbow
- 1x 25mm Galvanized Barrel Nipple
- 1x 25mm Brass Gate Valve
- 1x 25mm Nylon Male Insert Adaptor
- 1x Hose Clamp (HCG16)
- 2x 32mm x 1¼" Compression Male Adaptor
- 1x Roll of PTFE Tape
- 80m of 2.5mm² x 4 Core Submersible Cable
- 80m of 7mm Nylon Safety Rope

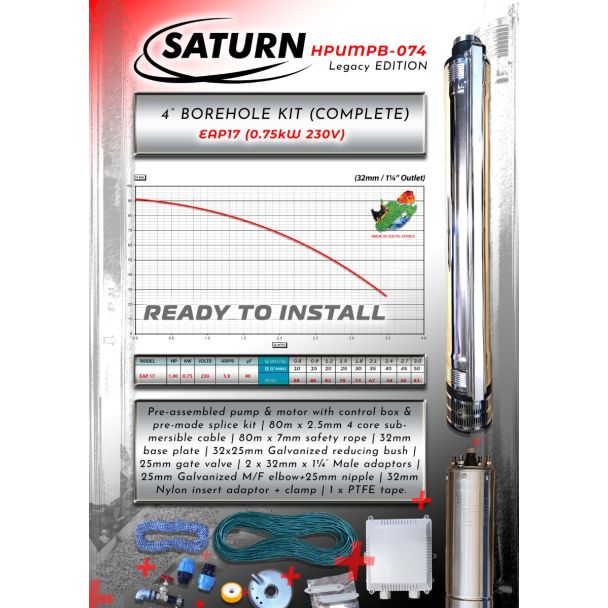

HPUMPB-074 – EAP 17 Complete Kit Image
Download Image
Write Your Own Review
| Manuals & Videos |

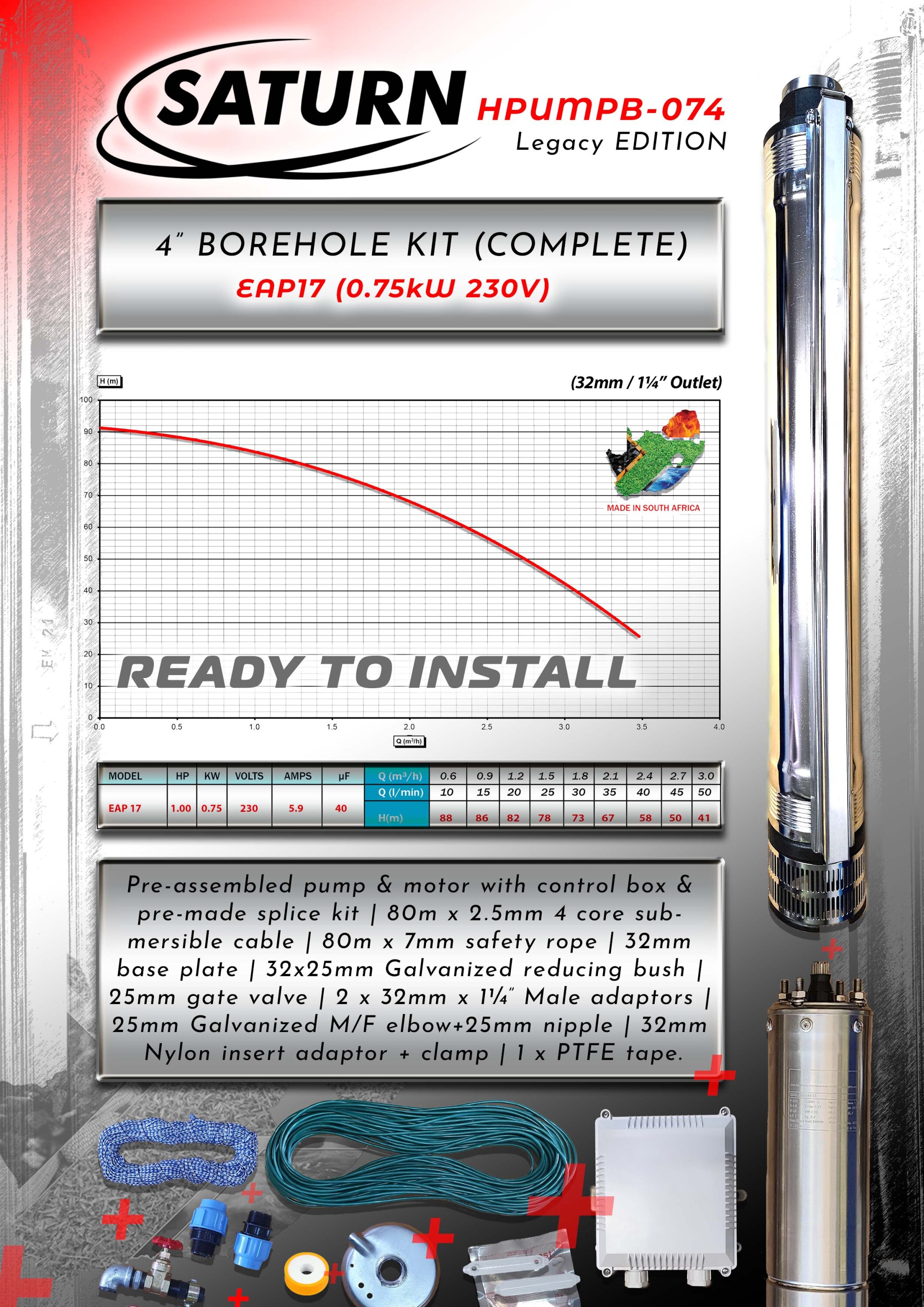

HPUMPB-074 – EAP 17 Complete Kit Image
Download Image
|
|---|---|
| Package Length (cm) | 100.00 |
| Package Width (cm) | 22.00 |
| Package Height (cm) | 43.00 |
| Package Weight (kg) | 18.450000 |
