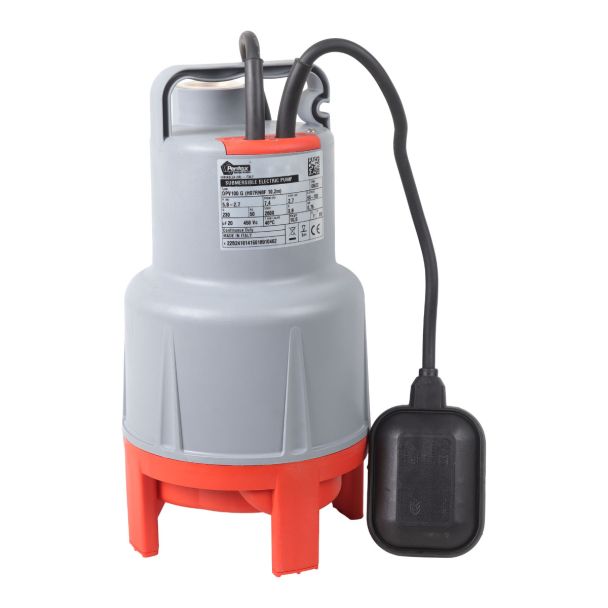

Pentax DPV100G (750W 230V) Submersible Drainage Pump (with Float Switch)
Drainage pump made of corrosion-resistant material for emptying cesspits, cisterns and for gardening. Single-phase version with built-in capacitor, thermal protector and equipped with a float switch.
Technical Specifications
| CONSTRUCTION FEATURES | |
|---|---|
| Pump Body | polypropylene |
| Impeller | noryl® |
| Mechanical Seal | double lip seal on ceramic bush |
| Motor Shaft | stainless steel AISI 416 with ceramic bush |
| Free Passage | Ø max 15mm |
| Max Submergence | 5m |
| Liquid Temperature | 0 - 40 °C |
| Cable | H07 RN8F, 10m |
| G | float switch |
| Maximum Flow Rate | 150 l/m (9m³/h) |
| Maximum Head | 7,4m |
| Water Quality | white water |
| MOTOR | |
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX8 |
| Amperage | 3,8 A |
| Power Output | 750W |
| DIMENSIONS | |
| Outlet Size | 1 1/4" G |

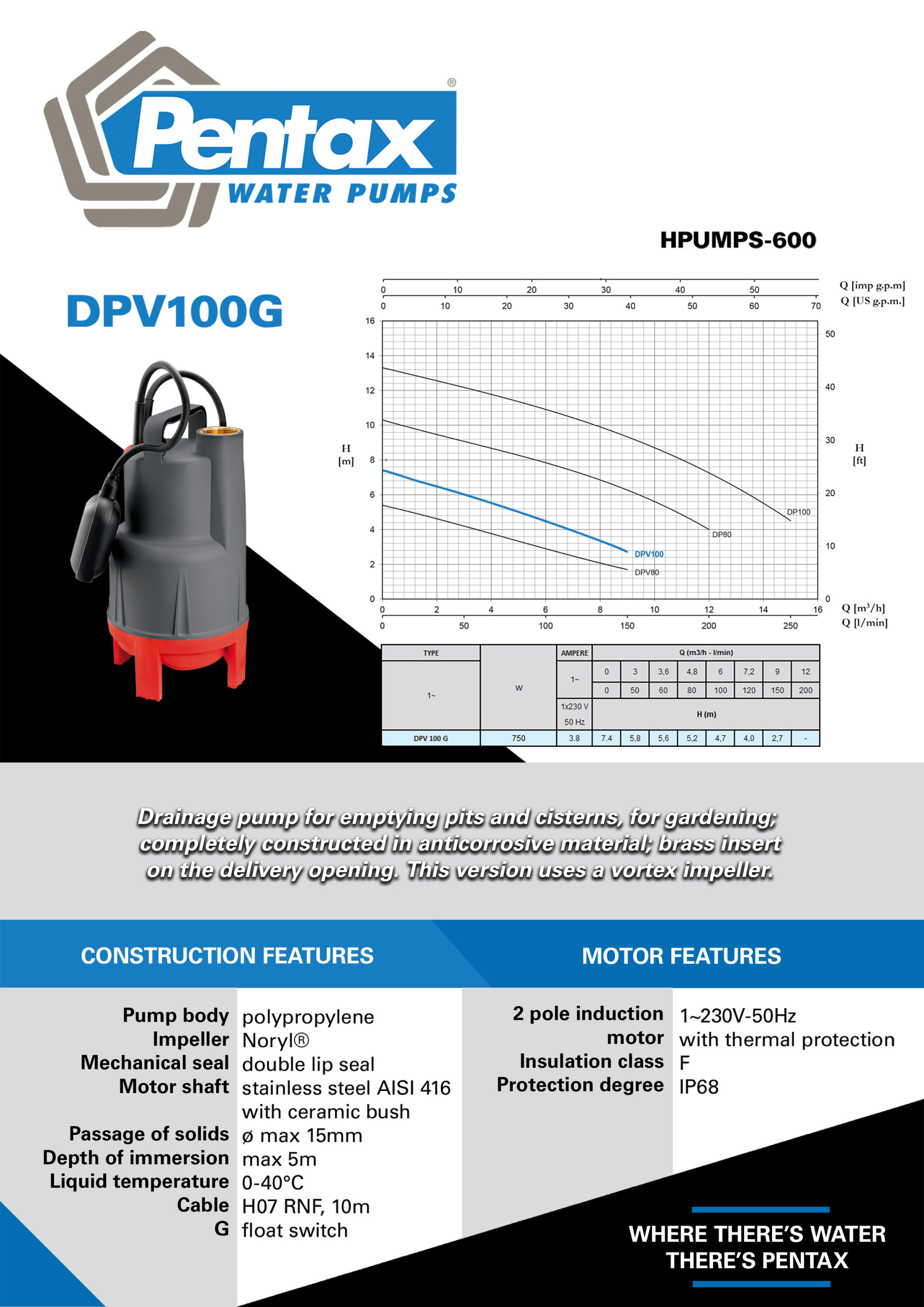

Pentax DPV100G Pump Curve – Image
Download Image
HPUMPS600DPV – 50HZ Specification (PDF)
Download Full PDF
HPUMPS600-DPV – Infographic (PDF)
Download Full Infographic
PENTAX Submersible Manual – Mod105 Rev.06 (PDF)
Download Full Manual
Write Your Own Review
| Manuals & Videos | Pentax DPV100G Pump Curve – Image
Download Image
HPUMPS600DPV – 50HZ Specification (PDF)
Download Full PDF
HPUMPS600-DPV – Infographic (PDF)
Download Full Infographic
PENTAX Submersible Manual – Mod105 Rev.06 (PDF)
Download Full Manual
|
|---|---|
| Package Length (cm) | 26.20 |
| Package Width (cm) | 42.60 |
| Package Height (cm) | 17.00 |
| Package Weight (kg) | 9.640000 |
| Power Supply | 230 V @ 50 HZ |
| Motor Output | 750 W |
| Max. Pump Rate | 15 M3/H |
| Load Speed | 2 800 RPM |
| Cable Length | 0 |
| Amperage | 3.8 A |
| Max. Liquid Temperature | 40° C |
| Model | DPV100G |
