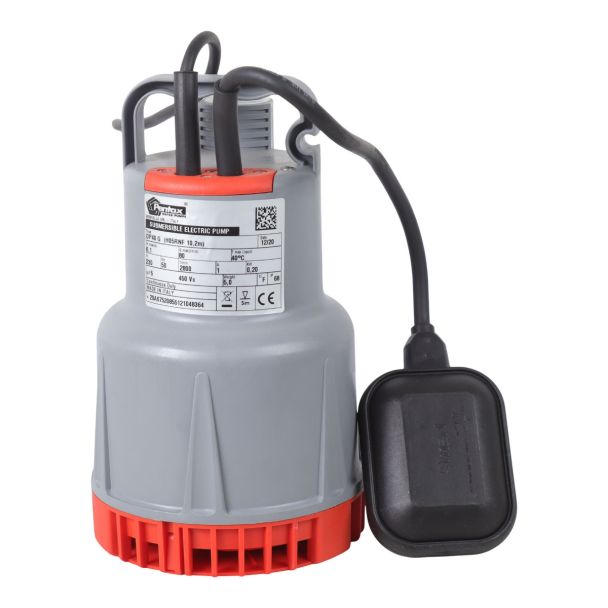

Pentax DP100G (1050W 230V) Submersible Drainage Pump (with Float Switch)
Drainage pump made of corrosion-resistant material for emptying cesspits, cisterns and for gardening. Single-phase version with built-in capacitor, thermal protector and equipped with a float switch.
Technical Specifications
| CONSTRUCTION FEATURES | |
|---|---|
| Pump Body | polypropylene |
| Impeller | noryl® |
| Mechanical Seal | double lip seal on ceramic bush |
| Motor Shaft | stainless steel AISI 416 with ceramic bush |
| Free Passage | Ø max 7mm |
| Max Submergence | 5m |
| Liquid Temperature | 0 - 40 °C |
| Cable | H07 RN8F, 10m |
| G | float switch |
| Maximum Flow Rate | 250 l/m (15m³/h) |
| Maximum Head | 13,3m |
| Water Quality | white water |
| MOTOR | |
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX8 |
| Amperage | 5,1 A |
| Power Output | 1050W |
| DIMENSIONS | |
| Outlet Size | 1 1/4" G |
"
,specifications_description=Pump Specifications
"

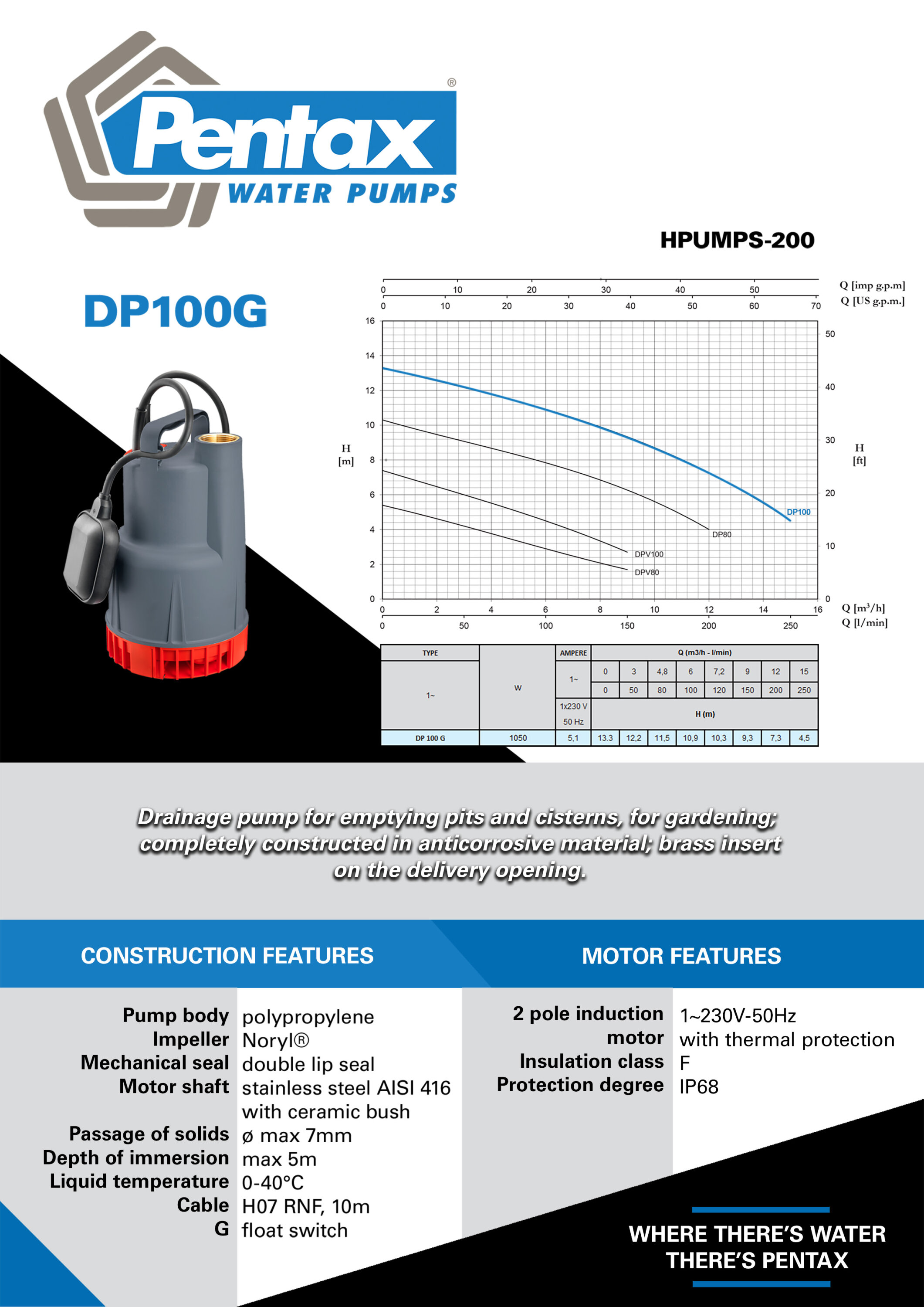

Pentax DP100G Pump Curve – Image
Download Image
200DP – Infographic (PDF)
Download Full Infographic
200DP – 50HZ Specification (PDF)
Download Full PDF
PENTAX Submersible Manual – Mod105 Rev.06 (PDF)
Download Full Manual
Construction Features
| Feature | Specification |
|---|---|
| Pump Body | Polypropylene |
| Impeller | Noryl® |
| Mechanical Seal | Double lip seal on ceramic bush |
| Motor Shaft | Stainless steel AISI 416 with ceramic bush |
| Free Passage | Ø max 7mm |
| Max Submergence | 5m |
| Liquid Temperature | 0 - 40 °C |
| Cable | H07 RN8F, 10m |
| G | Float switch |
| Maximum Flow Rate | 250 l/m (15m³/h) |
| Maximum Head | 13.3m |
| Water Quality | White water |
Motor
| Feature | Specification |
|---|---|
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX8 |
| Amperage | 5.1A |
| Power Output | 1050W |
Dimensions
| Feature | Specification |
|---|---|
| Outlet Size | 1 1/4' G |
Write Your Own Review
| Manuals & Videos | " Pentax DP100G Pump Curve – Image
Download Image
200DP – Infographic (PDF)
Download Full Infographic
200DP – 50HZ Specification (PDF)
Download Full PDF
PENTAX Submersible Manual – Mod105 Rev.06 (PDF)
Download Full Manual
Construction Features
Motor
Dimensions
|
||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package Length (cm) | 25.80 | ||||||||||||||||||||||||||||||||||||||||||
| Package Width (cm) | 18.60 | ||||||||||||||||||||||||||||||||||||||||||
| Package Height (cm) | 43.00 | ||||||||||||||||||||||||||||||||||||||||||
| Package Weight (kg) | 9.920000 | ||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 230 V @ 50 HZ | ||||||||||||||||||||||||||||||||||||||||||
| Motor Output | 1 050 W | ||||||||||||||||||||||||||||||||||||||||||
| Max. Pump Rate | 15 M3/H | ||||||||||||||||||||||||||||||||||||||||||
| Load Speed | 0 | ||||||||||||||||||||||||||||||||||||||||||
| Cable Length | 0 | ||||||||||||||||||||||||||||||||||||||||||
| Amperage | 5.1 A | ||||||||||||||||||||||||||||||||||||||||||
| Max. Liquid Temperature | 0 | ||||||||||||||||||||||||||||||||||||||||||
| Model | DP100G | ||||||||||||||||||||||||||||||||||||||||||
| Specifications Description | Construction Features
Motor
Dimensions
|
||||||||||||||||||||||||||||||||||||||||||
