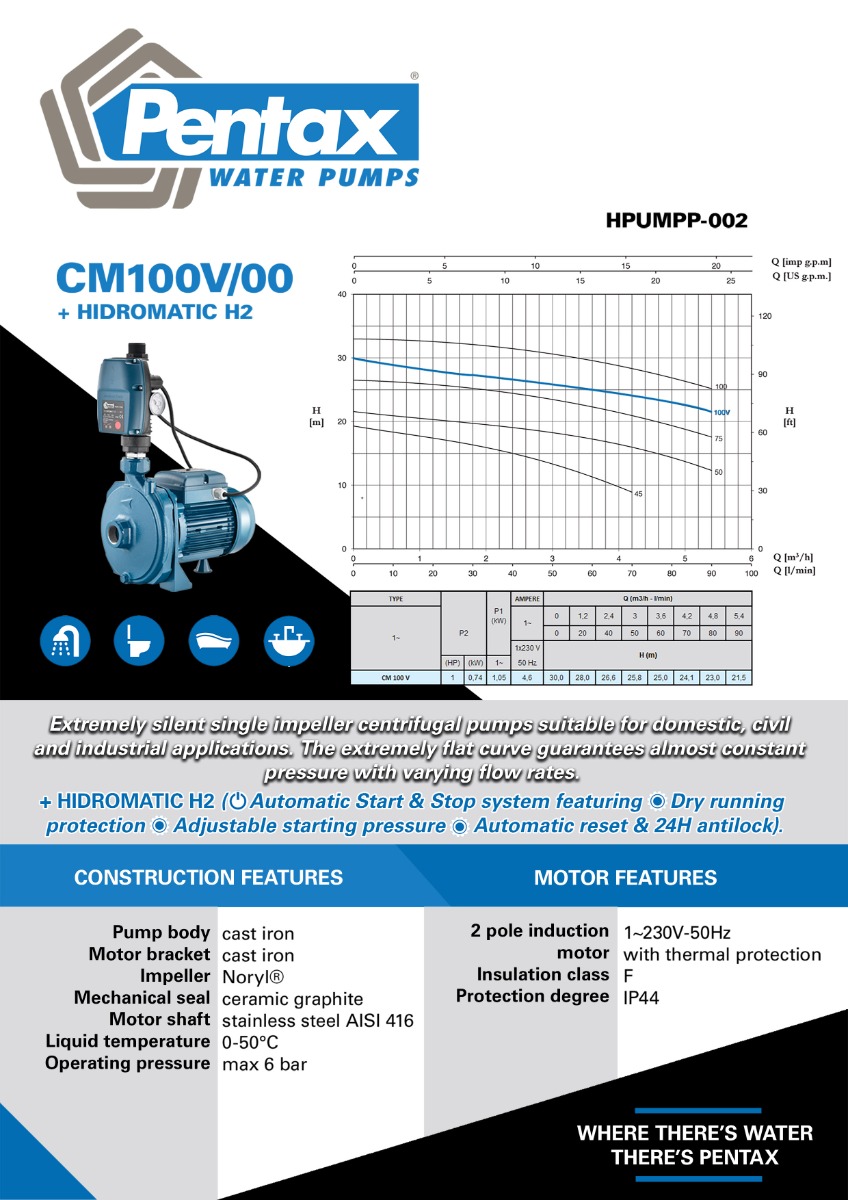

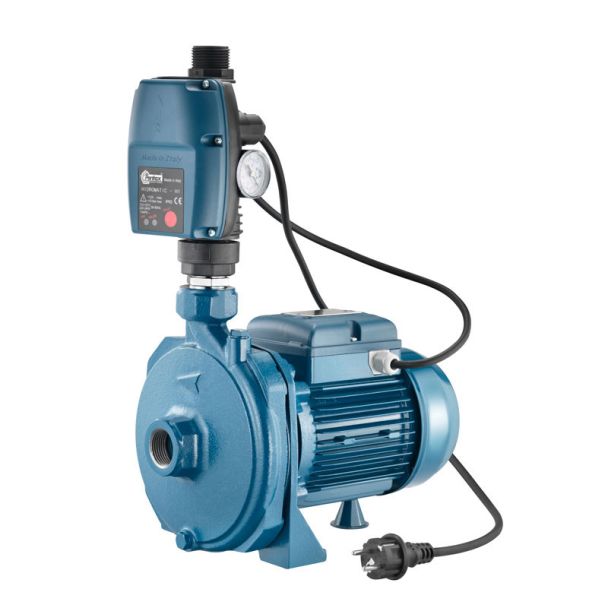

PENTAX CM100V 0.74kW 230V Booster Pump with Hidromatic H2 (Electronic Flow Control)
Single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and industrial applications. The pump guarantees constant pressure at the variation of flow rates. Includes the Pentax Hidromatic H2 flow controller which contains a pressure switch that ensures constant water pressure, provides dry-run protection, automatic reset and overload protection
Technical Specifications
| Feature | Specification |
|---|---|
| Pump Body | Cast iron |
| Motor Bracket | Aluminum |
| Impeller | Noryl® |
| Mechanical Seal | Ceramic-graphite-NBR |
| Motor Shaft | Stainless steel AISI 416 |
| Liquid Temperature | 0 - 50 °C |
| Operating Pressure | Max 6 bar |
| Maximum Flow Rate | 90 L/min (5.4 m³/h) |
| Maximum Head | 30 m |
Motor Specifications
| Feature | Specification |
|---|---|
| Type | Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX4 |
| Amperage | 4.6 A |
| Power Output | 0.74 kW (1 HP) |
Dimensions
| Feature | Specification |
|---|---|
| Inlet Size | 1" G |
| Outlet Size | 1" G |
Hidromatic Specifications
| Feature | Specification |
|---|---|
| Voltage | 110 - 230 V AC ±10% 50/60 Hz |
| Max. Rated Current | 12 A |
| Starting Pressure Range | 1 - 3.5 bar |
| Max Pressure | 10 bar (145 PSI) |
| Protection Degree | IP65 |
| Max. Fluid Temperature | 55°C |
| Max. Ambient Temperature | 55°C |
PENTAX Surface – New Manual (Rev.05-04-2024) (PDF)
Download Full Manual
PENTAX Surface – Old Manual (Rev.3) (PDF)
Download Full Manual
Hidromatic H2 – Product Document (PDF)
Download PDF
CM 50Hz – Product Document (PDF)
Download PDF
Write Your Own Review
| Manuals & Videos | PENTAX Surface – New Manual (Rev.05-04-2024) (PDF)
Download Full Manual
PENTAX Surface – Old Manual (Rev.3) (PDF)
Download Full Manual
Hidromatic H2 – Product Document (PDF)
Download PDF
CM 50Hz – Product Document (PDF)
Download PDF
|
|---|---|
| Package Length (cm) | 24.80 |
| Package Width (cm) | 47.60 |
| Package Height (cm) | 32.40 |
| Package Weight (kg) | 15.000000 |
| Power Supply | 230 V +-10% @ 50 HZ |
| Load Speed | 2 800 RPM |
| Flow Rate | 20-90 L/PM |
| Max Pressure | 10 Bar (146 PSI) |
| Gauge Increments | 0.2 Bar/2 PSI |
| Pump Height | 21.5-28 H/M |
| Pump Amperage | 4.6 A |
| Rated Current | 12 A |
| Power Output | 0.75 KW (1 HP) |
