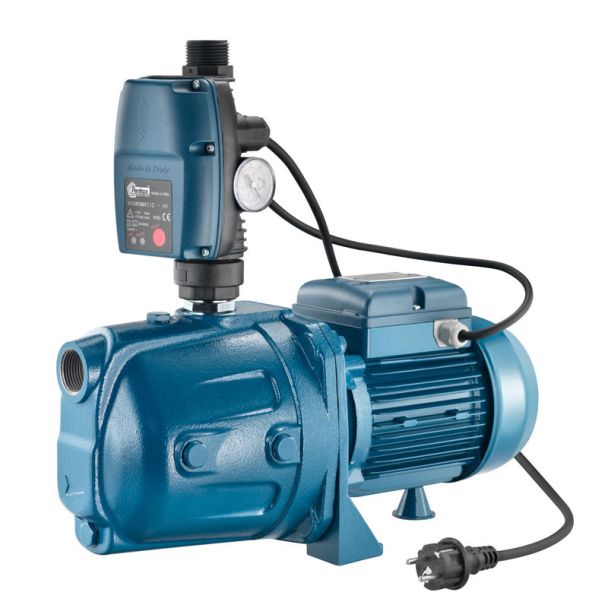

PENTAX CAM100N 0.75kW 230V Booster Pump with Hidromatic H2 (Electronic Flow Control)
Compact self-priming centrifugal pump ideal for small household water systems, even with gas-mixed water. Suitable for use with autoclave tanks, transferring liquids, emptying tanks, and perfect for garden irrigation. Reliable performance for domestic and light-duty applications. Includes the Pentax Hidromatic H2 flow controller which contains a pressure switch that ensures constant water pressure, provides dry-run protection, automatic reset and overload protection.
Technical Specifications
| Feature | Specification |
|---|---|
| Pump Body | Cast iron |
| Motor Bracket | Aluminum |
| Impeller | Noryl® |
| Mechanical Seal | Ceramic-graphite-NBR |
| Motor Shaft | Stainless steel AISI 416 |
| Liquid Temperature | 0 - 50 °C |
| Operating Pressure | Max 6 bar |
| Maximum Flow Rate | 90 L/min (5.4 m³/h) |
| Maximum Head | 30 m |
Motor Specifications
| Feature | Specification |
|---|---|
| Type | Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX4 |
| Amperage | 4.6 A |
| Power Output | 0.74 kW (1 HP) |
Dimensions
| Feature | Specification |
|---|---|
| Inlet Size | 1" G |
| Outlet Size | 1" G |
Hidromatic Specifications
| Feature | Specification |
|---|---|
| Voltage | 110 - 230 V AC ±10% 50/60 Hz |
| Max. Rated Current | 12 A |
| Starting Pressure Range | 1 - 3.5 bar |
| Max Pressure | 10 bar (145 PSI) |
| Protection Degree | IP65 |
| Max. Fluid Temperature | 55°C |
| Max. Ambient Temperature | 55°C |
PENTAX Surface – New Manual (Rev.05-04-2024) (PDF)
Download Full Manual
PENTAX Surface – Old Manual (Rev.3) (PDF)
Download Full Manual
CAM 50Hz – Product Document (PDF)
Download PDF
CAM – Product Infographic (PDF)
Download PDF

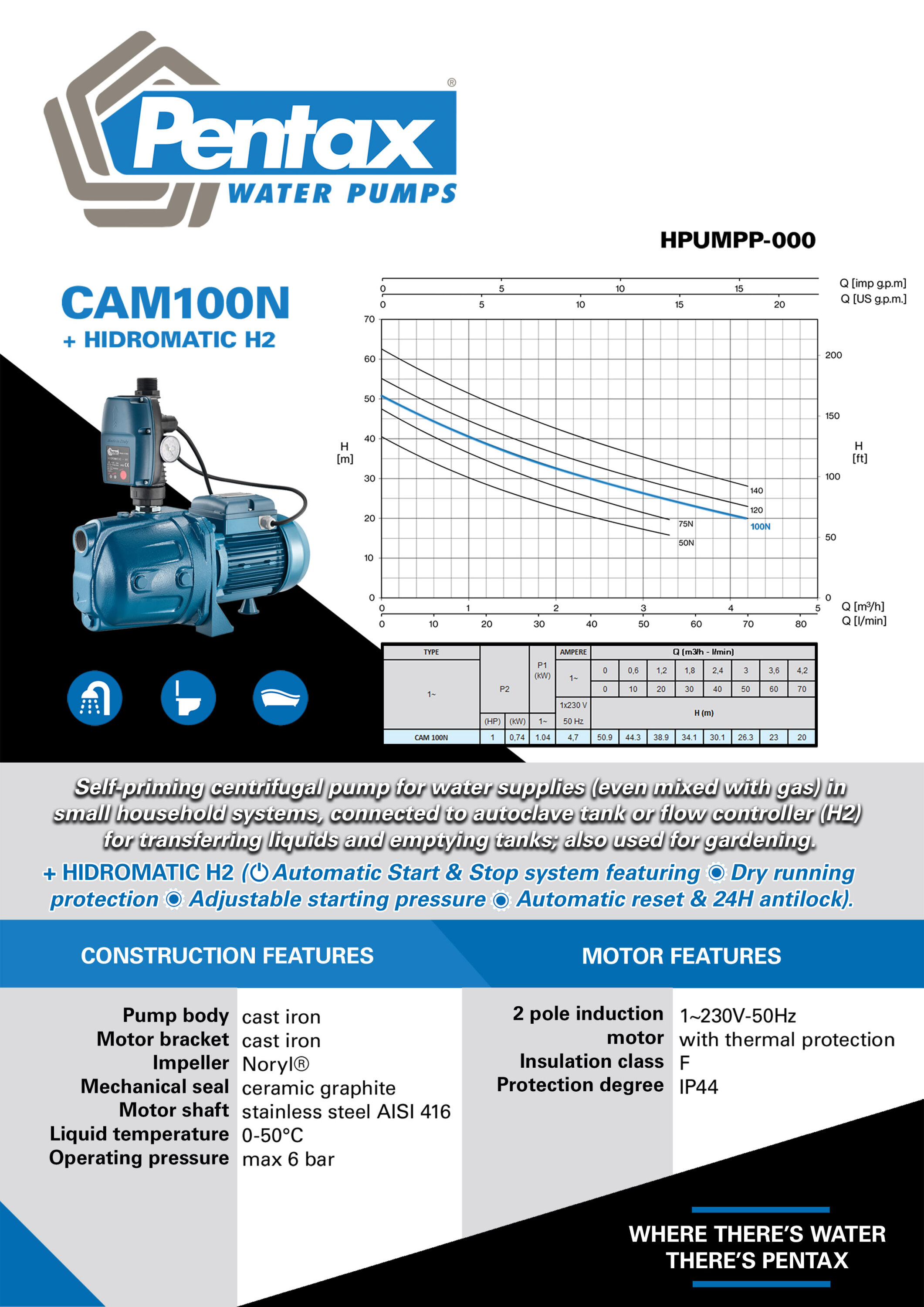

Pentax CAM100N Pump Curve – Image
Download Image
Hidromatic H2 Pressure Control Pump Catalogue (PDF)
Download Full Catalogue
Write Your Own Review
| Manuals & Videos | PENTAX Surface – New Manual (Rev.05-04-2024) (PDF)
Download Full Manual
PENTAX Surface – Old Manual (Rev.3) (PDF)
Download Full Manual
CAM 50Hz – Product Document (PDF)
Download PDF
CAM – Product Infographic (PDF)
Download PDF
Pentax CAM100N Pump Curve – Image
Download Image
Hidromatic H2 Pressure Control Pump Catalogue (PDF)
Download Full Catalogue
|
|---|---|
| Package Length (cm) | 23.00 |
| Package Width (cm) | 60.00 |
| Package Height (cm) | 27.60 |
| Package Weight (kg) | 18.780000 |
| Power Supply | 230 V +-10% @ 50HZ |
| Flow Rate | 10-70 L/PM |
| Max Pressure | 10 Bar (146 PSI) |
| Gauge Increments | Bar/PSI |
| Pump Height | 20-44.3 H/M |
| Pump Amperage | 4.7 A |
| Power Output | 0.75 KW (1 HP) |
