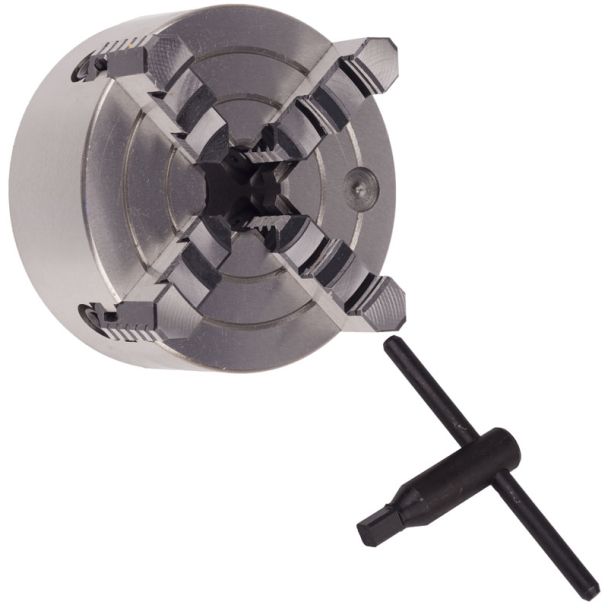

This high-precision chuck is designed for engineering lathes, with each jaw independently adjustable for accurate and secure workpiece holding. Ideal for precision machining and custom setups.
| Feature | Specification |
|---|---|
| Chuck Diameter (D) | 80 MM |
| Registration Recess Diameter (D1) | 55 MM |
| Bolt Circle Diameter (D2) | 66 MM |
| Center Hold (D3) | 22 MM |
| Registration Recess Depth (h) | 3.5 MM |
| Max Height (H) | 56 MM |
| Body Thickness (H1) | 42 MM |
| Number of Bolts | 4 Bolts |
| Size of Bolts | — |
| RPM | 4 800 RPM |
| Handle Length | 15 MM |
| Package Length (cm) | 15.20 |
|---|---|
| Package Width (cm) | 13.80 |
| Package Height (cm) | 15.00 |
| Package Weight (kg) | 1.780000 |
| Chuck Diameter (D) | 80 MM |
| Registration Recess Diameter (D1) | 55 MM |
| Bolt Circle Diameter (D2) | 66 MM |
| Registration Recess Depth (h) | 3.5 MM |
| Max Height (H) | 56 MM |
| Body Thickness (H1) | 42 MM |
| RPM | 4 800 RPM |
| Handle Length | 15 MM |
