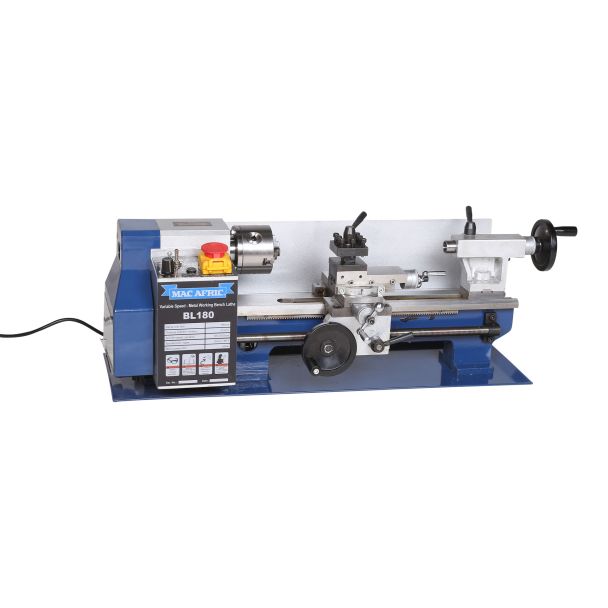

MAC AFRIC BL180 Mini Metal Working Bench Lathe
Introducing the MAC AFRIC BL180 Mini Metal Working Bench Lathe, a top-quality machine designed for model engineers and small job works. With features like a variable spindle speed controlled DC motor and high spindle speed range, this lathe is ideal for both prestigious shops and DIY enthusiasts.
Technical Specifications
| Feature | Specification |
|---|---|
| Power Output | 0.4 KW (1/2 HP) |
| Voltage | 230 V (Single Phase) |
| Frequency | 50/60 HZ |
| Motor Speed | 4 500 RPM |
| Power Transfer | V - Belt |
| Bearings | Shielded and Lubricated |
| Max. Swing Over Bed | 180 MM |
| Max. Swing Over Cross Slide | 105 MM |
| Max. Swing Over Gap | NA |
| Distance Between Centres | 310 MM |
| Width Of Bed | 180 MM |
| Spindle Bore | 20 MM |
| Taper of Spindle Bore | MT 3 |
| Range of Spindle Speeds | 200 - 1 150 RPM (Low), 460 - 2 500 RPM (High) |
| Diameter of Tailstock Quill | NA |
| Max. Travel of Tailstock Quill | 40 MM |
| Taper of Tail - Stock | MT 2 |
| Metric Threads Can be Cut | 0.4 - 2 MM (10 Sizes) |
| Imperial Threads Can be Cut | 12 - 48 TPI (10 Sizes) |
Videos
Write Your Own Review
| Package Weight (kg) | 37.000000 |
|---|---|
| Package Length (cm) | 75.50 |
| Package Width (cm) | 31.00 |
| Package Height (cm) | 33.50 |
