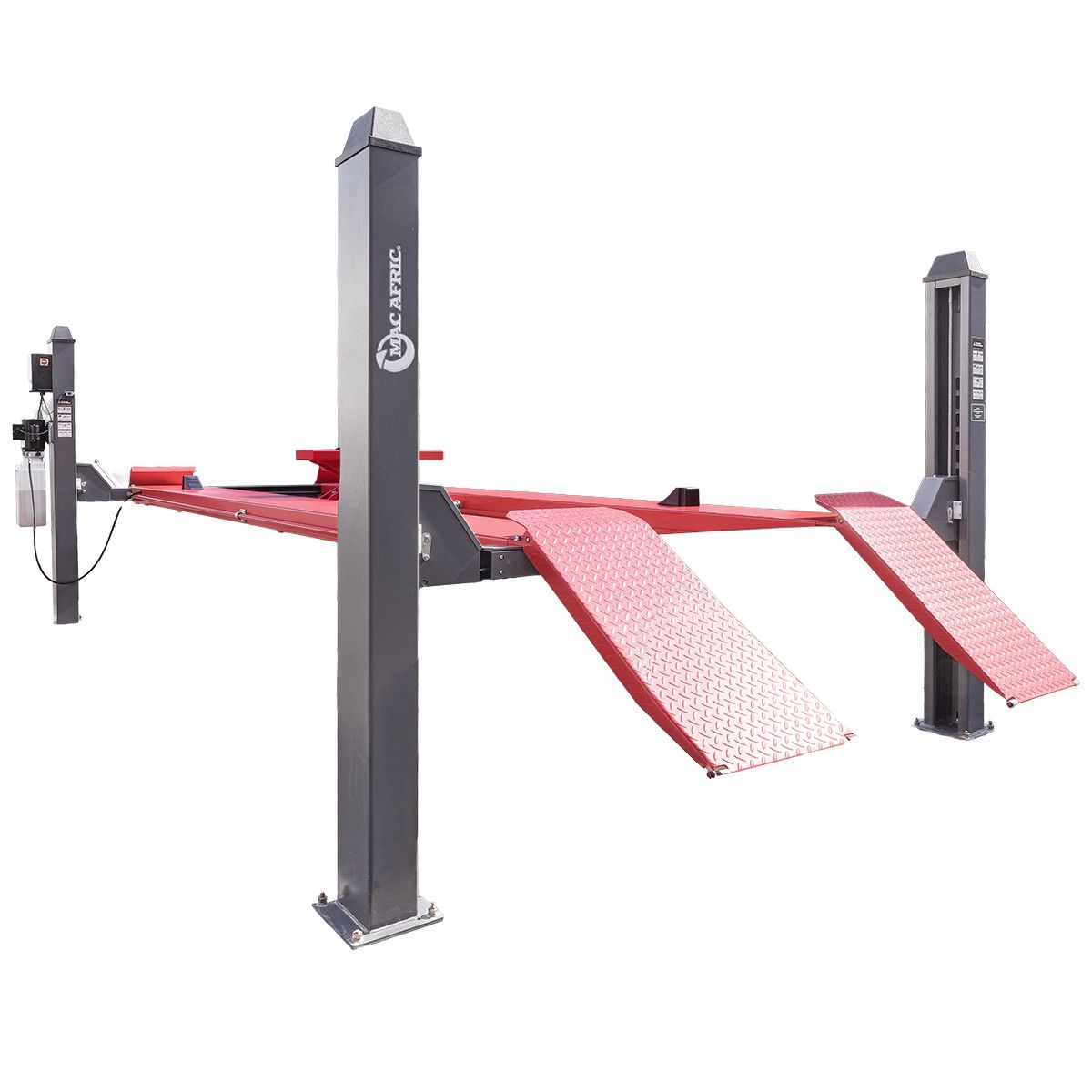

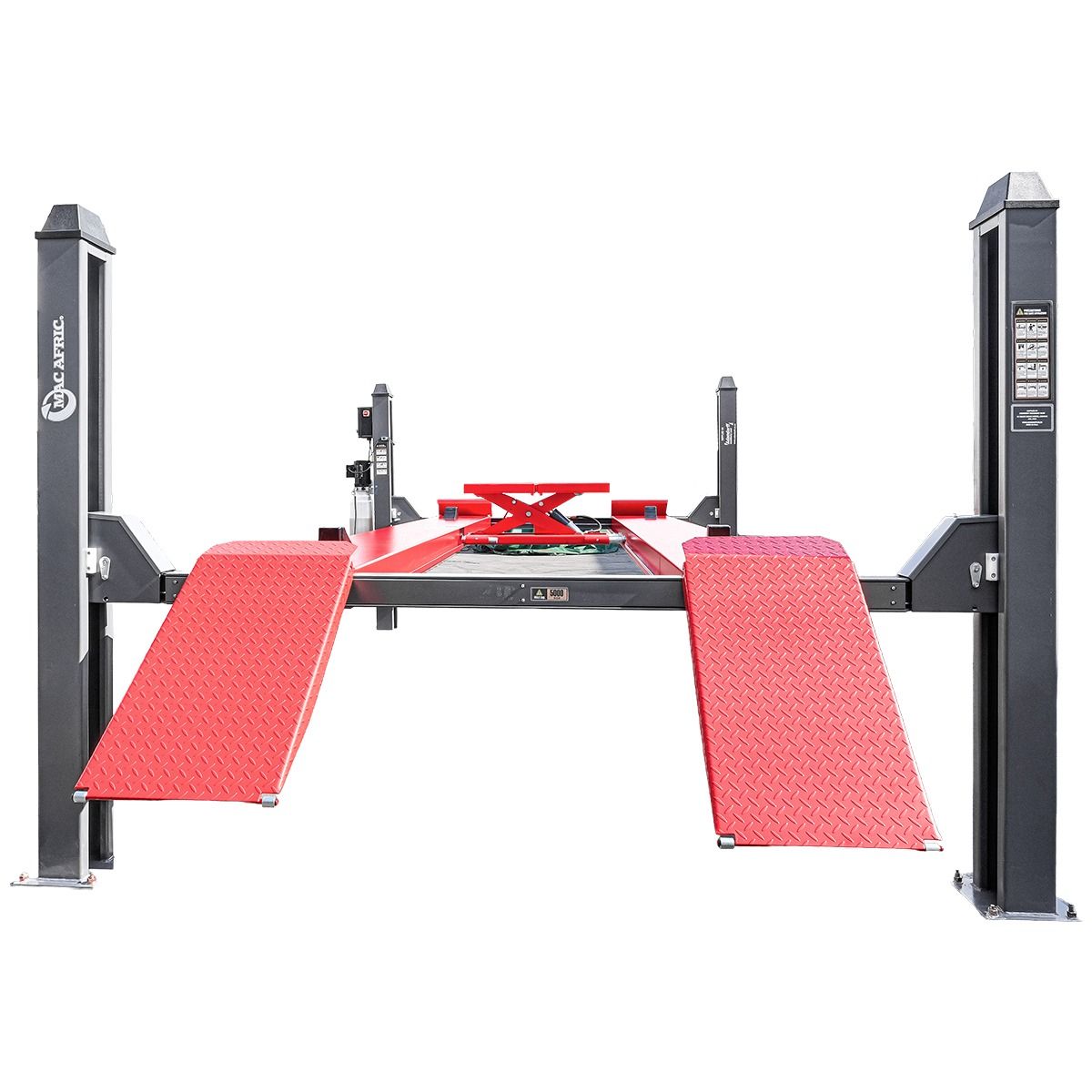

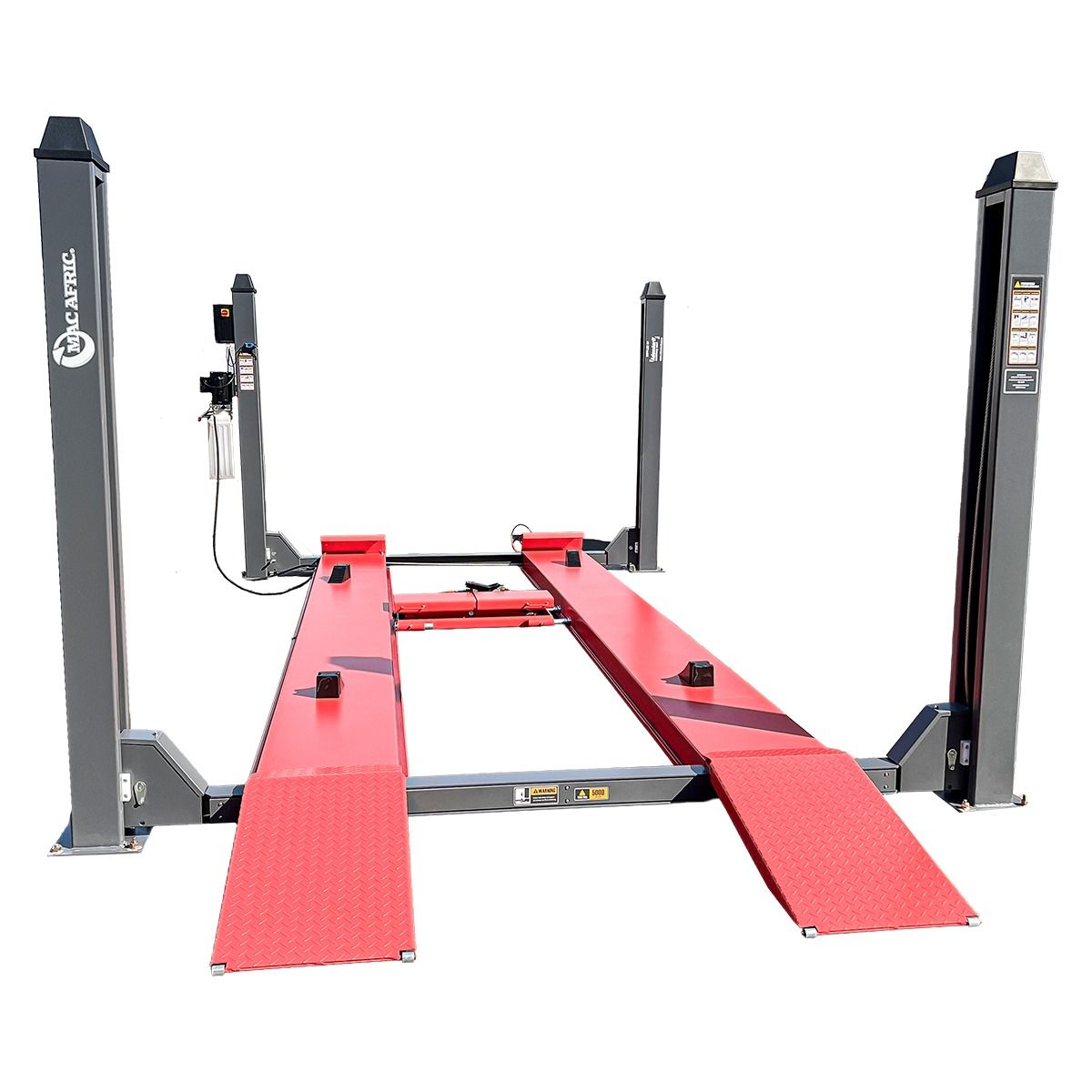

MAC AFRIC 5 Ton Four Post Lift

Technical Specifications

Key Features

• Heavy-duty 5-ton four-post platform lift designed for vehicle servicing and workshop use.
• Stable four-column design ensures safe lifting of cars, bakkies, and light commercial vehicles.
• Fast lifting and lowering cycle of under 75 seconds for improved workshop productivity.
• Large platform size accommodates a wide range of vehicle wheelbases.
• Optional 2.5-ton rolling jack allows easy wheel and suspension work.
• Integrated ramps for smooth vehicle loading onto the platform.
• Heavy-duty steel construction designed for durability in busy workshops.
• Safety lock system and steel cable mechanism for stable lifting and lowering.

Main Structural Components

• Main column
• Auxiliary column
• Control box
• Power unit
• Column cap
• Ramp
• Main crossbeam
• Auxiliary crossbeam
• Main platform
• Auxiliary platform
• Rolling jack (optional)
• Wheel stop plate

Safety Features

• Steel cable lifting system for reliable and balanced lifting.
• Rope break protection mechanism to enhance operational safety.
• Mechanical safety locks with lock teeth for secure vehicle support.
• Main safety locking system integrated into the column.
• Manual unlock handle for controlled lowering.

Troubleshooting Guide

• Abnormal noise: Check for cylinder friction marks or internal obstructions and apply lubricating oil if necessary.
• Motor does not turn and lift does not rise: Inspect wiring connections, check for bad contacts, and verify the limit switch connection.
• Motor runs but lift does not rise: Inspect motor rotation direction, hydraulic oil level, gear pump condition, and suction pipe tightness.
• Slow unloading after lifting: Check oil cylinder seals, overflow valve condition, and ensure the steel cable is properly adjusted.
• Slow lifting: Ensure proper hydraulic oil levels, remove air from the system, and inspect cylinder lubrication.
• Slow lowering: Inspect throttle valve and ensure hydraulic oil is clean and free of obstructions.
• Rough cable edge: Replace steel cable if damage occurred due to lack of lubrication during installation.
