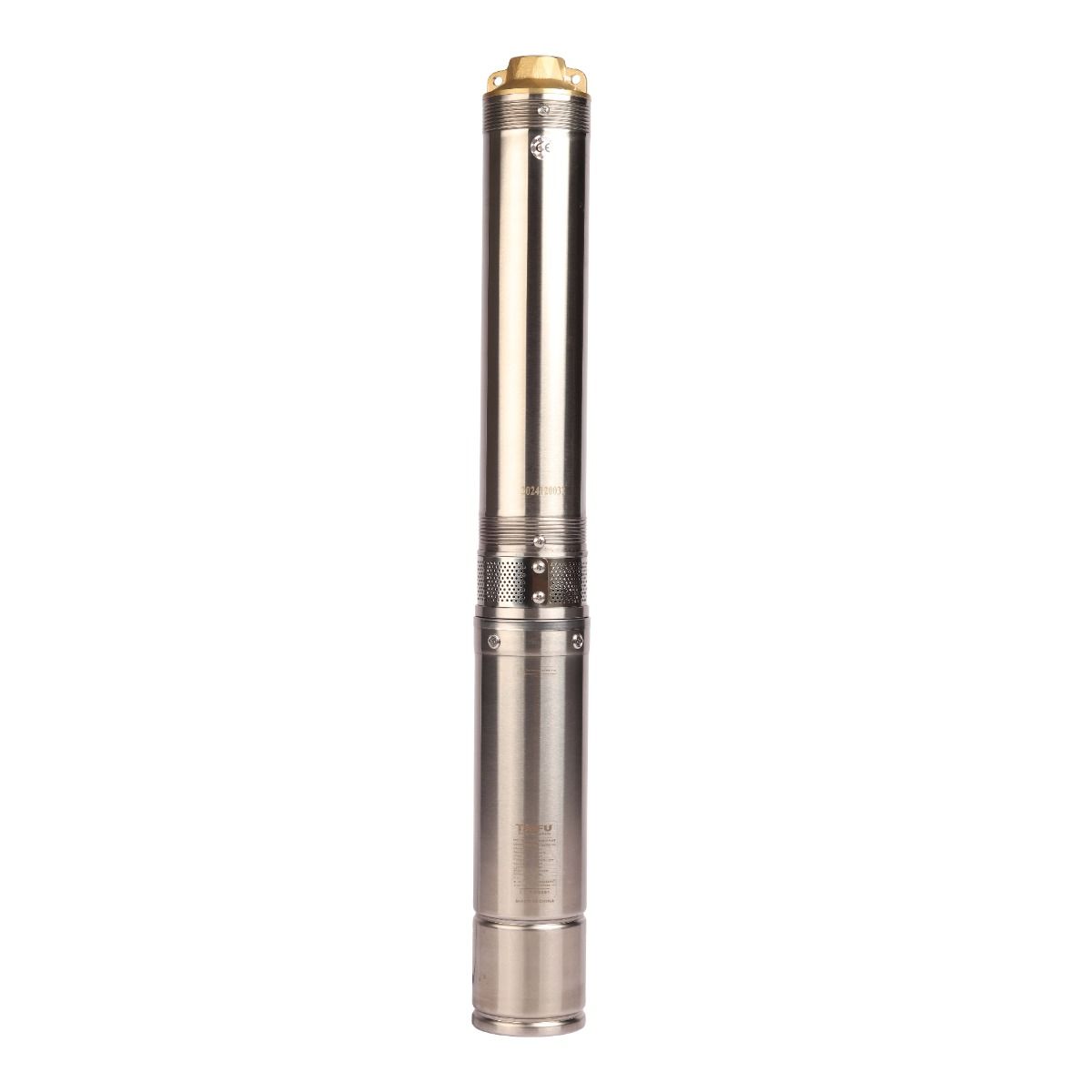

Efficient and reliable, the Taifu 4 inch borehole pump delivers 0.75KW of power with a maximum head of 73 metres and a flow rate of 6.7 m³/h. Supplied with a control box and compatible with 1.25 inch outlets, it is ideal for deep well water extraction.
| Feature | Specification |
|---|---|
| Power | 0.75 KW |
| Horsepower | 1 HP |
| Max Head | 73 m |
| Max Flow Rate | 3 m³/h @ 50 HZ |
| Voltage | 230 V @ 50 Hz |
| Amperage | 5.8 A |
| RPM | 2 850 RPM |
| Outlet Size | 1.25" IN |
| Includes | Controller |
| Feature | Specification |
|---|---|
| Voltage | 220 VDC |
| Current | 10 A |
| Max Current | 12 A |
| Open Circuit Voltage Input | 60 V - 430 V |
| Max Open Circuit Voltage | 430 V |
| Overvoltage Circuit Protection Value | 430 V ±5% |
| Overvoltage Restoration Value | 410 V ±5% |
| Min Input Voltage | 60 V |
| Undervoltage Protection Value | 60 V ±5% |
| Undervoltage Restoration Value | 70 V ±5% |
| Max Power | 2200 W ±5% |
| Package Length (cm) | 107,3 |
|---|---|
| Manufacturer | Taifu |
| Package Width (cm) | 15 |
| Package Height (cm) | 21 |
| Package Weight (kg) | 13.740000 |
