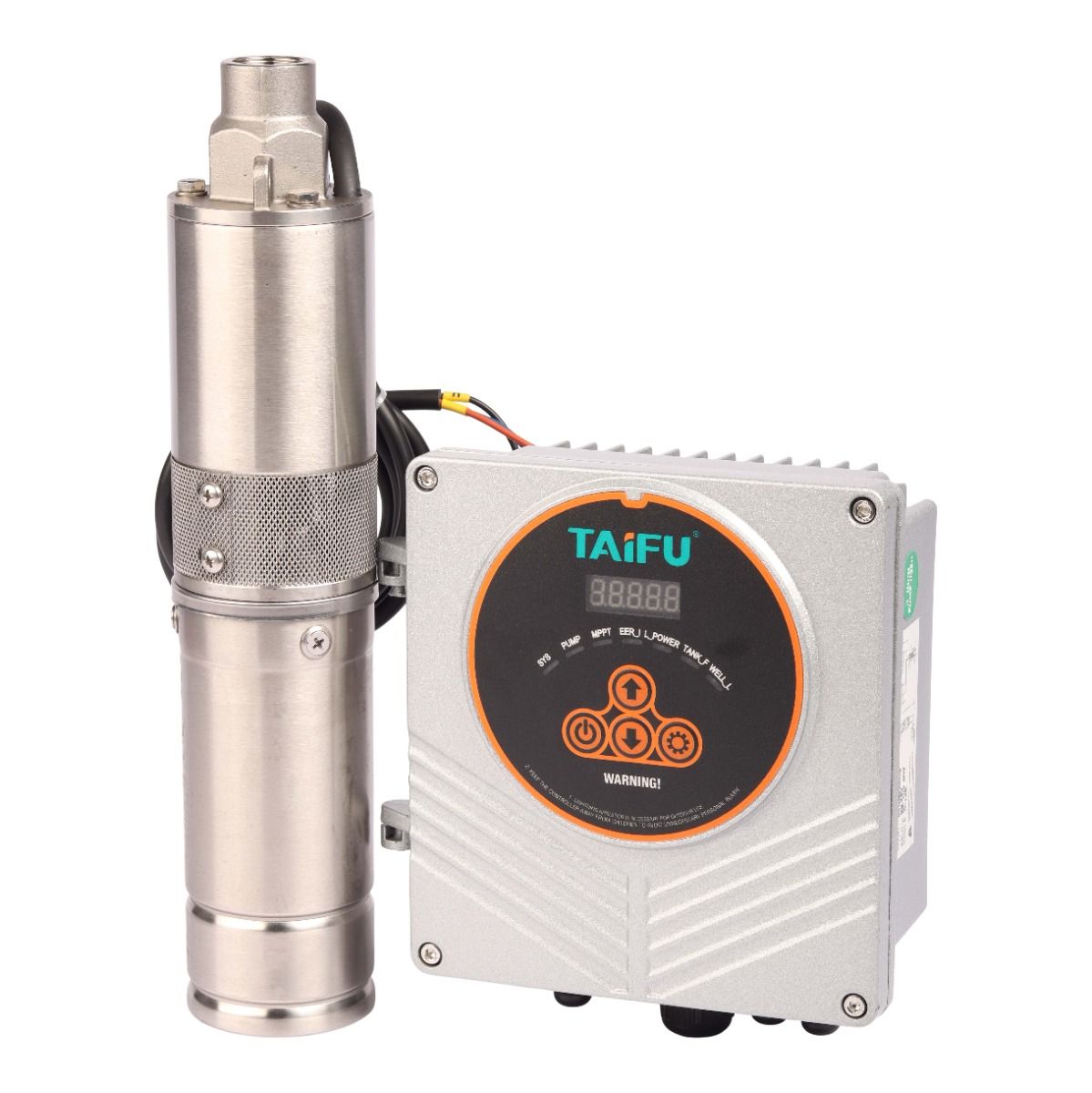

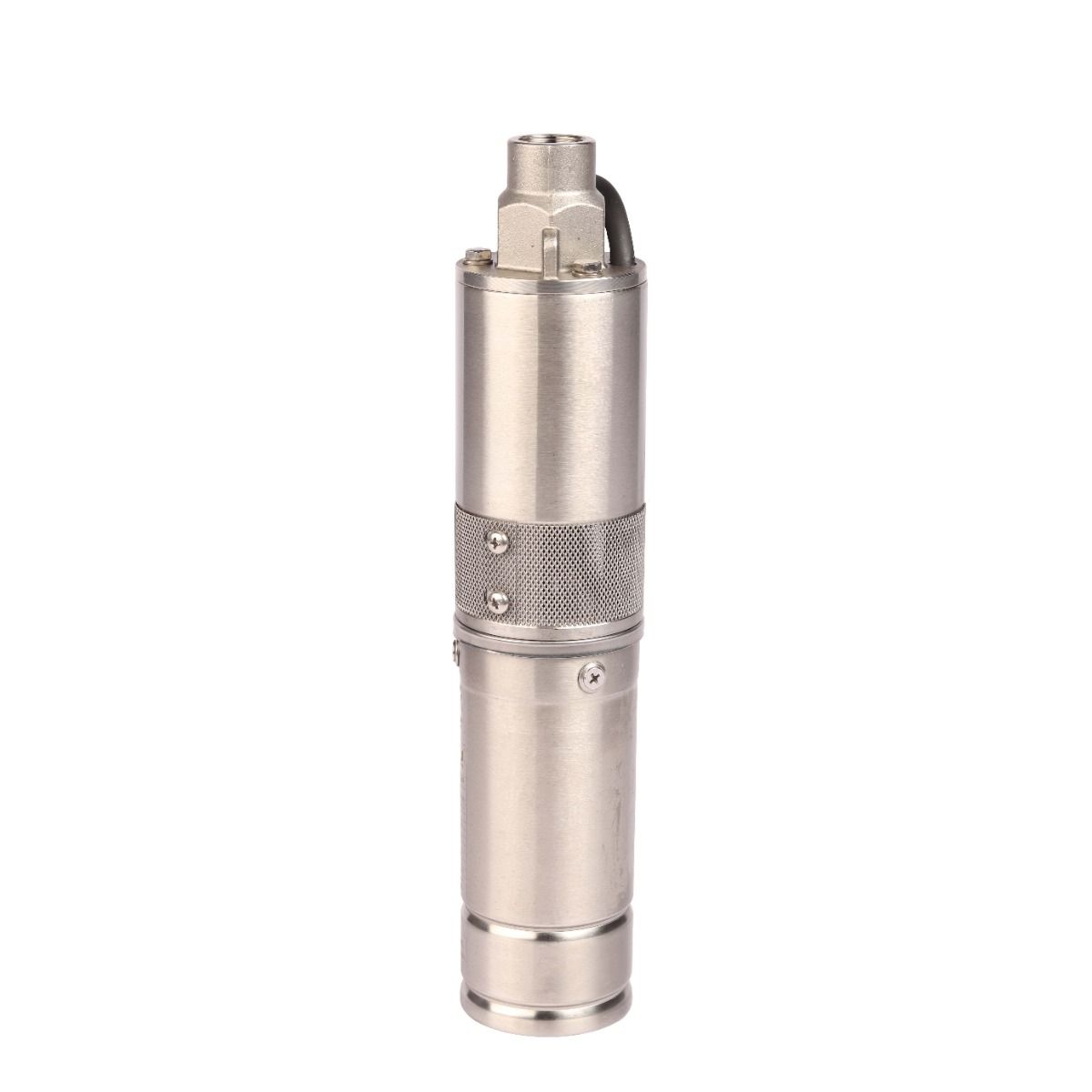

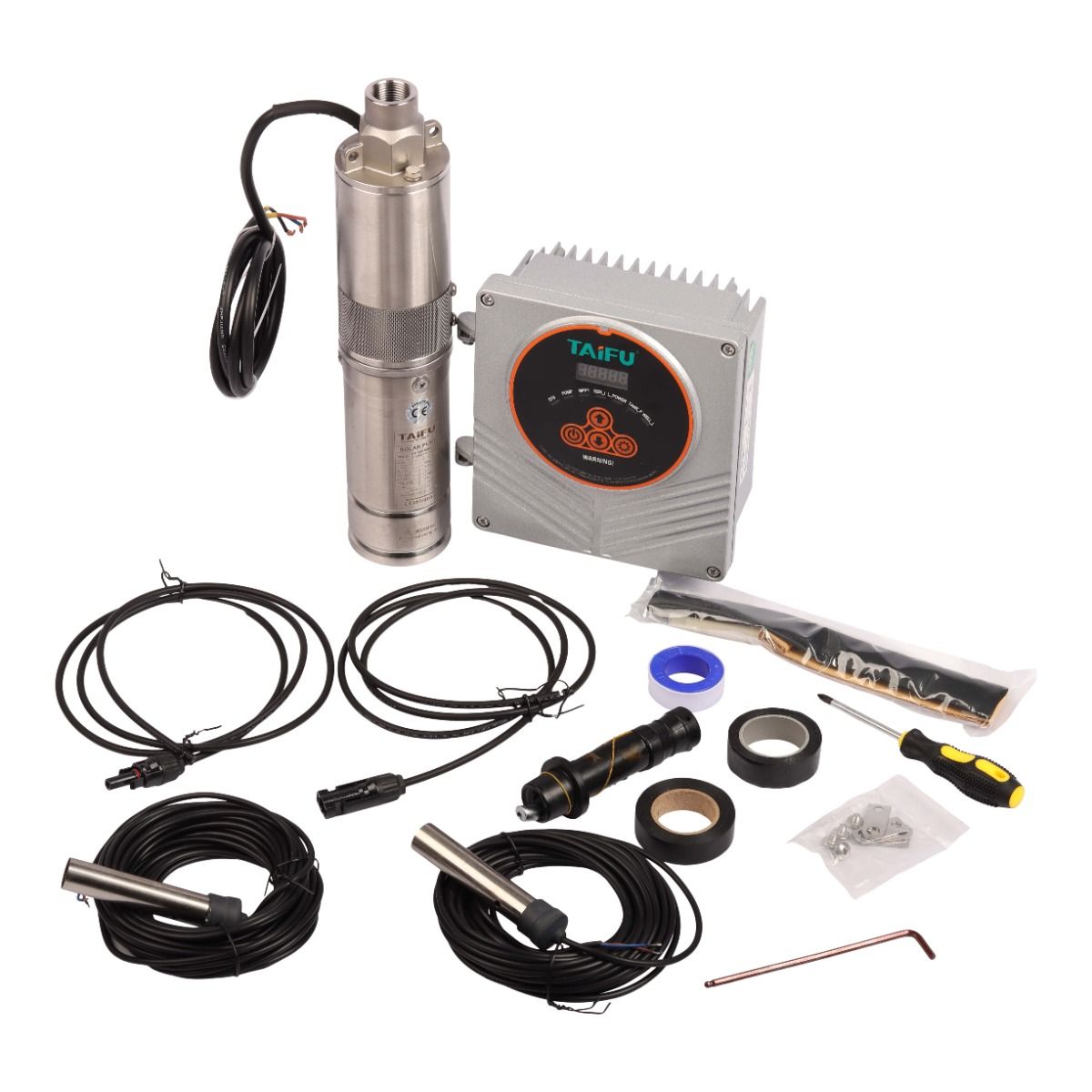

Taifu 3" Solar DC Bore Hole Pump 250W 24V DC (3TSS1.5-65-24/250)
The Taifu 3" Solar DC Bore Hole Pump 250W 24V DC is an efficient and eco-friendly solution for deep well water extraction. With a durable stainless steel body and a DC-powered design, it is ideal for off-grid and solar-powered applications.
Pump Specifications
| Feature | Specification |
|---|---|
| Power | 250 W |
| Voltage | 24 V DC |
| Max Flow Rate | 53 L/min |
| Recommended Operating Pressure | 0.3 M3/H @ 50M |
| Max Head | 65 m |
| Outlet Size | 3/4" IN |
| Includes | Controller |
Electrical Specifications
| Feature | Specification |
|---|---|
| Voltage | 220 V DC |
| Current | 10 A |
| Max Current | 12 A |
| Open Circuit Voltage Input | 60 V - 430 V |
| Max Open Circuit Voltage | 430 V |
| Overvoltage Circuit Protection Value | 430 V ±5% |
| Overvoltage Restoration Value | 410 V ±5% |
| Min Input Voltage | 60 V |
| Undervoltage Protection Value | 60 V ±5% |
| Undervoltage Restoration Value | 70 V ±5% |
| Max Power | 2200 W ±5% |
Write Your Own Review
| Package Length (cm) | 47.5 |
|---|---|
| Manufacturer | Taifu |
| Package Width (cm) | 33.53 |
| Package Height (cm) | 18.54 |
| Package Weight (kg) | 8.140000 |
