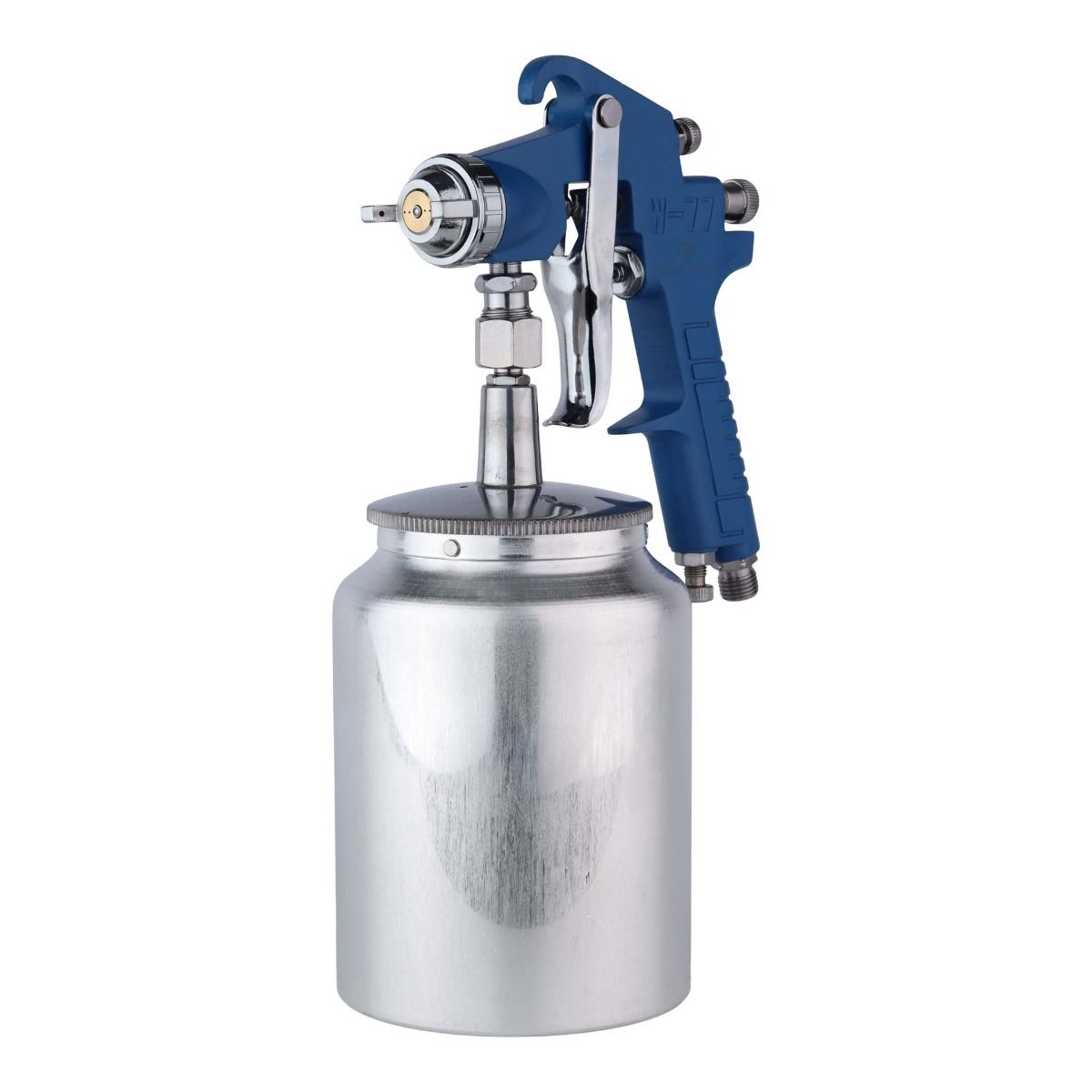

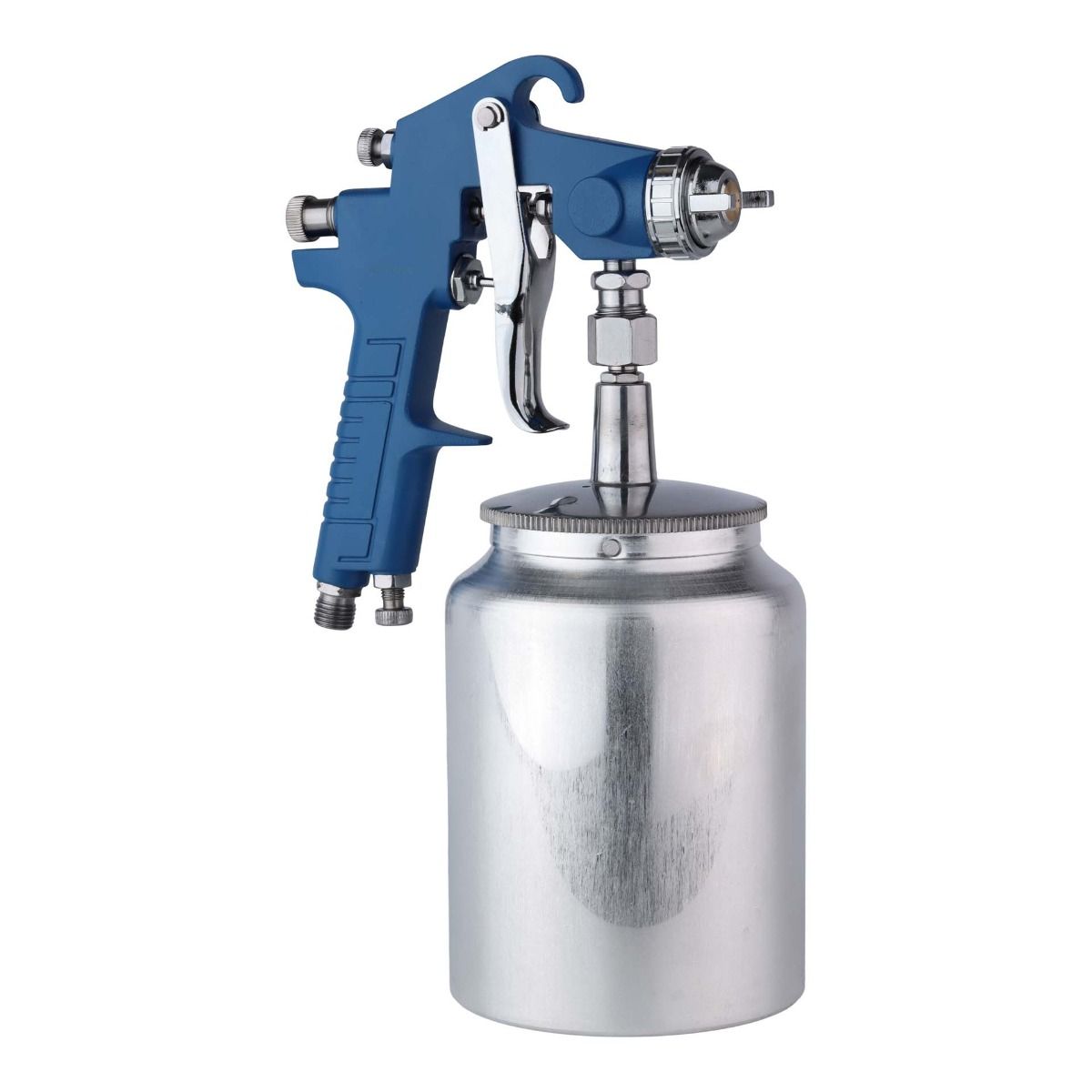

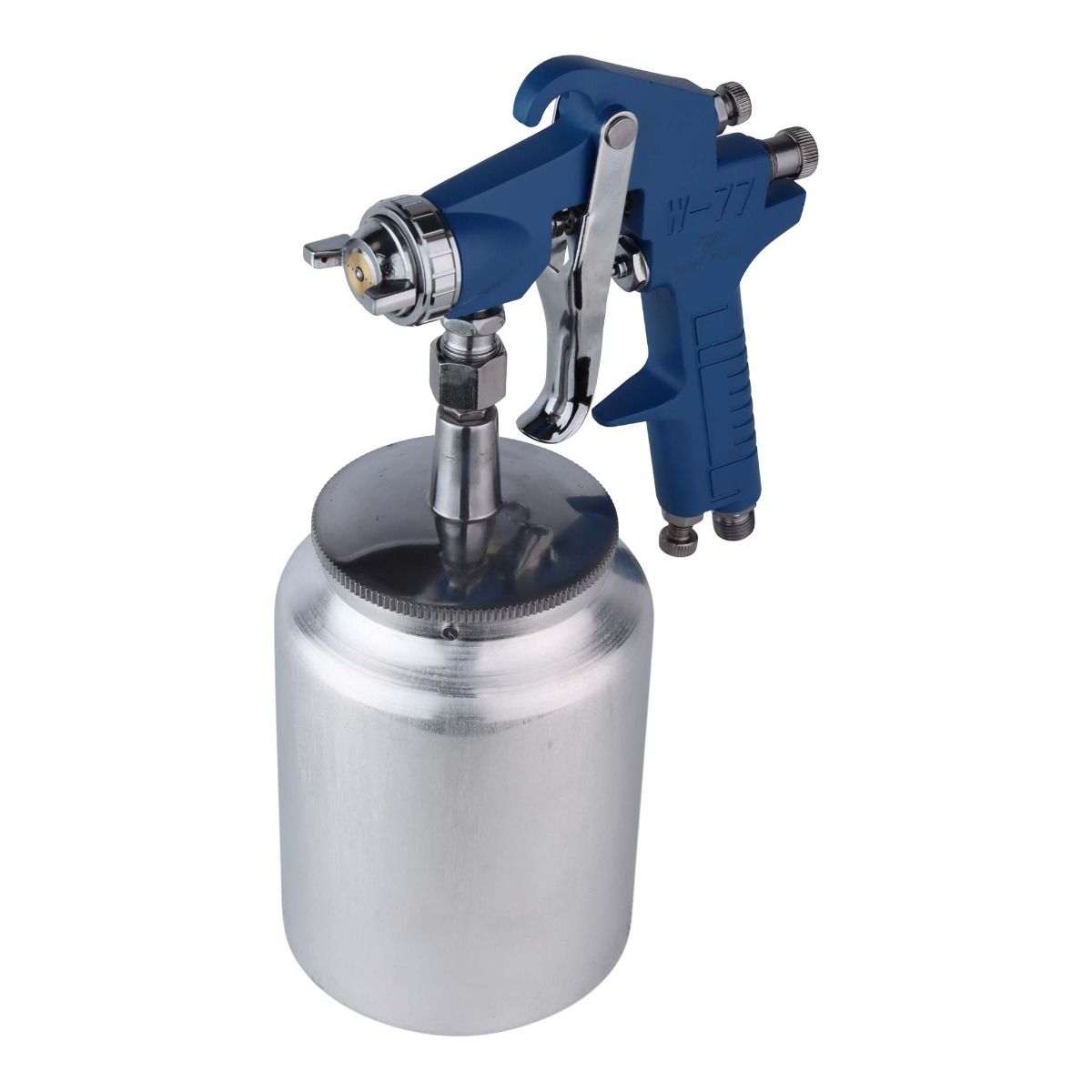

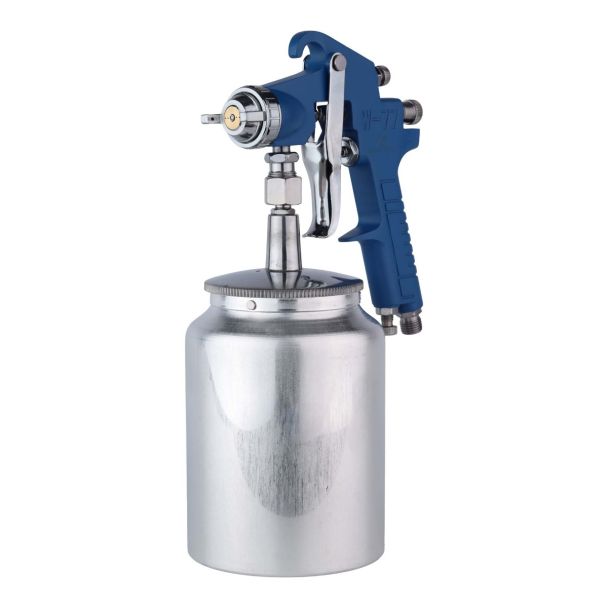

RONGPENG High Pressure Suction Feed Spray Gun W-77S
This suction feed spray gun is tailored for high-pressure output, delivering a superior performance with a 2.0mm nozzle size and a paint capacity of 1000cc. Its efficient air consumption rate of 4.2 to 7.1 CFM (119 - 201 L/min) ensures a consistent spray, making it suitable for a range of viscous materials. The gun's 6-pattern jet count and adjustable controls for air, fluid, and fan provide a customizable painting experience, while the 180 - 280mm pattern width gives you the flexibility to cover large surfaces with precision.
Technical Specifications
| Feature | Specification |
|---|---|
| Nozzle Size | 2.0mm |
| Air Consumption | 4.2 - 7.1 CFM (119 - 201 L/min) |
| Spray Gun Type | High Pressure Suction Feed |
| Paint Capacity | 1000cc |
| Pattern Jet Count | 6 |
| Adjustment Types | Air, Fluid, Fan |
| Interchangeable Nozzles | No |
| Pattern Width | 180 - 280mm |
| Recommended Pressure | 3.0 - 4.0 BAR (44 - 58 PSI) |
Key Features

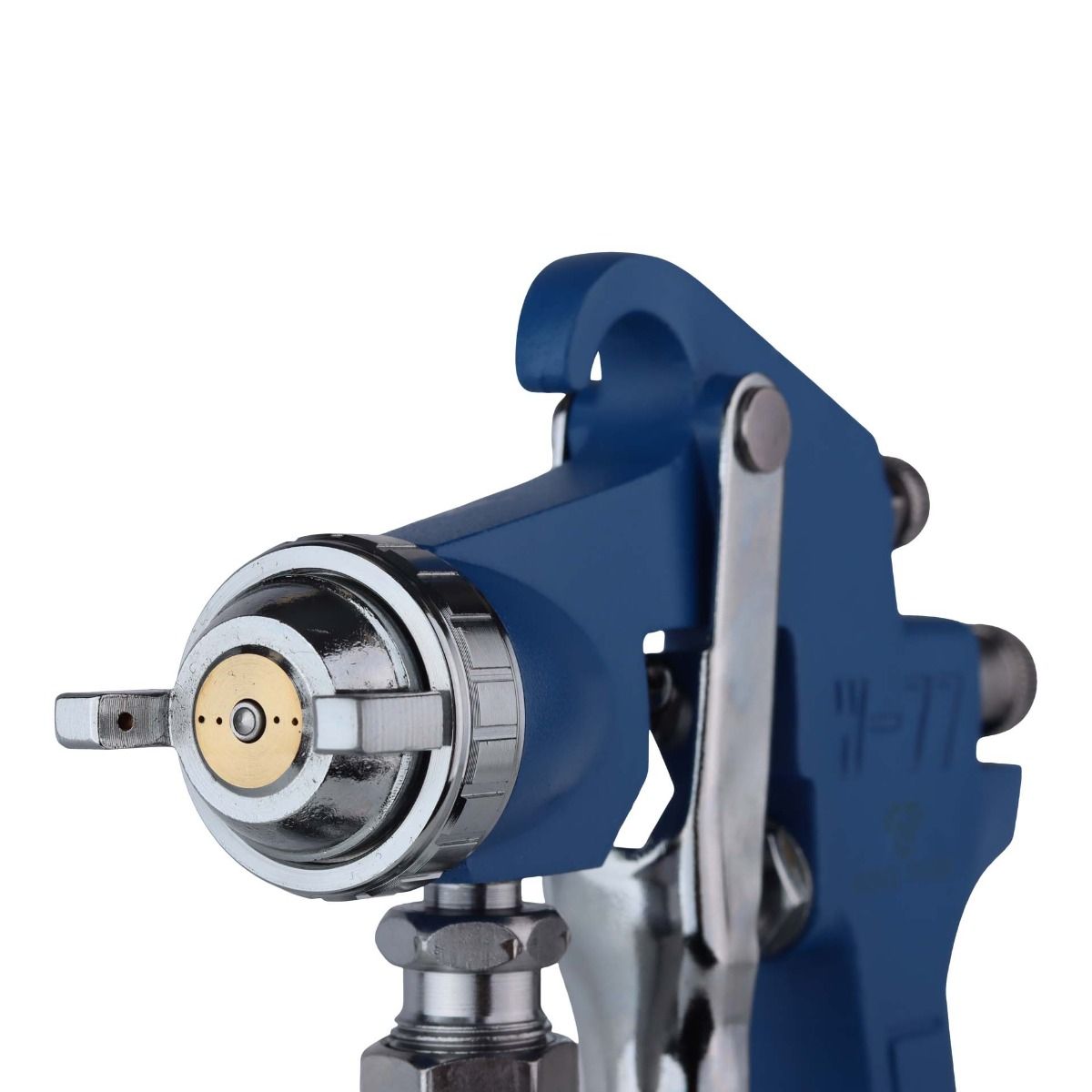

- Stainless Steel Nozzle & Needle: Durable construction that resists wear and corrosion.
- Adjustable Controls: Features air, fluid, and fan adjustments for tailored application.
- Large Capacity: 1000cc paint container for extensive use without frequent refills.
- Suction Feed Type: Ensures a smooth and continuous flow of paint.
- Optimal Pressure Range: Operates efficiently at 3.0 - 4.0 BAR (44 - 58 PSI).
Applications
- Ideal for industrial coatings, and high-precision painting in furniture manufacturing.
Write Your Own Review
| Specifications Description |
Product Specifications:
Applications:
|
|---|---|
| Package Weight (kg) | 0.440000 |
| Package Length (cm) | 11.40 |
| Package Width (cm) | 22.80 |
| Package Height (cm) | 11.60 |
| Consignment | No |
