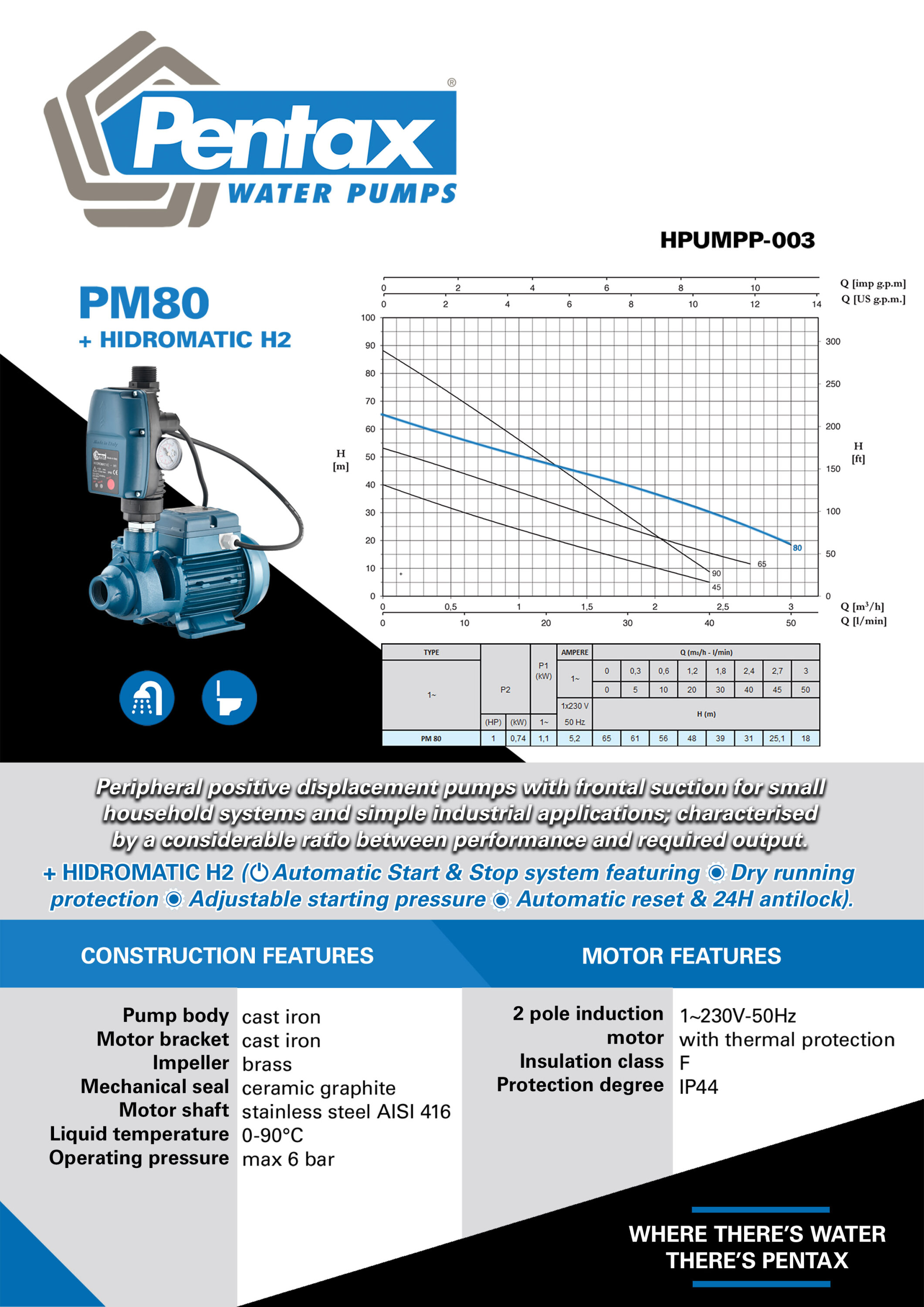

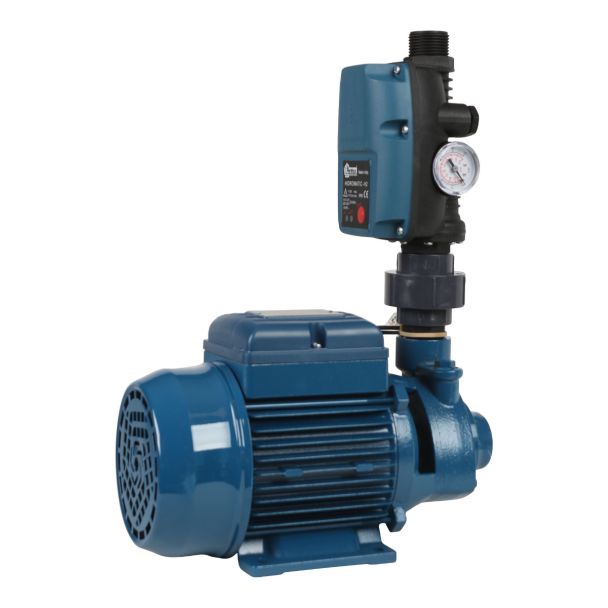

PENTAX PM80 0.74KW 230V BOOSTER PUMP WITH HYDROMATIC H1
Peripheral positive displacement pump with front suction for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.
Hydromatic (H2): Controls the start of the electric pump after a drop in pressure (opening of taps) and the stop when the fluid flow stops at the maximum pressure level of the pump (closing of taps). They can be considered as a replacement for the traditional system consisting of a pressure switch and tank.
| Package Weight (kg) | 11.090000 |
|---|---|
| Package Length (cm) | 43.94 |
| Package Width (cm) | 19.56 |
| Package Height (cm) | 22.35 |
Construction Features
| Feature | Specification |
|---|---|
| Pump Body | Cast iron |
| Motor Bracket | Cast iron |
| Impeller | Brass |
| Mechanical Seal | Ceramic-graphite-NBR |
| Motor Shaft | Stainless steel AISI 416 |
| Liquid Temperature | 0 - 90 °C |
| Operating Pressure | Max 8 bar |
| Maximum Flow Rate | 50 l/m (3m³/h) |
| Maximum Head | 65m |
Motor
| Feature | Specification |
|---|---|
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX4 |
| Amperage | 5.2A |
| Power Output | 0.74 KW (1 HP) |
Dimensions
| Feature | Specification |
|---|---|
| Inlet Size | 1" G |
| Outlet Size | 1" G |
Hydromatic
| Feature | Specification |
|---|---|
| Voltage | 110 - 230V AC ± 10% 50/60Hz |
| Max. Rated Current | 12A |
| Starting Pressure Range | 1 - 3.5 bar |
| Max Pressure | 10 bar (145 PSI) |
| Protection Degree | IP65 |
| Max. Fluid Temperature | 55°C |
| Max. Ambient Temperature | 55°C |
