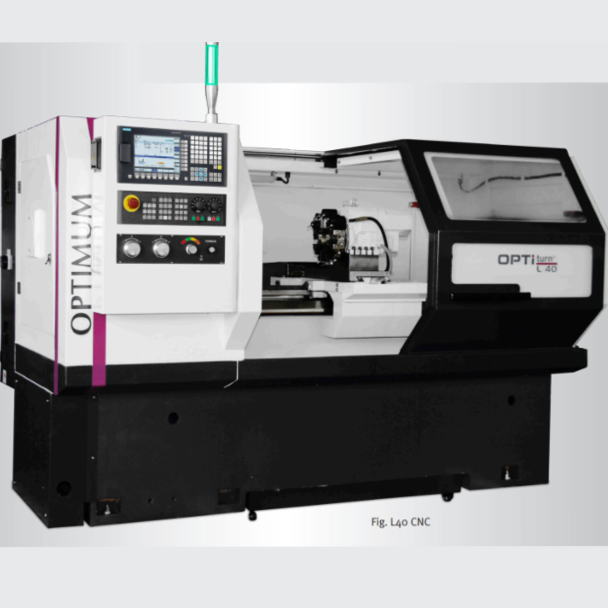

OPTIMUM CNC Lathe Machine L40
OPTIMUM CNC Lathe Machine L40 is designed for accurate machining and smooth CNC performance. Ideal for workshops and production environments, it offers solid construction, precise control and reliable operation for milling with consistent results.
Contact us for availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | L40 |
| Item No | 1304000 |
| Total Power | 11 KW |
| Electrical Connection | 400V 50Hz 3Ph |
| Main Motor Power | 7.5 KW |
| Coolant Pump Power | 370 W |
| Capacity | — |
| Swing Over Bed | Ø400 mm |
| Swing Over Cross Slide | Ø240 mm |
| Center Width | 850 mm |
| Center Height | 200 mm |
| Spindle Taper | MT6 |
| Spindle Nose | A2-6 |
| Spindle Bore | Ø51 mm |
| Spindle Speed Range | 30–2500 rpm |
| Lathe Chuck | Ø200 mm |
| Tool Turret Type | Electric |
| Number of Tools | 8 |
| Section of Tool (Max) | 20 x 20 mm |
| X/Z Axis Travel | 240/850 mm |
| X/Z Axis Rapid Feed | 6000/8000 mm/min |
| Position Accuracy | ±0.015 mm |
| Repeat Position Accuracy | ±0.01 mm |
| Tailstock Taper | MT4 |
| Tailstock Sleeve Diameter | Ø55 mm |
| Tailstock Sleeve Travel | 120 mm |
| Overall Dimensions (L x W x H) | 2540 x 1420 x 1750 mm |
| Packing Size (L x W x H) | 2760 x 1630 x 1953 mm |
| Net Weight / Gross Weight | 2400 / 2550 kg |
| Tank Capacity | 110 L |
