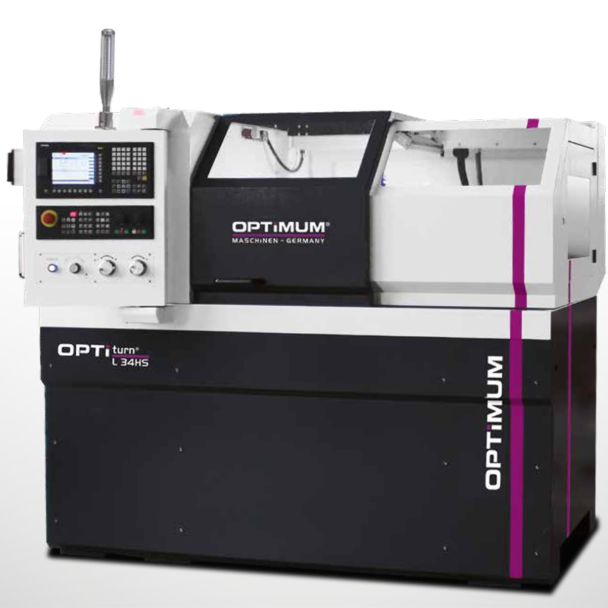

OPTIMUM CNC Lathe Machine L34HS
OPTIMUM CNC Lathe Machine L34HS is designed for accurate machining and smooth CNC performance. Ideal for workshops and production environments, it offers solid construction, precise control and reliable operation for milling with consistent results.
Contact us for availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | L 34HS |
| Article Number | 3504232 |
| Electrical Connection | 400 V / 3 Ph ~50 Hz |
| Total Connected Load | 6.5 kVA |
| Spindle Drive Motor (S1) | 3.7 kW |
| Torque Drive Motor (S1) | 23.6 Nm |
| Torque at the Spindle | 40 Nm |
| Spindle Seat | ISO 702-1 No. 4 form A2 |
| Spindle Bore | Ø 46 mm |
| Chuck Passage | Ø 42 mm |
| Lathe Chuck Diameter | Ø 160 mm |
| Coolant Pump Output | 95 W |
| Tank Capacity | 75 litres |
| Pump Delivery Rate | Max. 6 l/min |
| Max. Delivery Head | 3 m |
| Centre Height | 165 mm |
| Centre Width | 540 mm |
| Swing Ø Above Cross Slide | 146 mm |
| Swing Ø Above Machine Bed | 350 mm |
| Bed Width | 208 mm |
| Spindle Speeds | 30 - 3 500 rpm |
| Number of Tool Slots | 6 |
| Max. Mounting Height x Width of Square | 16 x 16 mm |
| Max. Chuck Diameter Drilling Rod | 16 mm |
| Repeat Accuracy | ± 0.01 mm |
| Positioning Accuracy | ± 0.01 mm |
| X Axis Travel | 185 mm |
| Z Axis Travel | 540 mm |
| X Axis Feed Speed | 6 m/min |
| Z Axis Feed Speed | 8 m/min |
| X Axis Motor Torque | 4 Nm |
| Z Axis Motor Torque | 6 Nm |
| Tailstock Shank | MT 3 |
| Spindle Sleeve Diameter | 45 mm |
| Spindle Sleeve Stroke | 120 mm |
| Dimensions (L x W x H) | 1950 x 1475 x 1956 mm |
| Overall Weight | 1200 kg |
| Overall Package |
|
| Control |
|
Write Your Own Review
| Package Weight (kg) | 1500.000000 |
|---|---|
| Package Length (cm) | 207 |
| Package Width (cm) | 165 |
| Package Height (cm) | 205 |
| Manufacturer | OPTIMUM |
| Consignment | No |
