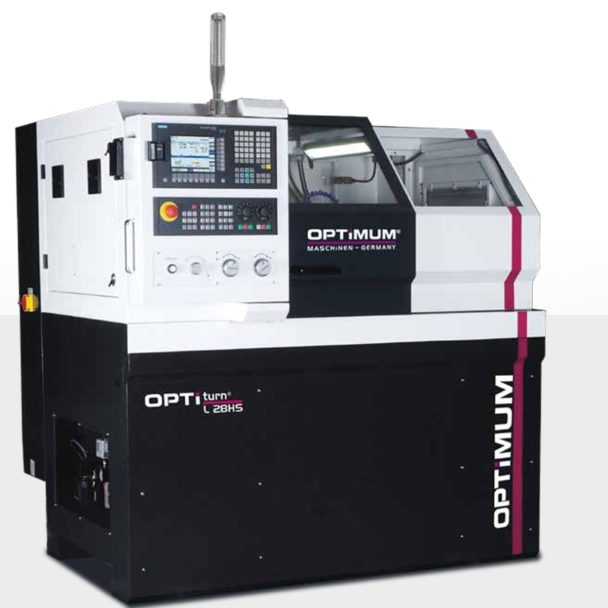

OPTIMUM CNC Lathe Machine L28HS
OPTIMUM CNC Lathe Machine L28HS is designed for accurate machining and smooth CNC performance. Ideal for workshops and production environments, it offers solid construction, precise control and reliable operation for milling with consistent results.
Contact us for availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | L 28HS |
| Article Number | 3504220 |
| Electrical Connection | 400 V / 3 Ph ~50 Hz |
| Total Connected Load | 3.75 kVA |
| Spindle Drive Motor (S1) | 2.2 kW |
| Torque Drive Motor (S1) | 14 Nm |
| Torque at the Spindle | 28 Nm |
| Spindle Seat | DIN 6350 A2-3 |
| Spindle Taper | 5C |
| Spindle Bore | Ø 30 mm |
| Coolant Pump Output | 95 W |
| Tank Capacity | 25 litres |
| Pump Delivery Rate | Max. 6 l/min |
| Max. Delivery Head | 3 m |
| Centre Height | 169 mm |
| Centre Width | 430 mm |
| Swing Ø Above Cross Slide | 200 mm |
| Swing Ø Above Machine Bed | 300 mm |
| Spindle Speeds | 40 - 4 000 rpm |
| Number of Tool Slots | 6 |
| Max. Mounting Height x Width of Square | 16 mm |
| Max. Chuck Diameter Drilling Rod | 16 mm |
| Repeat Accuracy | ± 0.01 mm |
| Positioning Accuracy | ± 0.01 mm |
| X Axis Travel | 145 mm |
| Z Axis Travel | 465 mm |
| X Axis Feed Speed | 10 m/min |
| Z Axis Feed Speed | 12 m/min |
| X Axis Motor Torque | 1.3 Nm |
| Z Axis Motor Torque | 2.4 Nm |
| Tailstock Shank | MT 2 |
| Spindle Sleeve Diameter | 30 mm |
| Spindle Sleeve Stroke | 120 mm |
| Dimensions (L x W x H) | 1655 x 1590 x 1955 mm |
| Overall Weight | 832 kg |
| Overall Package |
|
| Control |
|
Write Your Own Review
| Package Weight (kg) | 1050.000000 |
|---|---|
| Package Length (cm) | 1855 |
| Package Width (cm) | 166 |
| Package Height (cm) | 193 |
| Manufacturer | OPTIMUM |
| Consignment | No |
