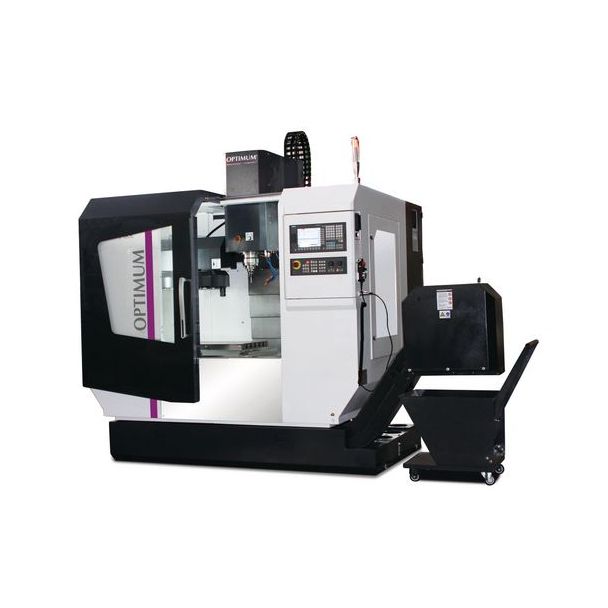

OPTIMUM CNC Milling Machine F150E
OPTIMUM CNC Milling Machine F150E is designed for accurate machining and smooth CNC performance. Ideal for workshops and production environments, it offers solid construction, precise control and reliable operation for milling with consistent results.
Contact us for availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | OPTIMUM CNC Milling Machine F150E |
| Article Number | 350150 |
| Drive | Belt Drive |
| Electrical Connection | 400 V / 3 Ph ~50 Hz |
| Total Connected Load | 15 kW |
| Drive Motor S1 | 7.5 kW |
| Torque S1 | 48 Nm |
| Drive Motor S6 30% | 11.25 kW |
| Torque S6 30% | 72 Nm |
| Spindle Seat | BT 40 |
| Coolant Pump Output | 450 W |
| Coolant Tank Capacity | 190 litres |
| Repeat Accuracy | ± 0.008 mm |
| Positioning Accuracy | ± 0.008 mm |
| Number of Tool Slots | 16 |
| Max Tool Diameter | 80 mm |
| Max Tool Diameter (adjacent slots empty) | 180 mm |
| Max Tool Length | 300 mm |
| Max Tool Weight | 8 kg |
| Travel X / Y / Z | 800 mm / 500 mm / 500 mm |
| Rapid Traverse (X/Y/Z) | 32 m/min |
| Motor Torque (X/Y/Z) | 9.55 Nm / 9.55 Nm / 16.7 Nm |
| Speed Range | 10 - 10,000 rpm |
| Compressed Air Requirement | 6 bar |
| Spindle Clearance to Table | 120 - 670 mm |
| Spindle to Column Distance | 380 mm |

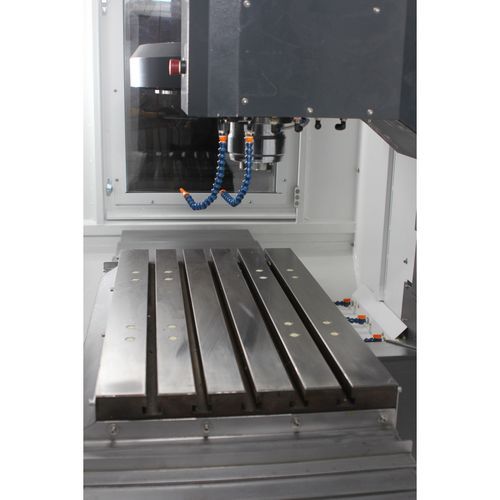

| Table Size (L x W) | 1000 x 500 mm |
| T-Slot Size / Number / Distance | 18 mm / 5 / 80 mm |
| Maximum Payload | 500 kg |
| Dimensions (L x W x H) | 3420 x 2050 x 2400 mm |
| Overall Weight | 4500 kg |
Key Features
- Powerful 15 kW spindle system with BT40 taper for professional precision
- Large working area with 800 x 500 x 500 mm travel for industrial jobs
- 16-slot automatic carousel tool changer with 7-second swap time
- High torque output ideal for tough materials and deep cuts
- Precision repeatability and position accuracy of ± 0.008 mm
- Robust cast-iron frame minimizes vibration for high quality finishes
Frequently Asked Questions
What industries commonly use CNC mills like the F150E?
CNC milling machines are widely used in automotive, aerospace, industrial fabrication, toolmaking, and educational sectors for precise and repeatable part manufacturing.
Can I use this CNC machine for steel and hardened alloys?
Yes, the F150E has sufficient torque, rigidity, and spindle power to handle steel, stainless steel, and alloy materials effectively.
Does the machine include a coolant system?
Yes, the F150E includes an integrated coolant system with a 450 W pump and 190 L tank capacity.
What kind of programming knowledge is required to operate it?
The machine is compatible with standard G-code, so familiarity with CNC programming or CAD/CAM software is recommended. Training is advised for new operators.
OPTIMUM F150E – User Manual (PDF)
Download Full Manual
Write Your Own Review
| Manuals & Videos | OPTIMUM F150E – User Manual (PDF)
Download Full Manual
|
|---|---|
| Package Weight (kg) | 4500.000000 |
| Package Length (cm) | 240 |
| Package Width (cm) | 205 |
| Package Height (cm) | 240 |
| Manufacturer | OPTIMUM |
| Consignment | No |
