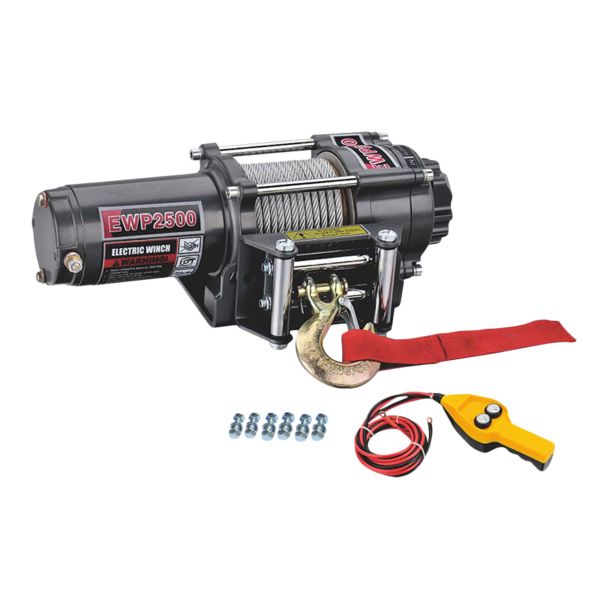

MAC AFRIC EWP 2500D 12V ATV Winch
The powerful MAC AFRIC EWP2500D compact winch is ideal for smaller vehicles such as ATV or a trailer. This model has a permanent magnetic motor and free spooling clutch. Supplied with a two-way remote and fair lead.
| Package Length (cm) | 27.00 |
|---|---|
| Package Width (cm) | 42.60 |
| Package Height (cm) | 20.20 |
| Package Weight (kg) | 10.040000 |
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Line Pull | 3 500 lbs (1588 kgs) |
| Motor Specifications | 12 V: Input: 2.4 KW / 3.2 HP; Output: 1 KW / 1.3 HP |
| Gear Reduction Ratio | 170:1 |
| Cable Length | 12.8 M (42" IN) |
| Cable Diameter | 5.4 MM (7/32" IN) |
| Mounting Bolt Pattern | 3.13" (79.5 mm), 2-M8 |
| Mounting Dimensions | 12.4 x 7.6 MM (0.489" x 0.3" IN) |
Performance Table – Line Pull, Speed & Current
| Line Pull (lbs / kgs) | Line Speed ft/min (m/min) | Current (12 V DC) |
|---|---|---|
| 0 (0) | 10.5 (3.2) | 16 A |
| 1000 (454) | 8.9 (2.7) | 40 A |
| 2000 (907) | 7.5 (2.3) | 75 A |
| 3500 (1588) | 4.6 (1.4) | 120 A |
Rope Capacity by Layer
| Layer | Rated Line Pull lbs (kgs) | Total Rope on Drum ft (m) |
|---|---|---|
| 1 | 3500 (1588) | 5.9 (1.8) |
| 2 | 2789 (1265) | 13.5 (4.1) |
| 3 | 2319 (1052) | 22.0 (6.7) |
| 4 | 1984 (900) | 31.2 (9.5) |
| 5 | 1733 (786) | 42.0 (12.8) |
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
- The steeper the incline, the greater the resistance, reducing the winch's effective pulling power.
- Figures are based on rolling loads, such as vehicles or trailers on wheels.
- Always ensure your winch is rated above the expected load for the slope you are operating on.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
Important Tips:
- These figures apply to rolling loads (not dead weight or dragging).
- Ensure proper use of snatch blocks or pulley systems for higher loads.
- Regularly inspect your winch and recovery gear for safety.
