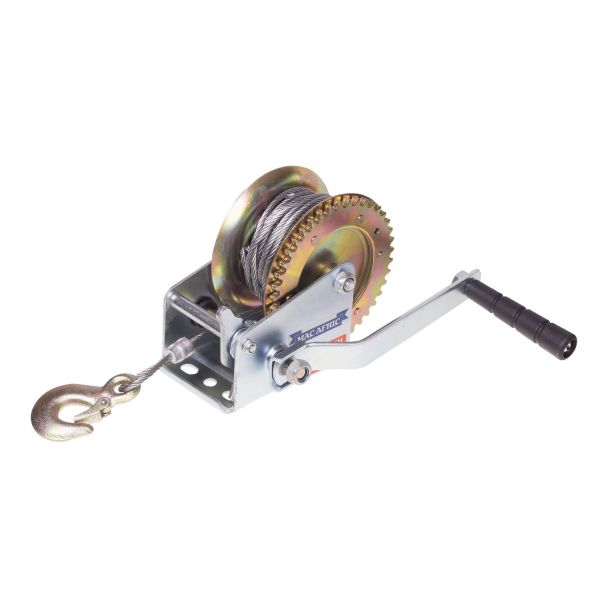

MAC AFRIC 1000 LBS Hand Gear Winch
Introducing the MAC-AFRIC 1200 LBS Hand Gear Winch - the compact powerhouse for your lifting and pulling needs! With a sturdy steel cable and a pulling capacity of 450 kg (1,000 lbs), this hand-cranked winch is perfect for various applications, ensuring you can handle tasks with ease and precision. Whether you're lifting heavy loads or securing equipment, the MAC-AFRIC 1200 LBS Hand Gear Winch is your reliable, manual solution for optimal control and efficiency.
| Package Length (cm) | 21.80 |
|---|---|
| Package Width (cm) | 12.80 |
| Package Height (cm) | 16.40 |
| Package Weight (kg) | 3.520000 |
Technical Specifications
| Feature | Specification |
|---|---|
| Cable Length | 10 M |
| Cable Diameter | 4.5 MM |
| End Hook Sizes | 1/4" IN |
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
- The steeper the incline, the greater the resistance, reducing the winch's effective pulling power.
- Figures are based on rolling loads, such as vehicles or trailers on wheels.
- Always ensure your winch is rated above the expected load for the slope you are operating on.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
Important Tips:
- These figures apply to rolling loads (not dead weight or dragging).
- Ensure proper use of snatch blocks or pulley systems for higher loads.
- Regularly inspect your winch and recovery gear for safety.
