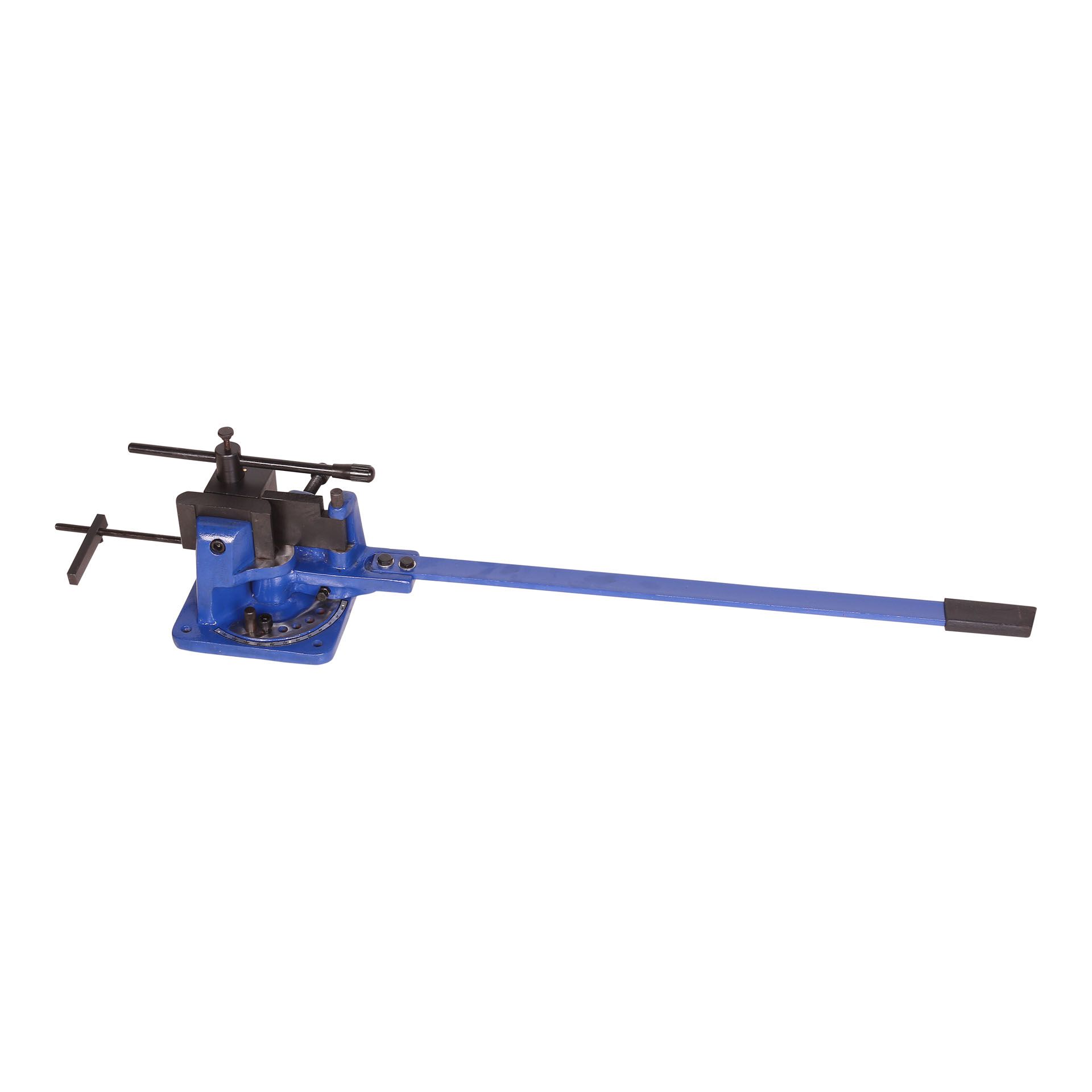

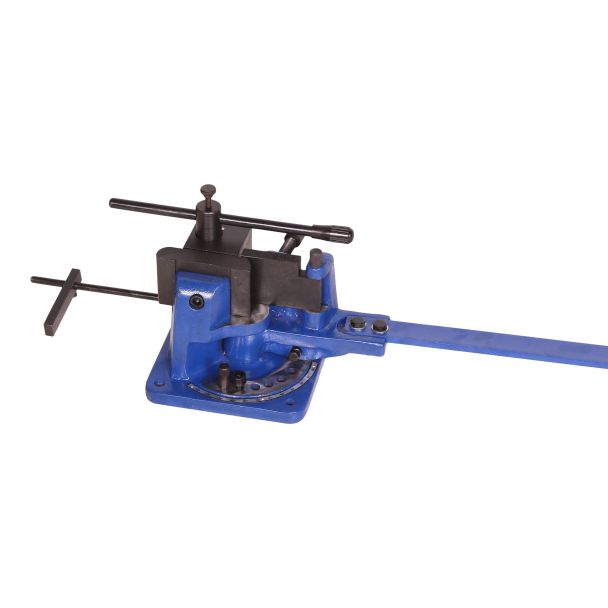

MAC AFRIC UB-70 Universal Steel Bender
The MAC AFRIC UB-70 Universal Steel Bender is a robust and precise manual bender, capable of bending a wide range of steel profiles, including flat, square, round, and angle steel. Designed with a rigid cast-steel body, it handles both hot and cold steel with ease. Its long lever arm ensures maximum bending leverage, reducing operator fatigue, while the adjustable die plate allows bending angles up to 120°, offering exceptional flexibility for various applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Working Width | 1 000 mm |
| Max Shearing Thickness | 1 mm |
| Max Breaking Thickness | 1 mm |
| Max Rolling Thickness | 1 mm |
| Max Bend Angle | 90° |
| Min Rolling Diameter | 43 mm |
| Maximum Bending Angle | 120° |
| Material | Cast Steel |
Key Features
- Wide Bending Range: Handles flat bar up to 70x15mm, square bar up to 30x30mm, round bar up to 30mm, and angle steel up to 70x15mm (hot steel).

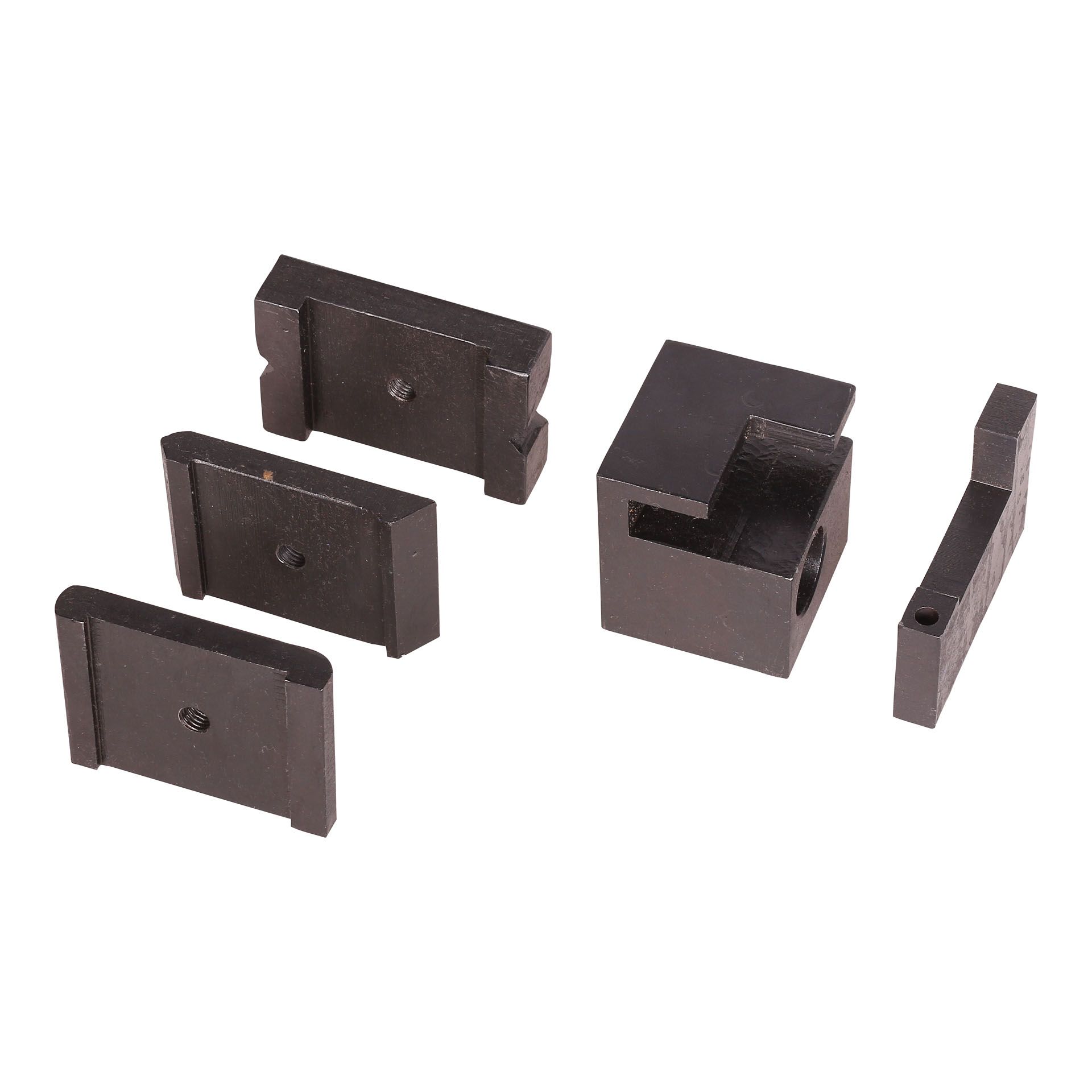

- High Flexibility: Supports various bending radii by adjusting or rotating the die plate.
- Angle Precision: Equipped with an angle stop and material stop to allow repeatable, accurate bends.
- Long Lever Arm: Provides optimal leverage for easier bending, reducing physical strain.
- Durable Construction: Cast steel body ensures long-term reliability and performance under heavy use.
- Quick Clamp Mechanism: Eccentric quick clamp for fast material adjustments and streamlined operation.
- Safe and Stable: Wide supporting face and integrated safety stops enhance stability during operation.
- Compact and Bench-Mountable: Easily mounts to a workbench, keeping the unit stable while saving space.
Specifications
- Cold Steel Bending Capacity:
- Flat Bar: 70x6mm
- Square Bar: 16x16mm
- Round Bar: 18mm
- Angle Steel: 60x8mm
- Hot Steel Bending Capacity:
- Flat Bar: 70x15mm
- Square Bar: 30x30mm
- Round Bar: 30mm
- Angle Steel: 70x15mm
The Adendorff Metal Bending Guide
Explore the fundamentals of metal bending, including the different tools available, how to choose the right one, and tips for achieving precise bends across various metals.
Write Your Own Review
| Specifications Description |
Specifications:
Hot Steel Bending Capacity:
Maximum Bending Angle: 120° |
|---|---|
| Package Weight (kg) | 30.000000 |
| Package Length (cm) | 39.00 |
| Package Width (cm) | 28.00 |
| Package Height (cm) | 28.00 |
