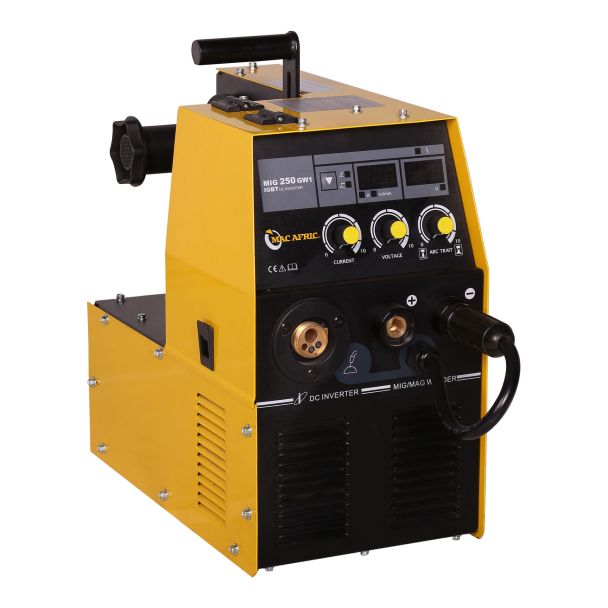

MAC AFRIC Professional D.C Model Inverter Combination MMA/MIG Welder
Portable compact design.
Dual Function MIG (Gas / No Gas) & Arc (MMA).
Powerful and easy to use.
380V (3 phase).
Ideal for general metal fabrication.
Suitable for the general commercial workshop.
Technical Specifications – MIG / MMA Welder
| Feature | Specification |
|---|---|
| Input Voltage | 380 V (3 Phase) @ 50 Hz |
| Rated Input Current | 14.5 A (MIG), 16.5 A (MMA) |
| No-Load Voltage | 60 V (MIG / MMA) |
| Output Current | 40 – 250 A (MIG), 60 – 250 A (MMA) |
| Output Voltage | 16 – 26.5 V (DC) |
| Duty Cycle | 60% |
| Wire Feed Speed | 3 – 13 m/min |
| Post Flow Time | 1.0 ± 0.5 s |
| Suitable Wire Diameter | 0.8 – 1 mm |
Write Your Own Review
| Package Length (cm) | 60.20 |
|---|---|
| Package Width (cm) | 37.40 |
| Package Height (cm) | 70.40 |
| Package Weight (kg) | 30.320000 |
