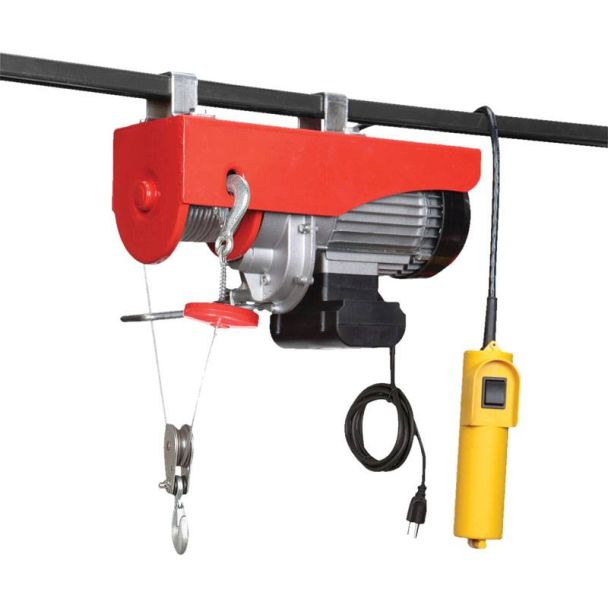

MAC AFRIC PA1000D Electric Cable Hoist 500/1000kg
The MAC AFRIC PA1000D is a mini electric rope hoist designed for versatile lifting operations. With a 230V, 50Hz power supply, and an efficient 1600W input power, it easily handles loads with its dual capacity of 500/999kg. This hoist is perfect for both light-duty and heavy-duty applications, offering a lifting height of 12/6m and a rated speed of 8/4m/min depending on the configuration.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | PA1000D |
| Power Supply | 230 V @ 50 Hz |
| Power Output | 1.6 kW |
| Current | 7.4 A |
| Working Load Limit | Single Hook: 500 kg / Double Hook: 999 kg |
| Lifting Height | Single Hook: 12 m / Double Hook: 6 m |
| Lifting Speed | Single Hook: 8 m/min / Double Hook: 4 m/min |
| Cable Diameter | 5.6 mm |
| Protection Class | IP54 |
Key Features
- Dual lifting setup allows switching between higher speed (single hook) and higher load capacity (double hook).
- Upper and lower limit devices help prevent over-travel during lifting operations.
- Emergency stop switch allows immediate shutdown when needed.
- Reinforced braking system supports controlled and secure lifting.
- Pulley system with multiple sheaves helps manage load handling more effectively.
- IP54 protection rating helps protect against dust and light water exposure in typical working environments.
Write Your Own Review
| Package Weight (kg) | 32.880000 |
|---|---|
| Package Length (cm) | 25.40 |
| Package Width (cm) | 57.40 |
| Package Height (cm) | 32.60 |
| Consignment | No |
