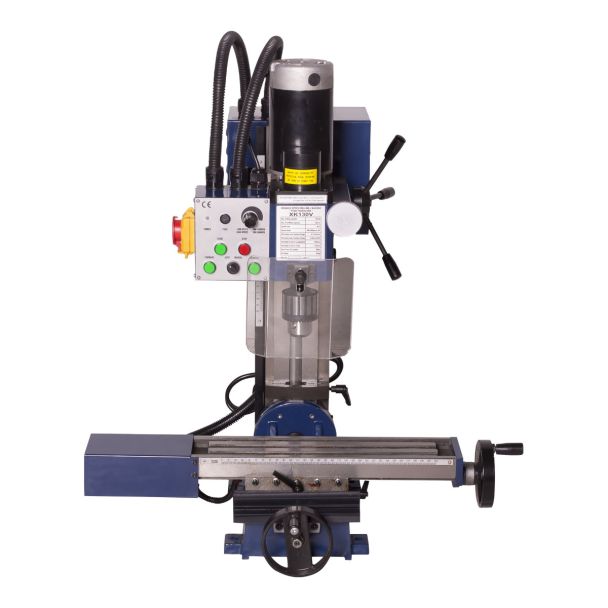

MAC AFRIC Mini Drilling/Milling Machine - 230V - EMILGH131

Specifications:

Auto Feed: Yes

Drilling Cap: 13 MM

End Mill Cap: 16 MM

Face Mill Cap: 30 MM

Longitude Axis: 220 MM

Coss Axis: 100 MM

Headstock Travel: 180 MM

Spindle Taper: MT3

Throat: 167 MM

Table Size: 390 x 92 MM

T-Slot Size: 12 MM

Column Swivel: +-45 Degrees

Main Motor Output: 350 W

Spindle Speed Range (Low): 100 - 1 100 RPM

Spindle Speed Range (High): 100 - 2 500 RPM

Emilgh 131 +Power feeder Overview:

• An ideal benchtop milling machine for the home hobbyist.
• The Mini Milling Machine can power through up to 13mm drilling, 13mm end mills, and 30 facing for the consistent results you need.
• This benchtop mill features the highly stable MT2 spindle that offers versatility, quick and easy tool changes, and exceptional accuracy.
• The variable-speed control and gear drive save you time and hassle as you switch between projects.
• Two speed ranges: low range 0–1100 RPM, and high range 0–2500 RPM.
• Modify the spindle height with the rapid downfeed, or use the micro downfeed to adjust down to 0.001" (one full revolution is 0.060").
• The headstock adjusts up and down the column and tilts 45° left or right relative to the table, and adaptable dovetail ways offer precision and rigidity.
• Llimit block could be set to restrict the amount of head travel for repeated drilling of the same depth.
• This mini milling machine also includes a clear chip guard on the spindle and a rubber chip guard on the ways for safety.
• The Power Feeder included makes milling and ripping of longer or wider stock easy, accurate, and safe.
