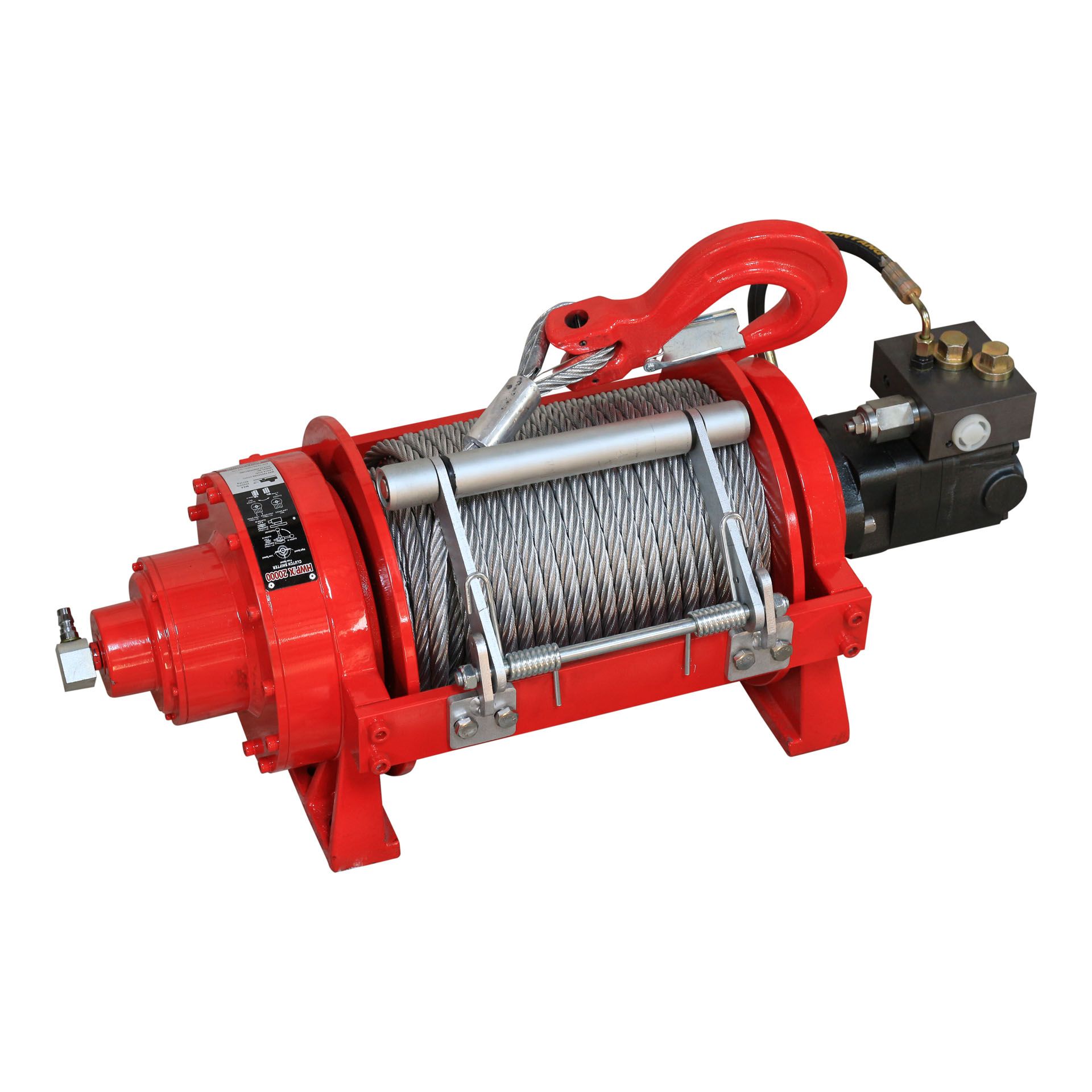

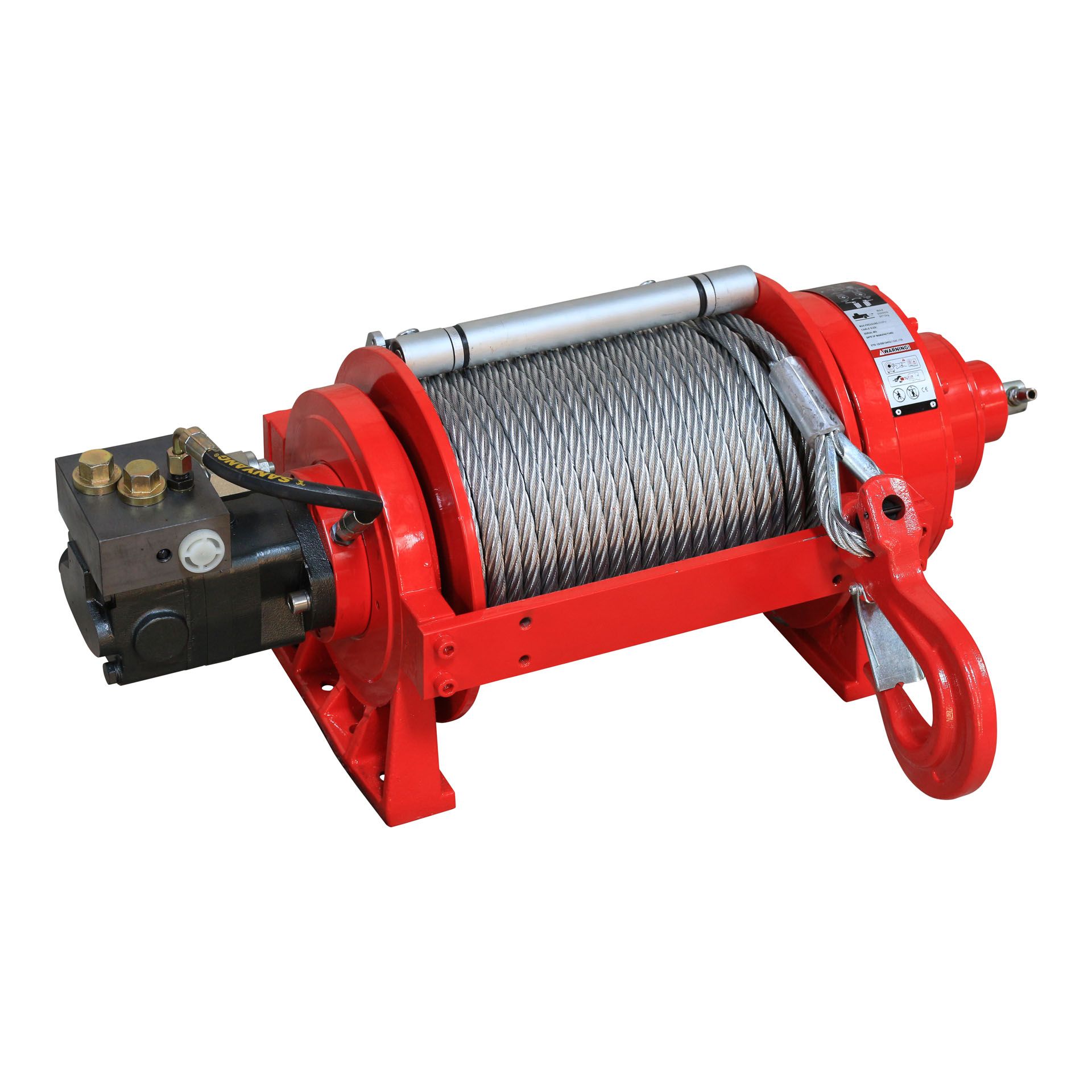

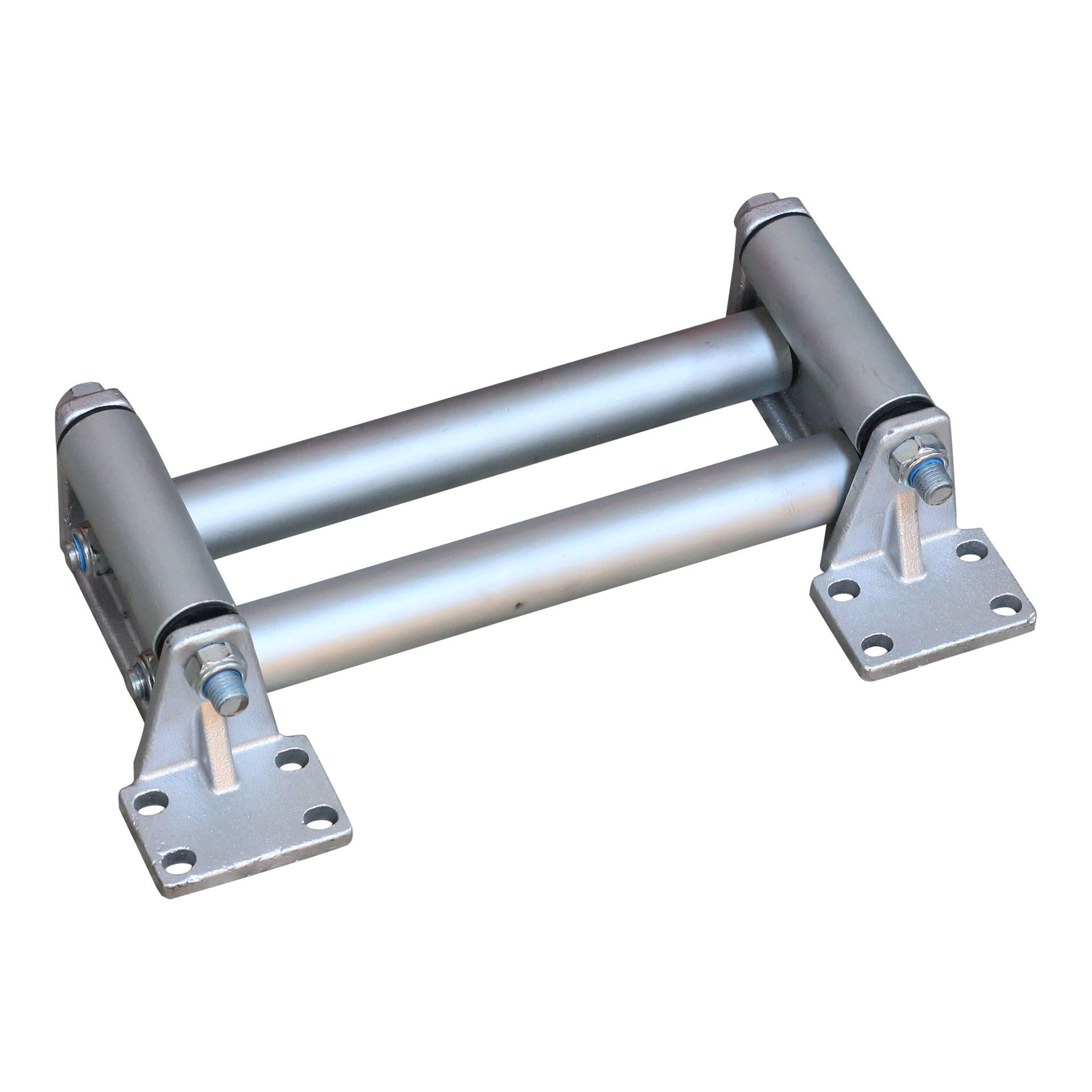

MAC AFRIC HWP20000Y1P Heavy Duty Hydraulic Winch
Air clutch, single-speed
Full steel gears
Two-stage planetary gear reducer
Two speed and clutch integrate with one handgrip
Hydraulic multi-disc brake
Counterbalance valve
| Package Length (cm) | 93.00 |
|---|---|
| Package Width (cm) | 49.00 |
| Package Height (cm) | 50.00 |
| Package Weight (kg) | 189.000000 |
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Line Pull | Low: 1 814 KG - 9 072 KG High: 316 KG - 1 578 KG |
| Motor Type | Hydraulic |
| Motor Specifications | NA |
| Motor Displacement | 100 ML/R |
| Gear Reduction Ratio | 39:1 |
| Cable Length | 48 M (157" IN) |
| Cable Diameter | 14 MM (9/16" IN) |
| Mounting Bolt Pattern | 431 x 64 x 192 MM (17" x 2.5" x 7.6" IN); 8-M14 |
| Mounting Dimensions | 42.8 x 19.2 MM |
| Pressure | 25 - 175 BAR (362.6 - 2 538.1 PSI or 2.5 - 17.5 MPA) |
| Drum Size (Dia x L) | 138 x 260 MM (5.4" x 10.2" IN) |
| Oil Flow | 15 - 75 L/MIN |
| Line Speed | Low: 1.8 - 9 M/MIN High: 8.3 - 50 M/MIN |
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
- The steeper the incline, the greater the resistance, reducing the winch's effective pulling power.
- Figures are based on rolling loads, such as vehicles or trailers on wheels.
- Always ensure your winch is rated above the expected load for the slope you are operating on.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
Important Tips:
- These figures apply to rolling loads (not dead weight or dragging).
- Ensure proper use of snatch blocks or pulley systems for higher loads.
- Regularly inspect your winch and recovery gear for safety.
