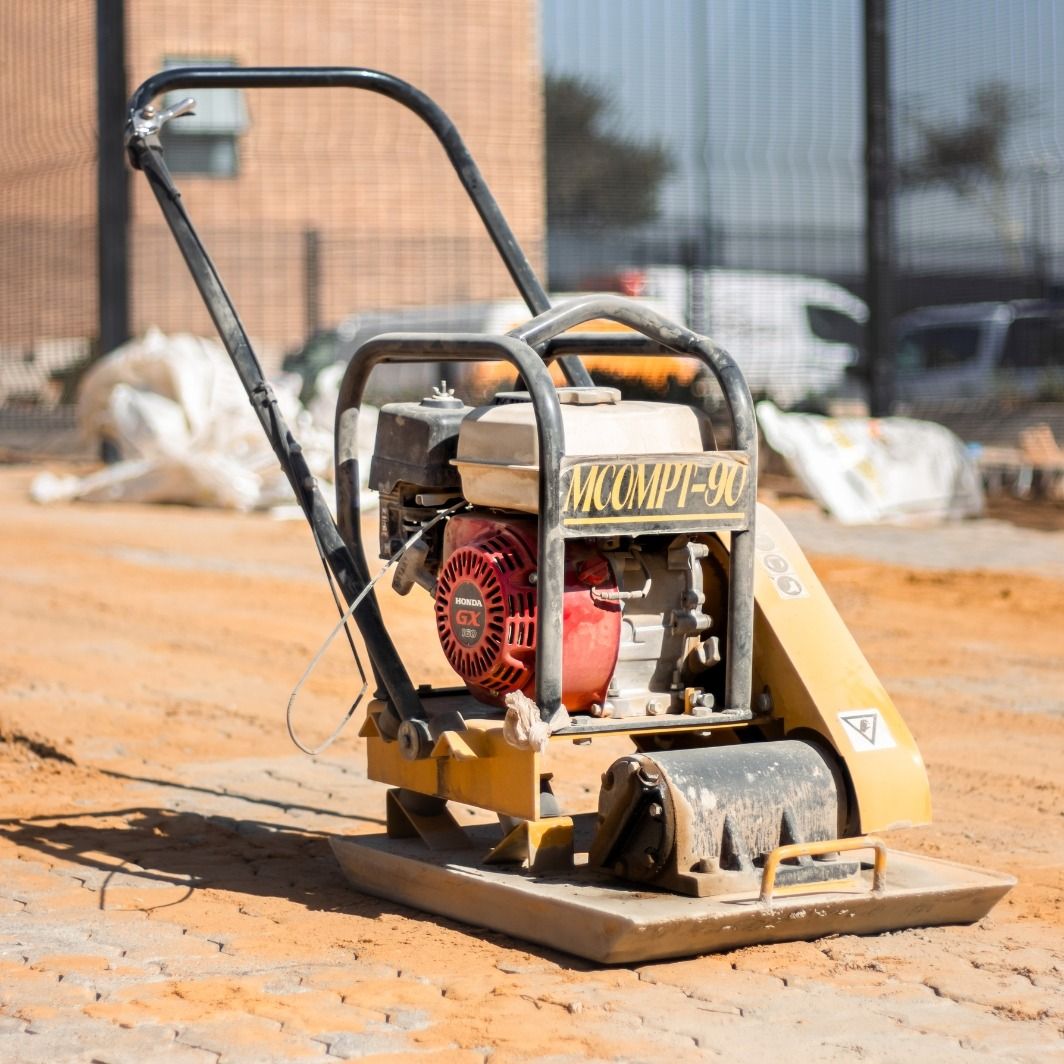

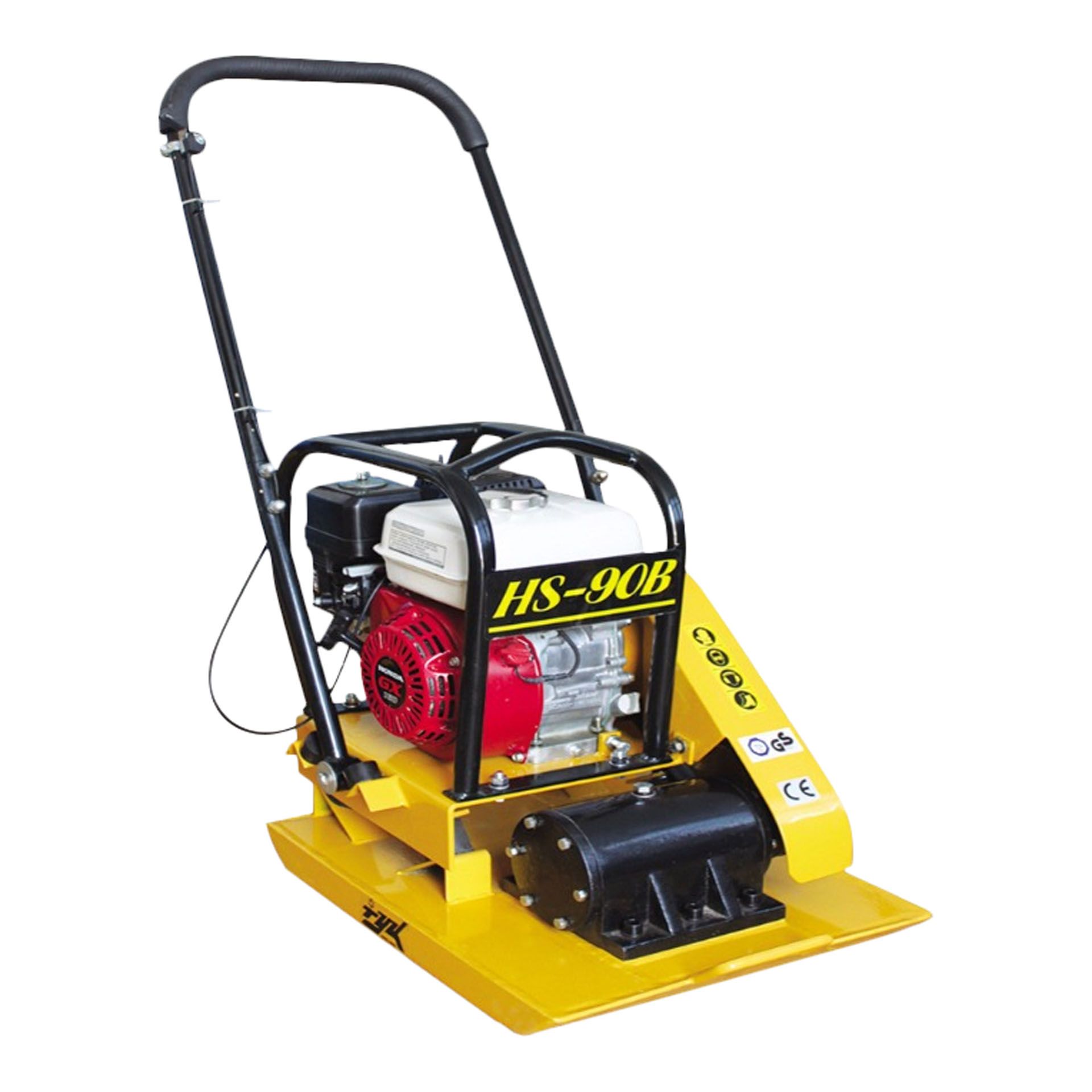

MAC AFRIC HS-090 Vibrating Plate Compactor
The MAC-AFRIC plate compactor offers excellent compaction performance for compacting granular soil or asphalt. Offers a durable vibrator and reliable engine. It works efficiently for various construction sites. Fold-able handle for easy transportation and storage. Open plate provides self-cleaning. Heavy-duty shock mounts reduce vibration to the upper engine & handle.
Technical Specifications
| Feature | Specification |
|---|---|
| Power Output | 4 KW (5.5 HP) |
| Centrifugal Force | 18 KN |
| Operating Weight | 90 KG |
| Base Plate Size | 540 x 440 x 120 MM |
| Displacement | 163 CC |
| Engine Performance | 1 700–3 300 RPM |
| Tank Capacity | 3.6 L |
| Fuel Consumption | 230 g/psh |
| Water Tank Capacity | NA |
| Advance Travel Max (depending on soil) | 0–20 M/MIN |
| Advance Travel Max (depending on asphalt) | 0–20 M/MIN |
| Surface Capacity Max (depending on soil) | 0–20 M/MIN |
| Surface Capacity Max (depending on asphalt) | 0–20 M/MIN |
Safety Tips When Using a Compactor
- It is important to read this entire leaflet before using the plate compactor.
- Plan your work and think ahead to make sure you will always be working safely.
- Petrol is highly flammable. Take care not to cause a fire or explosion.
- This compactor is designed for compacting hardcore, or the final levelling of paving blocks or other surfaces. It is not designed for any other purpose.
- The action of this plate compactor can cause injury or damage if the machine is not used in a careful and controlled way.
- If you have not used a plate compactor before, familiarise yourself with the machine on some straightforward work before you start on the main task.
- The following items of personal protective equipment are minimum requirement: goggles; dust mask (minimum FFP2 protection); ear muffs or plugs giving protection to reduce exposure to 87dB(A) at the ears; safety boots; industrial quality gloves.
- A personal first-aid kit should be available.
Write Your Own Review
| Package Length (cm) | 77.00 |
|---|---|
| Package Width (cm) | 51.00 |
| Package Height (cm) | 73.00 |
| Package Weight (kg) | 97.000000 |
| Water Tank Capacity | NA |
| Base Plate Size | 540 x 440 x 120 MM |
| Power Output | 4 KW (5.5 HP) |
| Displacement | 163 CC |
| Fuel Tank Capacity | 3.6 L |
| Fuel Consumption | 230 g/psh |
