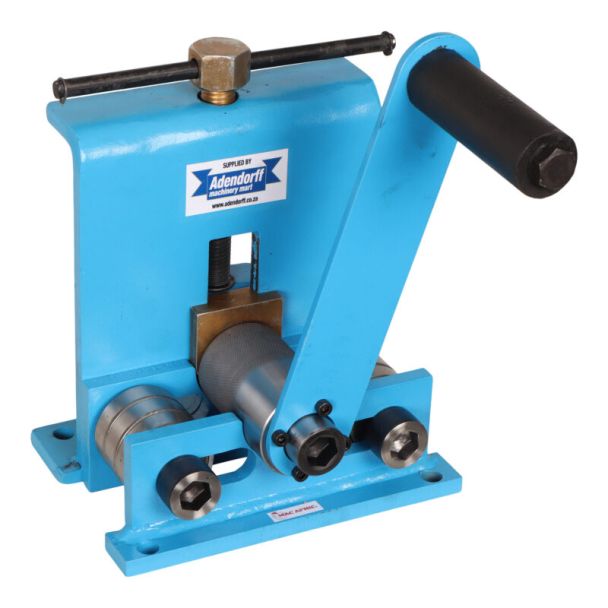

MAC AFRIC FLATBAR RINGROLLER 20-50
This Flat Bar Roller is a versatile and essential tool designed for metalworking and fabrication tasks. It allows you to easily and efficiently bend flat bars into circular shapes, rings, or smooth curves. Constructed with a sturdy frame and adjustable rollers, this tool offers precise control over the bending process. The manual operation, using a handle or crank, ensures flexibility in creating various diameters and bending angles. Ideal for metal fabrication, automotive, construction, and engineering applications, the Flat Bar Roller is a reliable and efficient solution for shaping flat bars with accuracy and ease.
Technical Specifications
| Feature | Specification |
|---|---|
| Roller Diameter | 120 - 1800 mm |
| Material Thickness | ≤ 8 mm |
| Material Width | 20 - 50 mm |
NB: Ratings are subject to material types and are for guideline purposes only.
Key Features
- This flat bar roller is designed to be a stationary unit.
- Mounting plate suitable for 8 mm bolts.
- Do not exceed 8 mm material thickness when rolling.
- This ring roller can roll up to 6 m lengths of material.
- The unit comes pre-greased.
- The unit can be modified to roll 20 mm to 50 mm by adjusting the inner rollers thickness stocks.
What's Included
- Flat Bar Roller x1
- Handle x1
- Cap Screws x4
- 0.08 mm Washers x4
- 3 mm Washers x8
Safety Information
- Do not overload the device. Use appropriate tools for the given task. A correctly selected device will perform the task for which it was designed better and in a safer manner.
- When not in use, store in a safe place, away from children and people not familiar with the device, who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
- Maintain the device in a good technical state. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
- Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
- When transporting and handling the device between the warehouse and the destination, take into account the occupational health and safety principles for manual transport operations which apply in the country.
- Use the device to work elements of parameters conforming with the data given in the technical data table. Do not exceed the permissible dimensions of the worked material.
- Do not work two workpieces at the same time.
- Long workpieces must be supported and set stably for working.
- Mount the device on a stable, dry and flat surface of a size that is adapted to the device and worked material overall dimensions.
The Adendorff Metal Bending Guide
Explore the fundamentals of metal bending, including the different tools available, how to choose the right one, and tips for achieving precise bends across various metals.
Write Your Own Review
| Package Length (cm) | 24.13 |
|---|---|
| Package Width (cm) | 16.26 |
| Package Height (cm) | 24.38 |
| Package Weight (kg) | 10.460000 |
