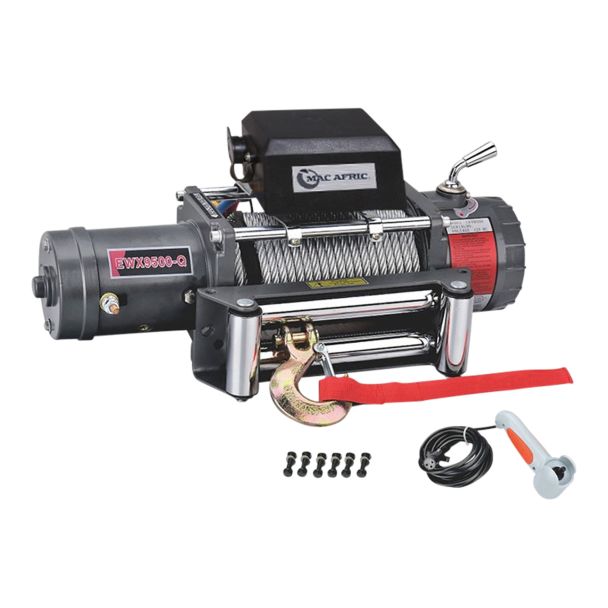

MAC AFRIC EWX9500-Q 12 V with Steel Cable
This heavy-duty winch features a 110:1 gear ratio system for the fast recycling of the steel cable. Features an automatic screw cone braking action with geared ring clutch and series wound motor. Ideal for 4x4 and rescue applications. It can be fitted to almost any surface that can take the load. Commonly used on SUVs, trucks or Bakkies(Pickup Trucks).
| Package Length (cm) | 65.00 |
|---|---|
| Package Width (cm) | 32.40 |
| Package Height (cm) | 34.00 |
| Package Weight (kg) | 41.140000 |
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Line Pull | 4 309 KG @ 5.3 M 2 537 KG @ 26 M |
| Motor Type | Series Wound |
| Motor Specifications | 12V Input: 6.6KW / 8.9HP; Output: 2.8KW / 3.8HP |
| Motor Displacement | NA |
| Gear Reduction Ratio | 230:1 |
| Cable Length | 26 M (85" IN) |
| Cable Diameter | 9.2 MM (3/8" IN) |
| Mounting Bolt Pattern | 254 x 114.3 MM (2.48" x 8.8" IN) |
| Mounting Dimensions | 25.4 x 11.4 MM |
| Pressure | NA |
| Drum Size | NA |
| Oil Flow | NA |
| Line Speed | 2.9 - 6.8 M/MIN |
Technical Manual
Rolling Load Capacity Guide - 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
- The steeper the incline, the greater the resistance, reducing the winch's effective pulling power.
- Figures are based on rolling loads, such as vehicles or trailers on wheels.
- Always ensure your winch is rated above the expected load for the slope you are operating on.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
- These figures apply to rolling loads (not dead weight or dragging).
- Ensure proper use of snatch blocks or pulley systems for higher loads.
- Regularly inspect your winch and recovery gear for safety.
