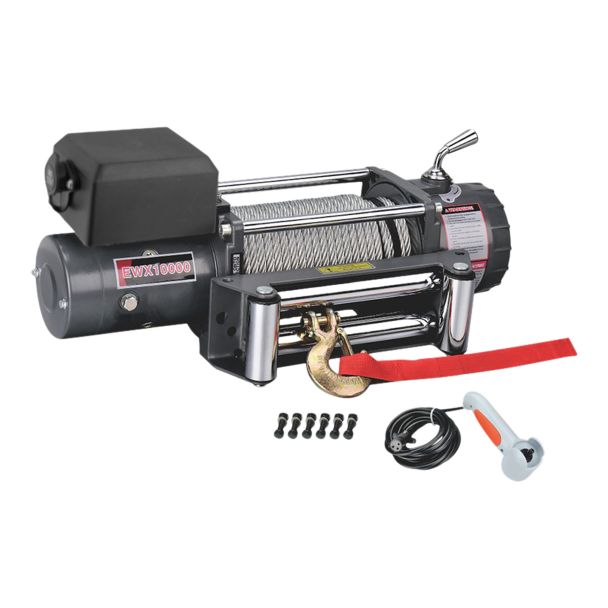

MAC AFRIC EWX 10000U 12 V Heavy Duty Winch
Conquer the toughest challenges with the MAC AFRIC EWX 10000U 12V Heavy Duty Winch - your ultimate companion for off-road adventures! Boasting a robust rated line pull of 4,536 kg (10,000 lbs) at 5.3 meters and 2,571 kg (5,668 lbs) at 26 meters, this winch delivers powerful performance to overcome any obstacle in your path. Powered by a reliable 12V Series Wound motor with an input of 4.3 KW / 5.8 HP and an output of 2.3 KW / 3.1 HP, along with a gear reduction ratio of 230:1, this winch ensures smooth and efficient operation while its 26-meter cable length allows you to tackle various recovery tasks with ease. Elevate your off-road experience with the MAC AFRIC EWX 10000U 12V Heavy Duty Winch and embark on thrilling adventures with the confidence of unstoppable power!
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Line Pull | 10 000 lbs (4536 kgs) |
| Motor Type | Series Wound |
| Motor Specifications | 12V: Input: 4.3 KW / 5.8 HP; Output: 2.3 KW / 3.1 HP |
| Gear Reduction Ratio | 230:1 |
| Cable Length | 26 M (85" IN) |
| Cable Diameter | 9.2 MM (3/8" IN) |
| Mounting Bolt Pattern | 10" × 4.5" (254 mm × 114.3 mm), 4-M10 |
| Mounting Dimensions | 25.4 x 11.4 MM |
| Line Speed | 1.9 - 6.3 M/MIN |
Performance Table – Line Pull, Speed & Current
| Line Pull (lbs / kgs) | Line Speed ft/min (m/min) | Current (12 V DC) |
|---|---|---|
| 0 (0) | 20.7 (6.3) | 80 A |
| 4000 (1814) | 12.5 (3.8) | 230 A |
| 7000 (3175) | 9.5 (2.9) | 290 A |
| 10000 (4536) | 6.2 (1.9) | 360 A |
Rope Capacity by Layer
| Layer | Rated Line Pull lbs (kgs) | Total Rope on Drum ft (m) |
|---|---|---|
| 1 | 10000 (4536) | 17.4 (5.3) |
| 2 | 7969 (3615) | 39.4 (12.0) |
| 3 | 6624 (3005) | 65.0 (19.8) |
| 4 | 5667 (2571) | 85.3 (26.0) |
Advantages of Series Wound Motors
| Advantage | Description |
|---|---|
| High Starting Torque | Ideal for applications needing strong initial force like electric vehicles and industrial machinery. |
| Robustness | Can handle overloads and variable loads well, making it suitable for harsh conditions. |
| Simple Control | Requires less complex control systems compared to permanent magnet motors. |
| Variable Speed Operation | Can operate over a wide speed range with appropriate control. |
| Cost-Effectiveness | More economical in high-torque, heavy-duty uses compared to permanent magnet motors. |
| High Power Density | Delivers strong performance in a compact design, beneficial in automotive and aerospace settings. |
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
- The steeper the incline, the greater the resistance, reducing the winch's effective pulling power.
- Figures are based on rolling loads, such as vehicles or trailers on wheels.
- Always ensure your winch is rated above the expected load for the slope you are operating on.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
Important Tips:
- These figures apply to rolling loads (not dead weight or dragging).
- Ensure proper use of snatch blocks or pulley systems for higher loads.
- Regularly inspect your winch and recovery gear for safety.
