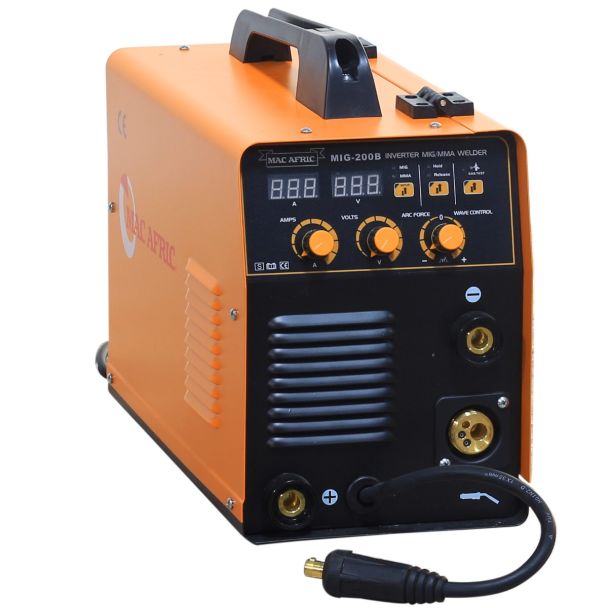

MAC AFRIC D.C. Model 200 A MIG/MMA Inverter Welder
Introducing the MIG 200 Model: A versatile 200 AMP welder with dual-purpose functionality. Features include MIG (Gas/No Gas) and MMA welding capabilities, portability, and wide compatibility with flux and MIG/MAG welding. Perfect for diverse welding tasks.
Technical Specifications – MIG / FLUX
| Feature | Specification |
|---|---|
| Input Voltage | 1PH 230 V, 50 Hz |
| Input Current | 34 A |
| Input Power | 7.7 kVA |
| No-Load Voltage | 60 V |
| Welding Current | 30 – 200 A |
| Welding Voltage | 15.5 – 24 V |
| Rated Duty Cycle | 35% |
| Welding Wire Diameter | 0.6 – 1.0 mm |
| Electrode Diameter | N/A |
| Efficiency | 85% |
| Power Factor | 0.7 |
| Protection Class | P21S |
| Insulation Class | F |
Technical Specifications – MMA
| Feature | Specification |
|---|---|
| Input Voltage | 1PH 230 V, 50 Hz |
| Input Current | 30 A |
| Input Power | 6.8 kVA |
| No-Load Voltage | 60 V |
| Welding Current | 20 – 160 A |
| Welding Voltage | 20.8 – 26.4 V |
| Rated Duty Cycle | 35% |
| Welding Wire Diameter | N/A |
| Electrode Diameter | 1.0 – 4.0 mm |
| Efficiency | 85% |
| Power Factor | 0.7 |
| Protection Class | P21S |
| Insulation Class | F |
Write Your Own Review
| Package Length (cm) | 58.00 |
|---|---|
| Package Width (cm) | 35.00 |
| Package Height (cm) | 34.00 |
| Package Weight (kg) | 18.000000 |
