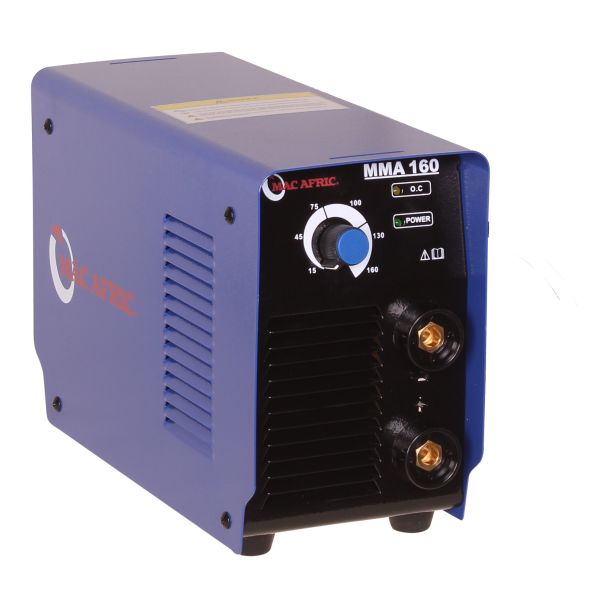

MAC AFRIC D.C. MODEL 160 Inverter Welder IBGT Technology
The ARC MMA EWELDS161 is a next-generation, cost-effective welding
machine that combines portability, advanced technology and user-friendly
operation. Its compact design and robust features make it an ideal choice for
a wide range of welding application.
Technical Specifications
| Specification | Value |
|---|---|
| Power Voltage | 1 Phase 220 V ± 15% |
| Frequency | 50/60 Hz |
| Rated Input Current | 25.5 A |
| Output Current Adjustment | 40 – 140 A |
| Output Voltage | 21.6 – 25.6 V |
| No-Load Voltage | 20 V (with VRD), 58 V |
| Duty Cycle @ 40°C | 20% |
| Power Factor | 0.65 |
| Efficiency | 86% |
| Insulation Grade | F |
| Housing Protection Grade | IP21 |
