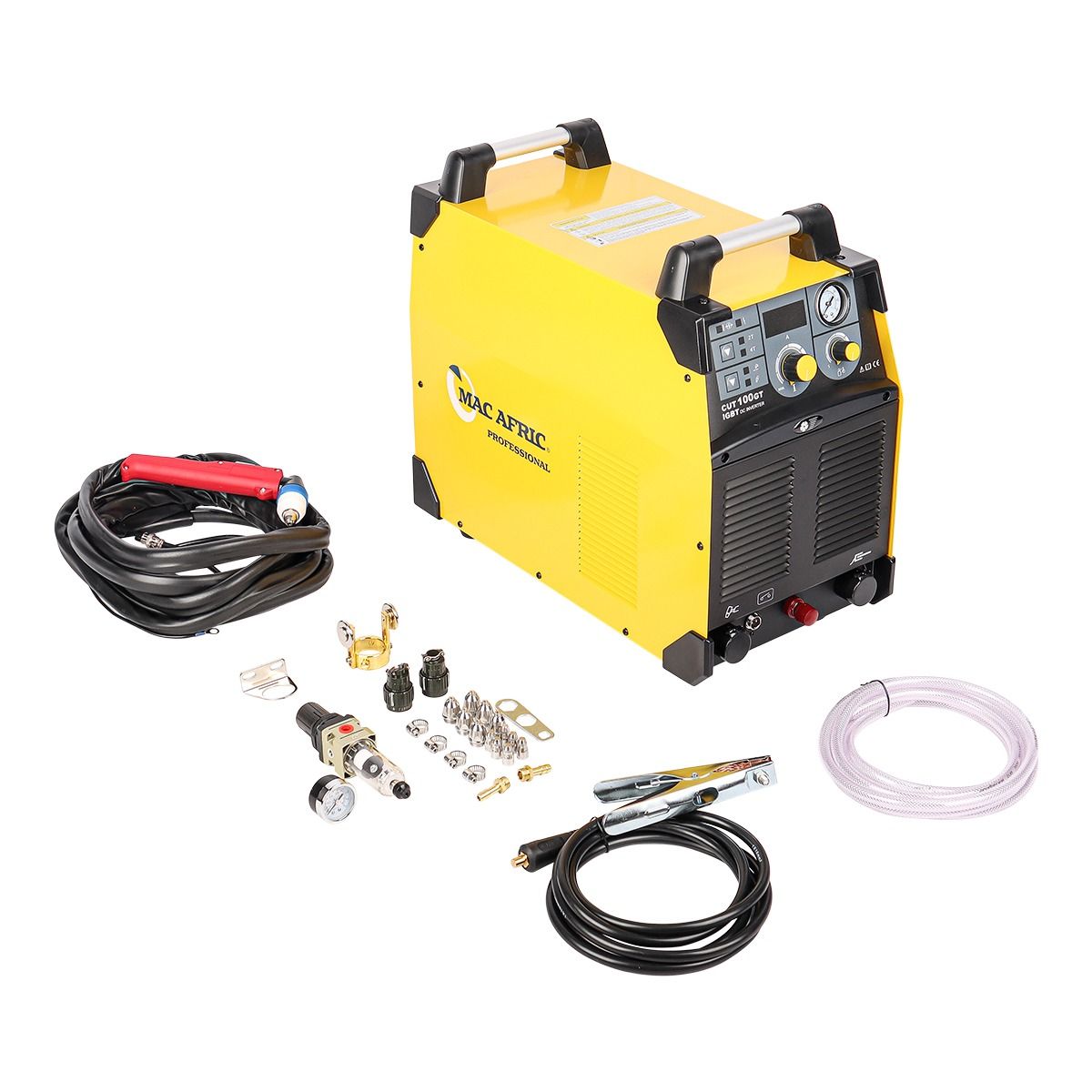

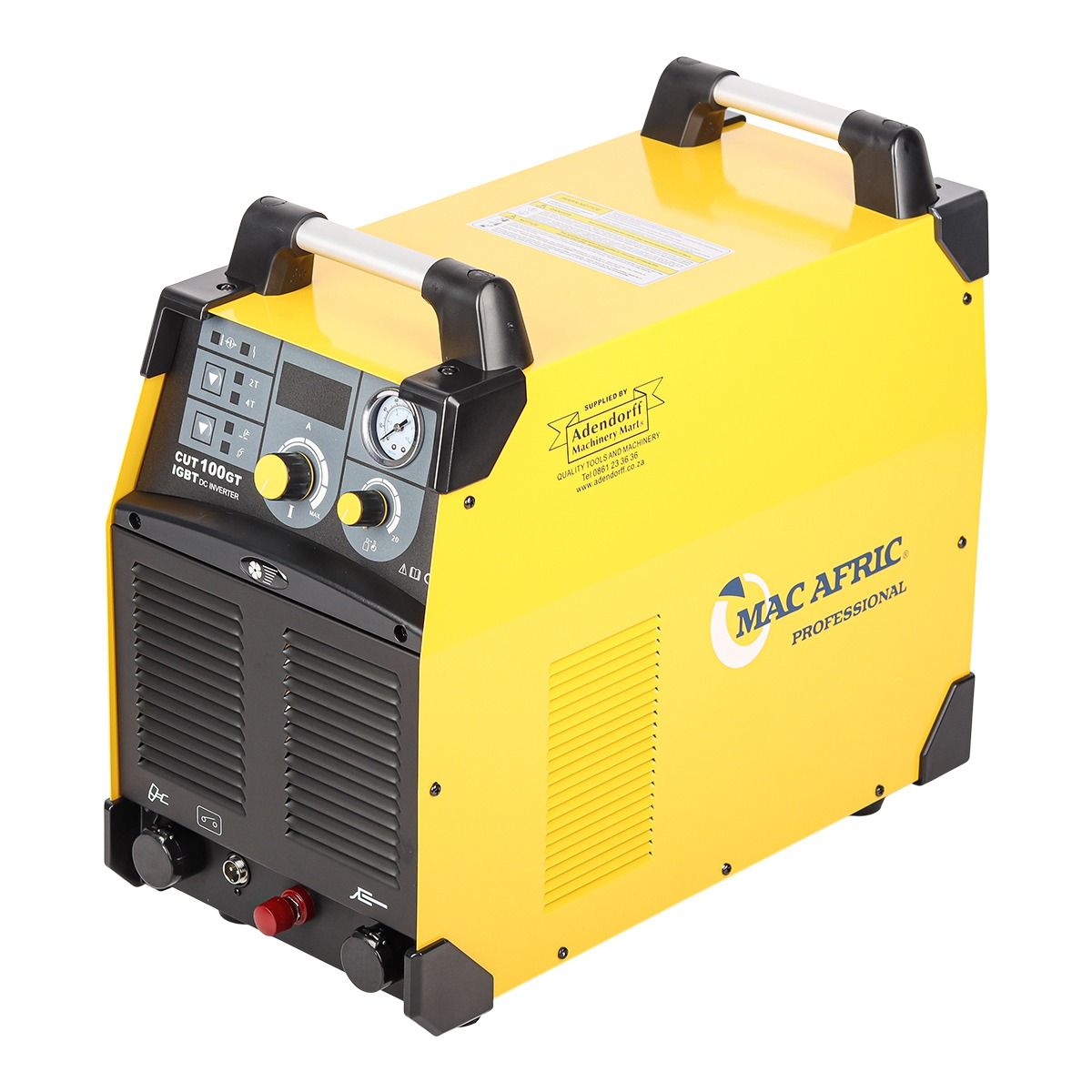

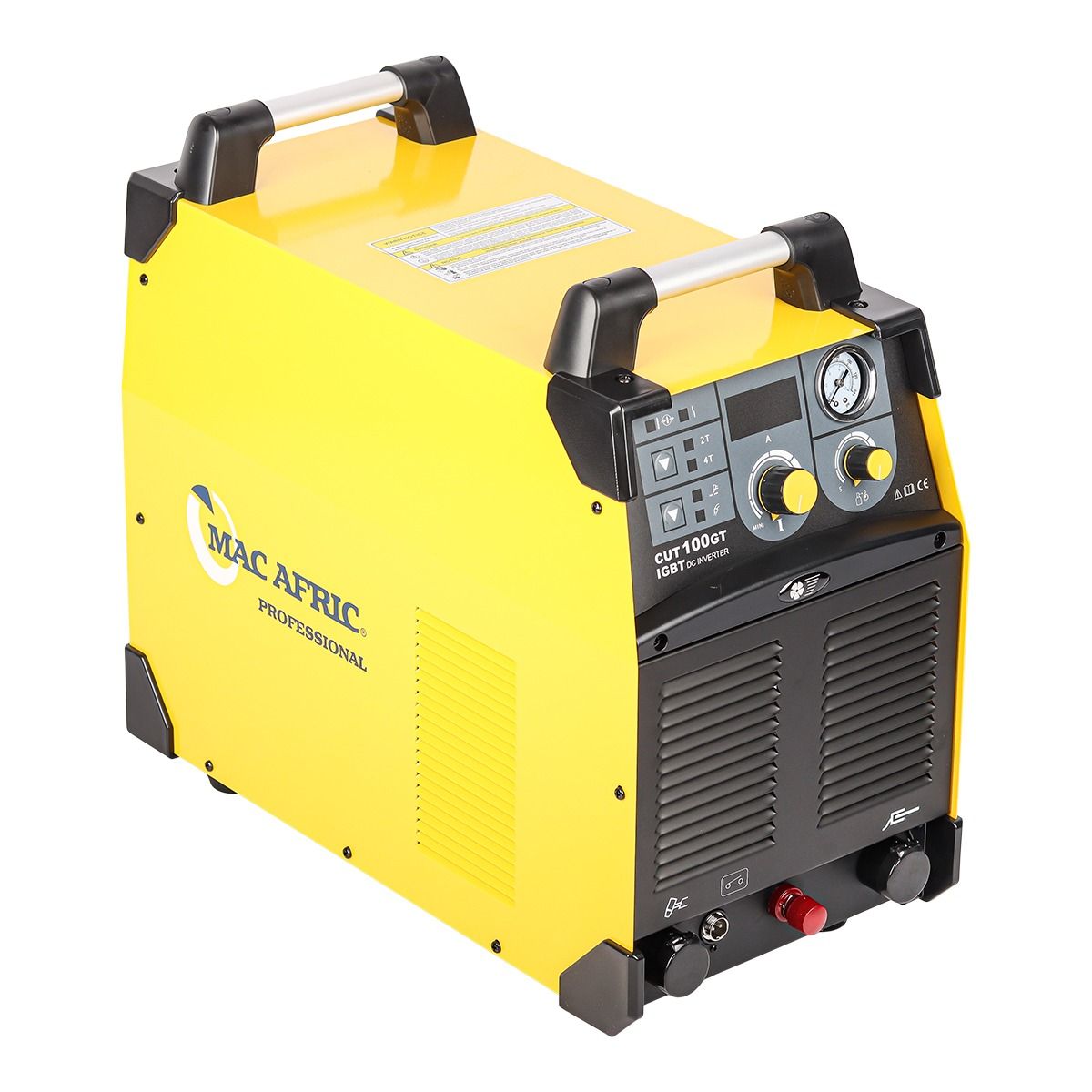

MAC AFRIC CUT100GT Professional 380 V Plasma Cutter
A professional-grade 380V plasma cutter that has the option to be controlled by a CNC device for precision programmed cuts.

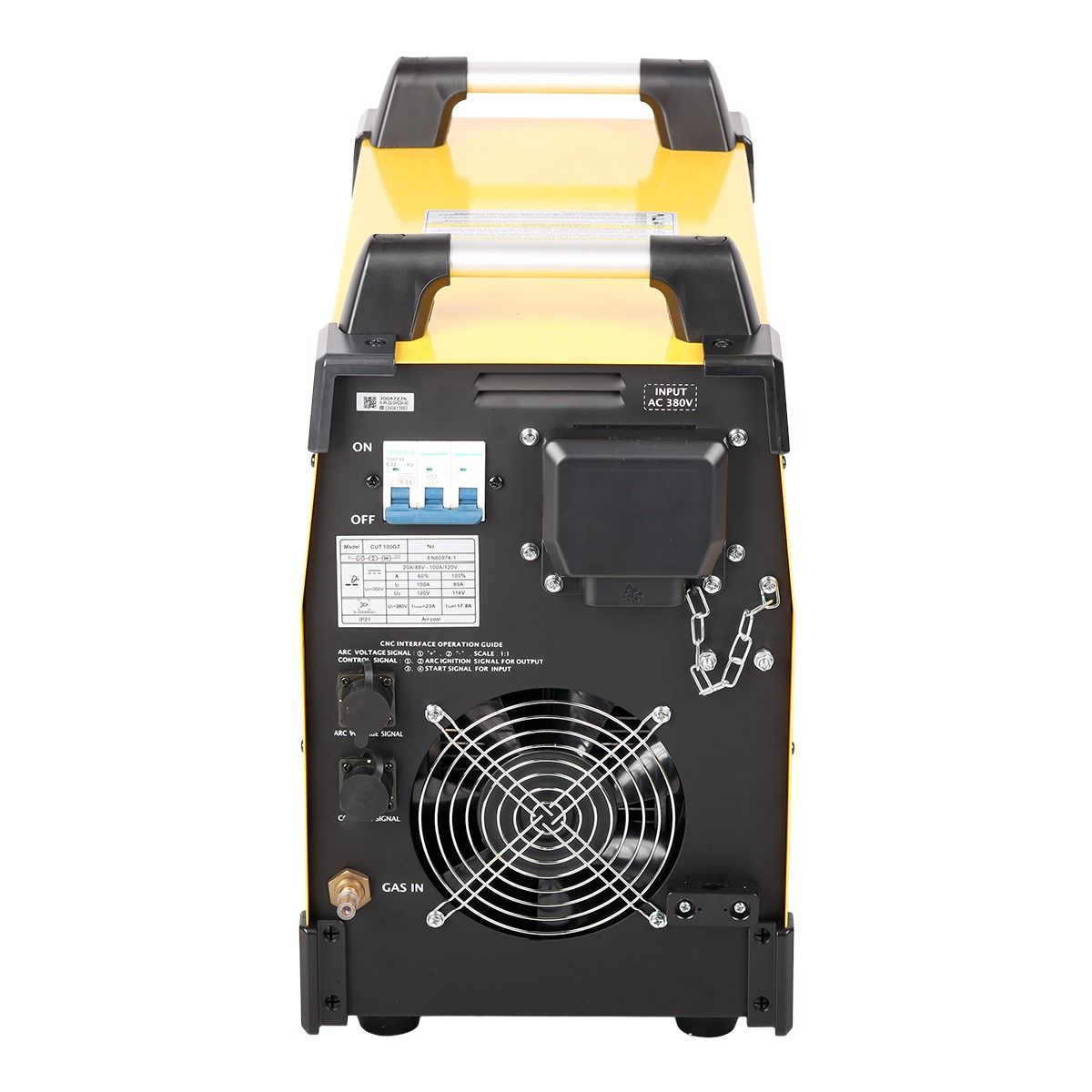

NB: CNC plug is to fire the torch only (compatible CNC equipment are not included).
Three Proof Air Duct Cooling Design (water-resistant, Windproof & Wind Erosion Proof) resistant to humidity and light exposure
IGBT Inverter Technology
High Duty Cycle
High efficiency & energy saving
Voltage Adaptive Range
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 380 V (Three Phase) |
| Frequency | 50 HZ |
| Rated Input Current | 23 A |
| Rated Power | 15.1 KVA |
| Output Current Adjusting Range | 20 – 100 A |
| Rated Output Voltage | 120 V |
| Duty Cycle | 0.4 |
| Efficiency | 0.85 |
| Power Factor | 0.9 |
| Back Blowing Time | 5 – 25 S |
| Arcing Mode | High frequency Arc Ignition |
| Cutting Capacity | 1 – 25 mm |
Recommended Cutting Settings – EWELDP100
| Material | Thickness | Amperage Range | Air Pressure | Notes |
|---|---|---|---|---|
| Mild Steel | 1 – 3 mm | 30 – 40 A | 4.5 – 5.0 bar | Clean edges, minimal dross |
| Mild Steel | 4 – 6 mm | 50 – 70 A | 5.0 bar | Smooth cutting |
| Mild Steel | 8 – 12 mm | 70 – 90 A | 5.0 – 5.5 bar | May require slower travel |
| Mild Steel | 12 – 16 mm | 90 – 100 A | 5.5 – 6.0 bar | Max capacity, clean air critical |
| Stainless Steel | 3 – 6 mm | 50 – 70 A | 5.0 bar | Slower cutting than mild steel |
| Aluminium | 3 – 10 mm | 40 – 80 A | 5.0 – 5.5 bar | Requires steady hand, clean air |
Key Features
- Heavy-duty industrial plasma cutter suitable for workshop or fabrication use
- High-frequency arc ignition for smooth starting
- Adjustable output current from 20 – 100 A
- Capable of cutting steel up to 25 mm thick
- Back blowing function for extended consumable life
- Stable performance with efficient duty cycle and high power factor
Troubleshooting Guide
- Machine Will Not Start: Check power input, breakers, or faulty switch.
- Torch Will Not Ignite: Check air pressure, consumables, and ground clamp.
- Arc Starts But Cuts Poorly: Reduce speed, increase amps, use dry air.
- Excessive Dross: Adjust speed, air pressure, and replace worn consumables.
- Overheating: Respect duty cycle, clear vents, reduce amperage.
- Air Flow But No Arc: Check trigger switch, torch latch, and board issues.
Write Your Own Review
| Package Length (cm) | 59.18 |
|---|---|
| Package Width (cm) | 35.81 |
| Package Height (cm) | 60.20 |
| Package Weight (kg) | 29.160000 |
| Duty Cycle | 60% |
| Voltage | 3P AC380V |
| Rated Input Current | 23 A |
| Frequency | 50 HZ |
