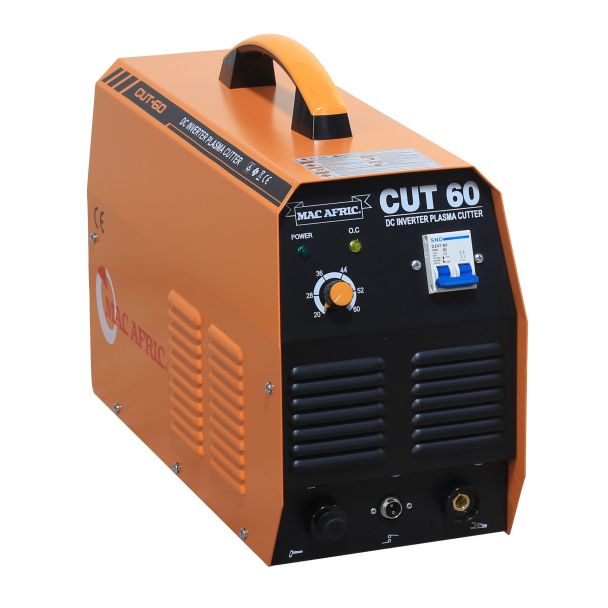

MAC AFRIC CUT 60 Inverter Plasma Cutter

Technical Specifications

Feature	Specification
Power Voltage	230 V (Single Phase) @ 50 HZ ± 15%
Input Current	45 A
Input Power	10.4 KVA
No Load Voltage	260 V
Welding Current Range	20 – 60 A
Welding Voltage	88 – 104 V
Rated Duty Cycle	0.6
Max Cutting Thickness	18 mm
Efficiency	0.85
Power Factor	0.7
Protection Class	IP21S
Insulation Class	F
Pressure of Air Compressor	4 – 5 Bar (58 – 73 PSI)
Working Air Pressure	4 – 5 Bar (58 – 73 PSI)
Cutting Capacity	1 – 15 mm (Mild Steel), 1 – 8 mm (Stainless Steel)

Key Features

High-performance plasma cutting for mild and stainless steel
Dual unit compatibility: EWELDP059 (220V) & EWELDP060 (380V)
Rated up to 18 mm cutting thickness
Compatible with regulated compressed air systems
Efficient and portable for workshop or industrial applications

Recommended Cutting Settings

Material	Thickness	EWELDP059 (220V)	EWELDP060 (380V)	Air Pressure	Notes
Mild Steel	1 – 3 mm	20 – 30 A	20 – 30 A	4.5 bar	Smooth sheet metal cuts
Mild Steel	4 – 6 mm	30 – 40 A	40 – 50 A	5.0 bar	Clean cutting edges
Mild Steel	8 – 10 mm	40 – 50 A	50 – 70 A	5.0 – 5.5 bar	059 near max capacity
Mild Steel	12 – 16 mm	Not recommended	70 – 100 A	5.5 – 6.0 bar	060 handles heavy plate
Stainless Steel	3 – 6 mm	25 – 40 A	40 – 60 A	5.0 bar	Slower travel required
Aluminium	3 – 8 mm	25 – 40 A	40 – 60 A	5.0 – 5.5 bar	Steady hand, clean dry air

Key Differences Between Units

EWELDP059 (Single Phase)
• Portable, ideal for workshop and light-duty tasks.
• Cuts up to 8–10 mm mild steel.
• Operates on 220V standard supply.
EWELDP060 (Three Phase)
• Industrial-grade, high-capacity cutting.
• Cleanly cuts up to 16–20 mm mild steel (severance up to 25 mm).
• Runs on 380V 3-phase with superior arc stability.

Frequently Asked Questions

Why won't my plasma cutter turn on?

Check that the correct power supply is connected (220V for 059, 380V for 060), and inspect the fuse, breaker, and power switch.

Why isn't the torch igniting?

Air pressure may be too low, consumables could be worn, or the ground clamp isn't secure. Set air to 4.5–6 bar and check all connections.

What causes weak or inconsistent cutting arcs?

Likely causes include low amperage, moisture in air lines, or incorrect torch standoff. Use dry air, raise amps, and maintain a 1.5–3 mm torch gap.

Why is there a lot of slag (dross) on my cuts?

This happens if the travel speed is too slow, your nozzle is worn, or the air pressure isn't optimal. Adjust your speed and check the air settings and consumables.

How do I prevent my machine from overheating?

Ensure you stay within the rated duty cycle, clean air vents regularly, and give the unit time to cool between heavy use sessions.

More Information
Package Length (cm)	58.50
Package Width (cm)	32.00
Package Height (cm)	42.00
Package Weight (kg)	19.000000
Specifications Description	Specifications: Power Voltage: 230 V (Single Phase) @ 50 HZ Input Current: 45 A Input Power: 10.4 KVA No Load Voltage: 260 V Welding Current Range: 20 - 60 A Welding Voltage: 88 - 104 V Rated Duty Cycle: 60% Max Cutting Thickness: 18 MM Efficiency: 85% Power Factor: 0.7 Protection Class: IP21S Insulation Class: F Pressure of Air Compressor: 4 - 5 BAR (58 - 73 PSI) Cutting Capacity: 1 - 15 MM (Mild Steel), 1 - 8 MM (Stainless Steel)
