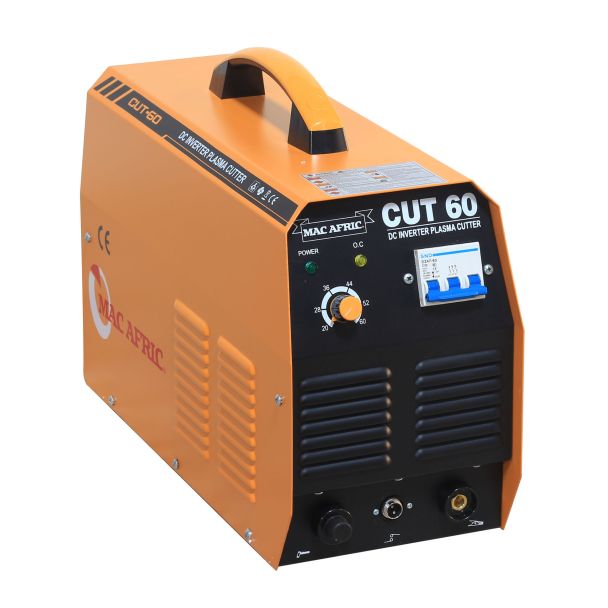

MAC AFRIC CUT 60 Inverter Plasma Cutter (380 V)

Technical Specifications

Feature	Specification
Power Voltage	380 V (Three Phase) @ 50 HZ
Input Current	14 A
Input Power	9.2 KVA
No Load Voltage	260 V
Welding Current Range	20 – 60 A
Welding Voltage	88 – 104 V
Rated Duty Cycle	60%
Max Cutting Thickness	18 mm
Efficiency	85%
Power Factor	0.9
Protection Class	IP21S
Insulation Class	F
Pressure of Air Compressor	4 – 5 Bar (58 – 73 PSI)
Cutting Capacity	1 – 15 mm (Mild Steel), 1 – 8 mm (Stainless Steel)

Key Features

High efficiency and stable performance
Up to 18 mm max cutting thickness
60% rated duty cycle suitable for frequent use
Supports both mild steel and stainless steel cutting
Compact three-phase system with good power factor

Recommended Cutting Settings

Material	Thickness Range	Amperage Setting	Air Pressure	Cut Speed	Torch Height
Mild Steel	1–3 mm	20 – 30 A	4.5 – 5.5 bar	Fast	1.5 mm off surface
Mild Steel	4–8 mm	35 – 50 A	5.0 – 6.0 bar	Medium	1.5 – 2 mm
Stainless Steel	1–4 mm	25 – 40 A	5.0 – 6.0 bar	Medium	1.5 – 2 mm
Aluminium	1–5 mm	30 – 45 A	5.5 – 6.5 bar	Slow	1.5 mm off surface

Setup Tips

Always connect clean, dry compressed air
Use a moisture trap or inline air filter
Ensure work clamp is tightly connected to clean metal
Keep torch at a steady distance and move at consistent speed
Pilot arc models can start without contact — ideal for painted/rusted metal

Frequently Asked Questions

Why won't my plasma cutter start or cut?

Check the earth connection, ensure dry air is flowing, and verify the torch is correctly triggered. You should hear a click and air flow before the arc.

Why does my cut look rough or irregular?

This may be due to worn tips/electrodes, torch height too high, or inconsistent air pressure. Maintain 1.5 mm torch height and replace consumables regularly.

What air pressure should I use for different materials?

Typically, 4.5 to 6.5 bar depending on the thickness and material type. Refer to the settings table above for exact ranges.

Can I use this plasma cutter on painted or rusted metal?

Yes, especially if it's a pilot arc model, which doesn’t require direct contact to start the arc—ideal for rough or dirty surfaces.

What safety gear should I use when cutting?

Use proper gloves, safety goggles or a cutting shield, and work in a well-ventilated area. Always wear PPE when operating plasma cutting tools.

More Information
Package Length (cm)	58.50
Package Width (cm)	32.00
Package Height (cm)	42.00
Package Weight (kg)	19.000000
Specifications Description	Specifications: Power Voltage: 380 V (Three Phase) @ 50 HZ Input Current: 14 A Input Power: 9.2 KVA No Load Voltage: 260 V Welding Current Range: 20 - 60 A Welding Voltage: 88 - 104 V Rated Duty Cycle: 60% Max Cutting Thickness: 18 MM Efficiency: 85% Power Factor: 0.9 Protection Class: IP21S Insulation Class: F Pressure of Air Compressor: 4 - 5 BAR (58 - 73 PSI) Cutting Capacity: 1 - 15 MM (Mild Steel), 1 - 8 MM (Stainless Steel)
