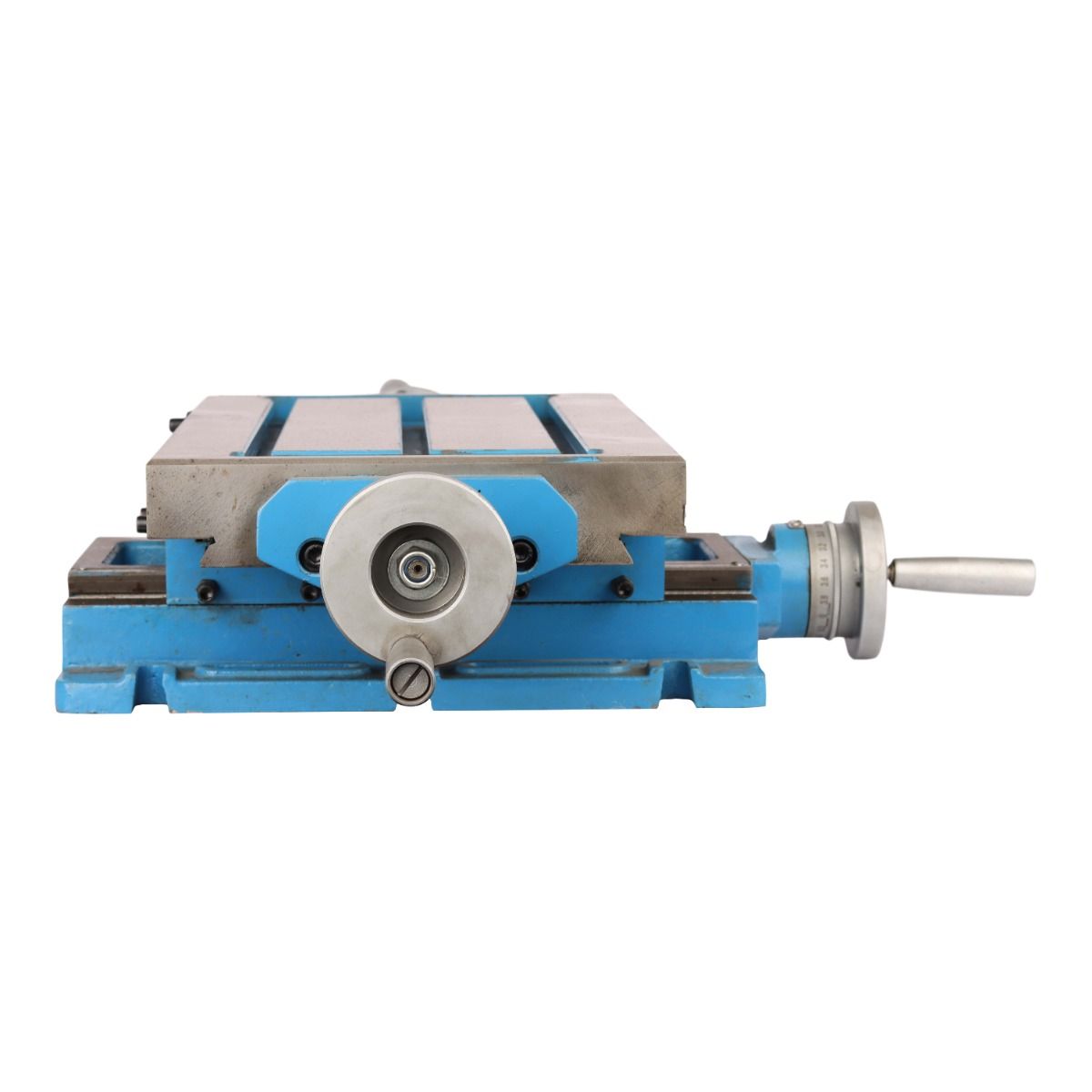

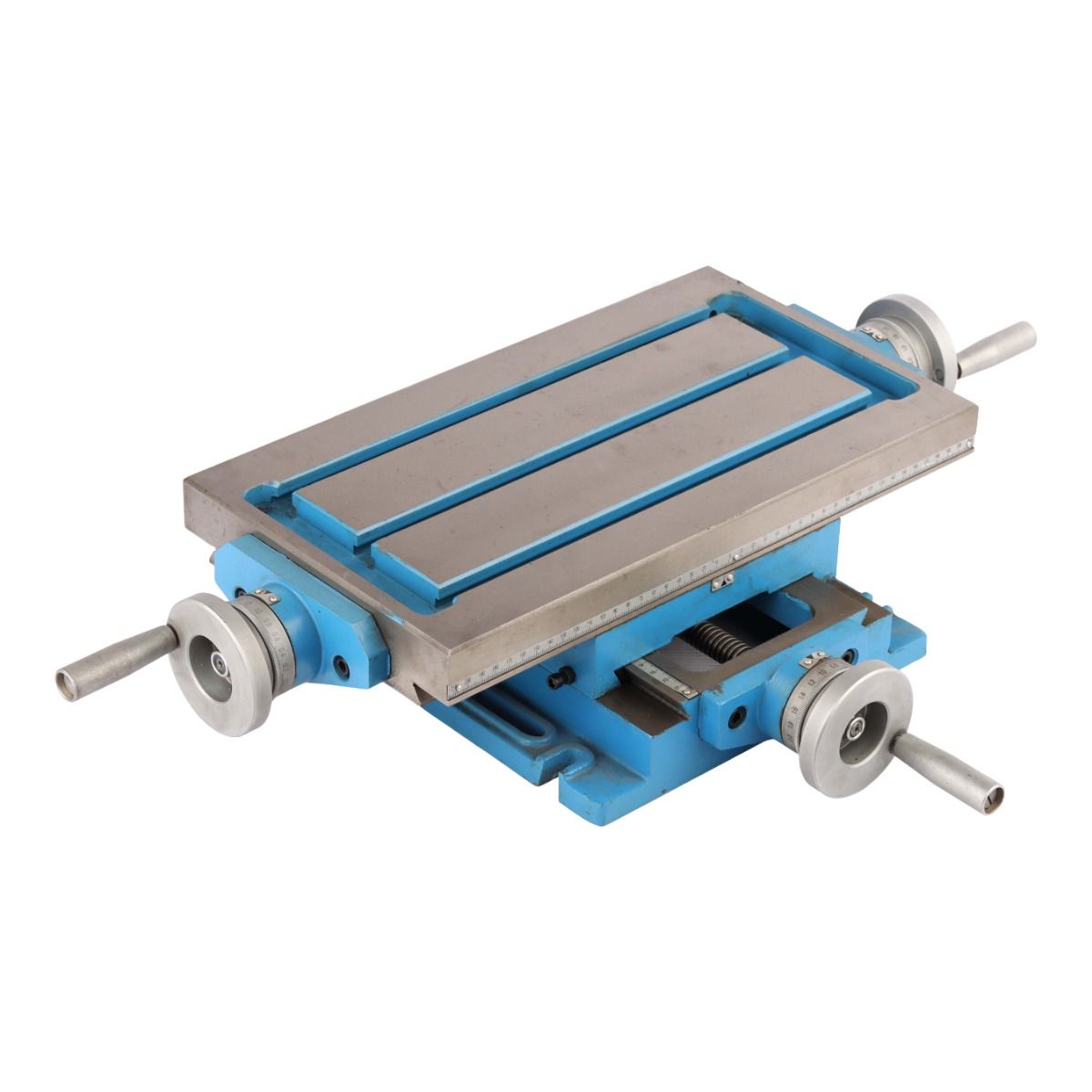

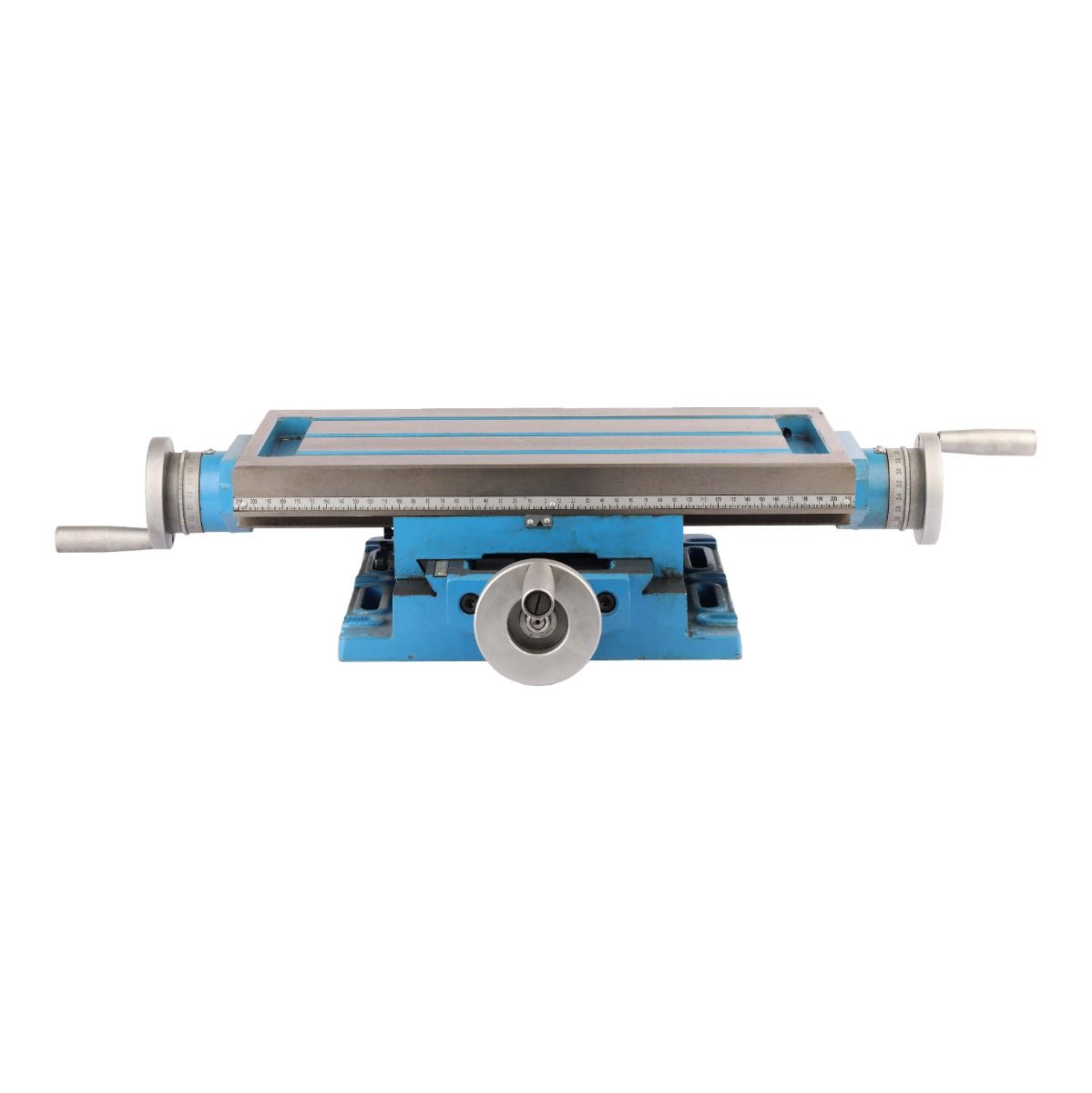

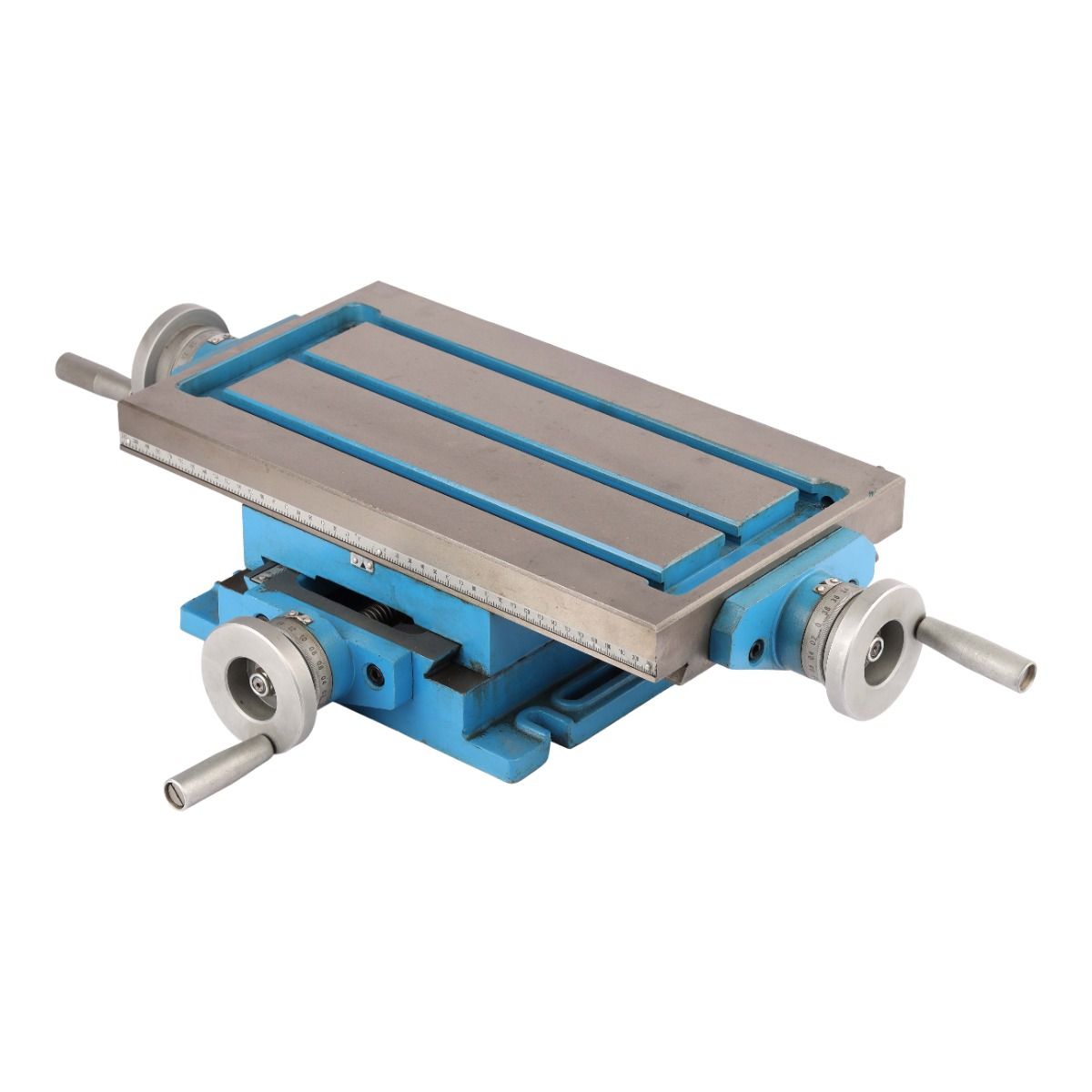

MAC AFRIC AKP Cross Slide Table - 430 MM x 240 MM (204)
A precision engineering cross slide table. It can be fitted to engineering lathe machines, milling machines or drilling machines.
Technical Specifications
| Feature | Specification |
|---|---|
| Table Width | 240 MM |
| Table Length | 425 MM |
| Cross Travel | 225 MM |
| Longitudinal Travel Length | 150 MM |
| Overall Height | 125 MM |
| T-Slot Width | 27 MM |
| Number Of Table Slots | 3 PCS |
| Base Length | 340 MM |
| Base Width | 270 MM |
| Dial Graduation | 0.02 MM |
| Travel Per Dial Revolution | 0.2 MM |
| Base Bolt Spacing | 250 x 250MM |
Write Your Own Review
| Package Length (cm) | 60.00 |
|---|---|
| Package Width (cm) | 44.00 |
| Package Height (cm) | 19.00 |
| Package Weight (kg) | 46.000000 |
| Base Bolt Spacing | 250 x 250MM |
| Table Length | 430 MM |
| Cross Travel | 330 MM |
