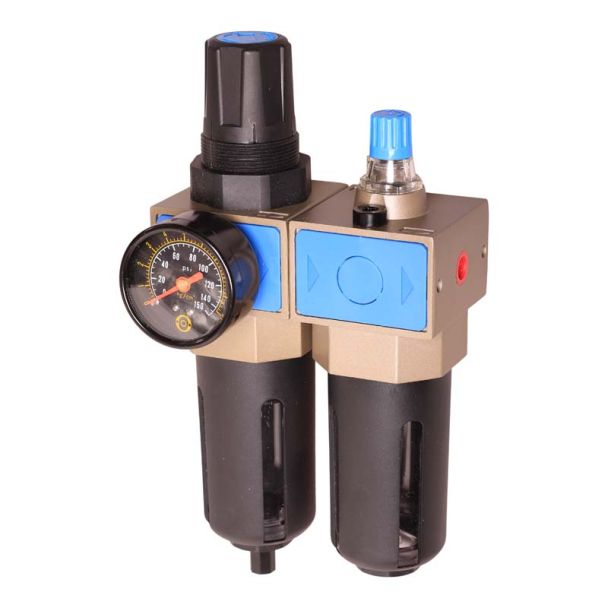

This air filter, regulator, and lubricator is designed to remove dust, water, and impurities from compressed air while regulating output to a constant pressure. It atomises lubricant into the airflow, delivering continuous internal lubrication to air tools for smoother operation and longer service life.
| Feature | Specification |
|---|---|
| Air Working Temp. | -10° to 60° C |
| Operating Pressure | 0.5 - 10 BAR (7 - 145 PSI) |
| Max Pressure | 10 BAR (150 PSI) |
| Air Inlet Size | 1/2" IN Threaded Female |
| Air Outlet Size | 1/2" IN Threaded Female |
| Adjustments | Air Flow, Oil Flow Adjustments, Relief Valve |
| Accuracy | 4.5 PSI (0.3 BAR) |
| Measurements | PSI, KG/CM² |
| Package Length (cm) | 27.00 |
|---|---|
| Package Width (cm) | 15.20 |
| Package Height (cm) | 7.60 |
| Package Weight (kg) | 1.380000 |
| Max Pressure | 10 BAR (150 PSI) |
| Operating Pressure | 0.5 - 10 BAR (7 - 145 PSI) |
| Air Outlet Size | 1/2" IN Threaded Female |
| Accuracy | 4.5 PSI(0.3 BAR) |
| Measurements | PSI, KG/CM2 |
