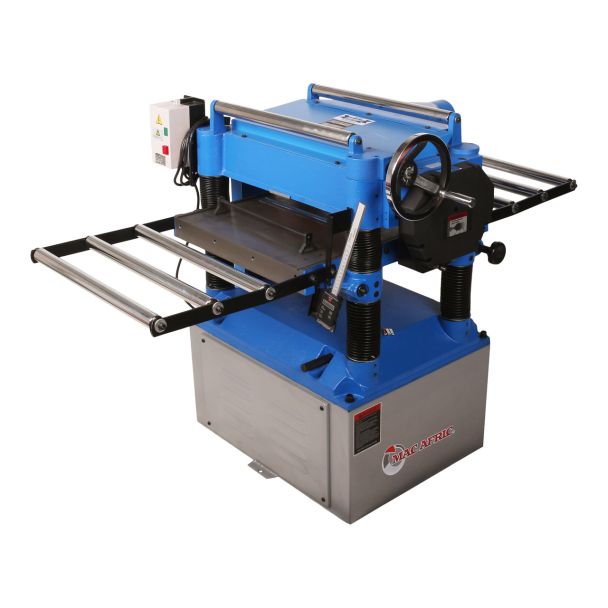

MAC AFRIC 508 MM Automatic Planer
A large automatic wood planer. Powerful motor and durable design.
Return rollers. 125 mm Dust Port. Magnetic Switch. Oil Bath Gearbox for longer lifetime.
Planer/Moulder Specifications
| Feature | Specification |
|---|---|
| Power Output | 2.2 KW (3 HP) |
| Amps | 14 A |
| Voltage | 230 V @ 50 Hz |
| Speed | 2 850 RPM |
| Cutterhead Speed | 5 000 RPM |
| Diameter | 80 mm |
| 127 mm Dust Chute | Included |
| Height Adjustment | 0 – 180 mm |
| Cutters | 4 inserts (508 x 25.4 x 3.175 mm), four-sided |
| Cuts Per Min | 20 000 |
| Maximum Stock Width | 508 mm |
| Maximum Stock Thickness | 5 mm |
| Maximum Depth-of-Cut | 2.34 mm |
| Minimum Length of Stock | 405 mm |
| Feed Rate | 7.32 and 9.45 FPM |
Write Your Own Review
| Package Length (cm) | 96.00 |
|---|---|
| Package Width (cm) | 72.00 |
| Package Height (cm) | 111.00 |
| Package Weight (kg) | 410.000000 |
