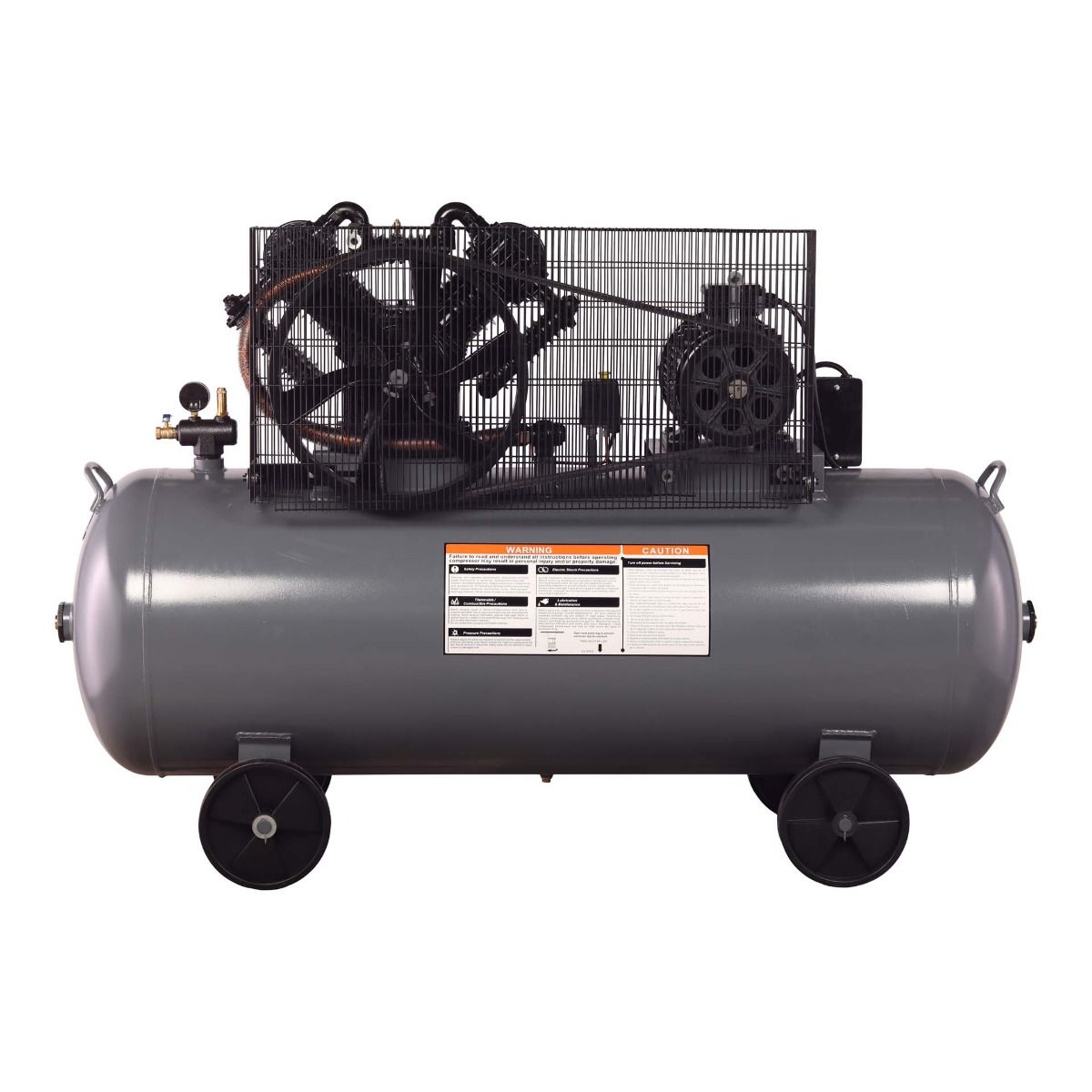

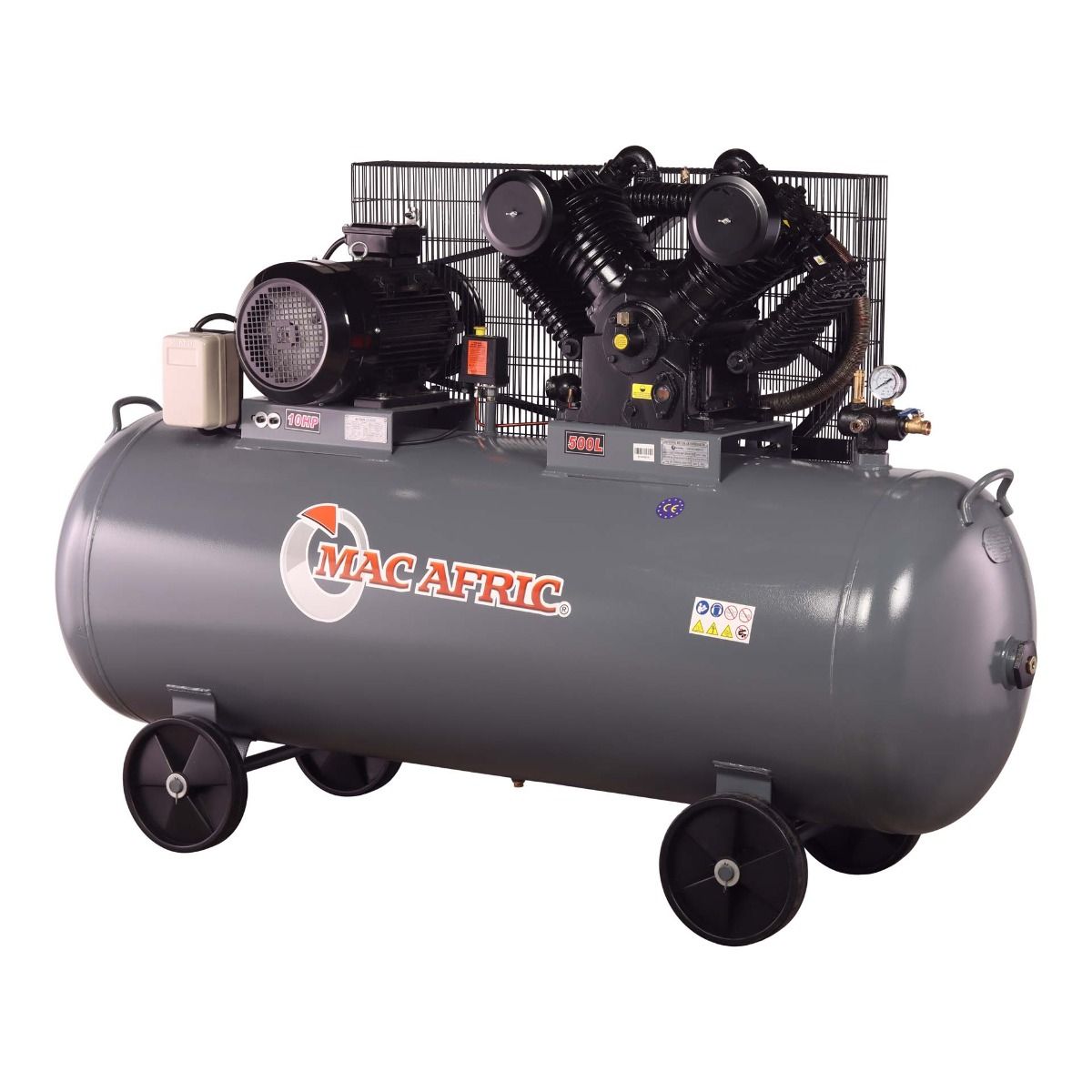

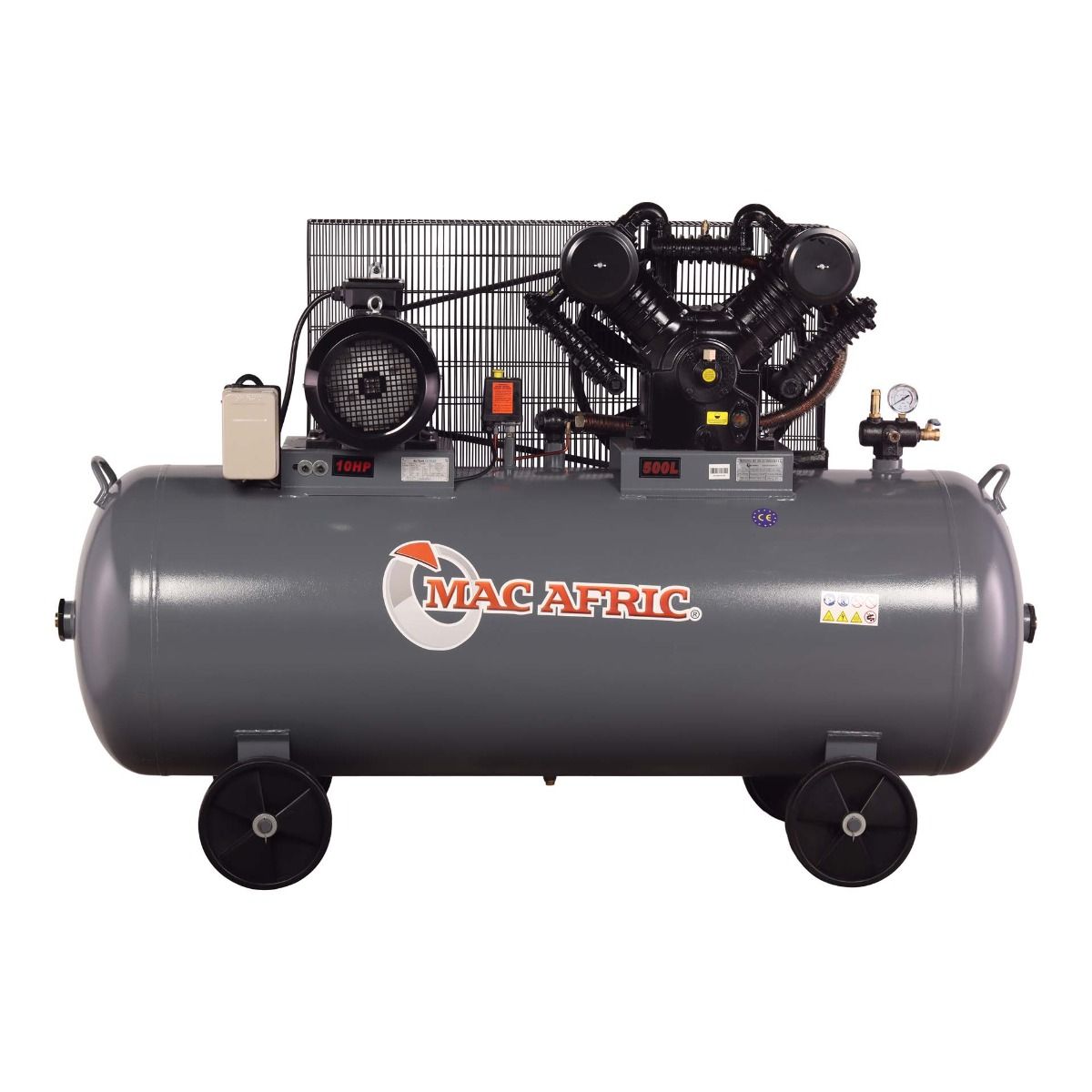

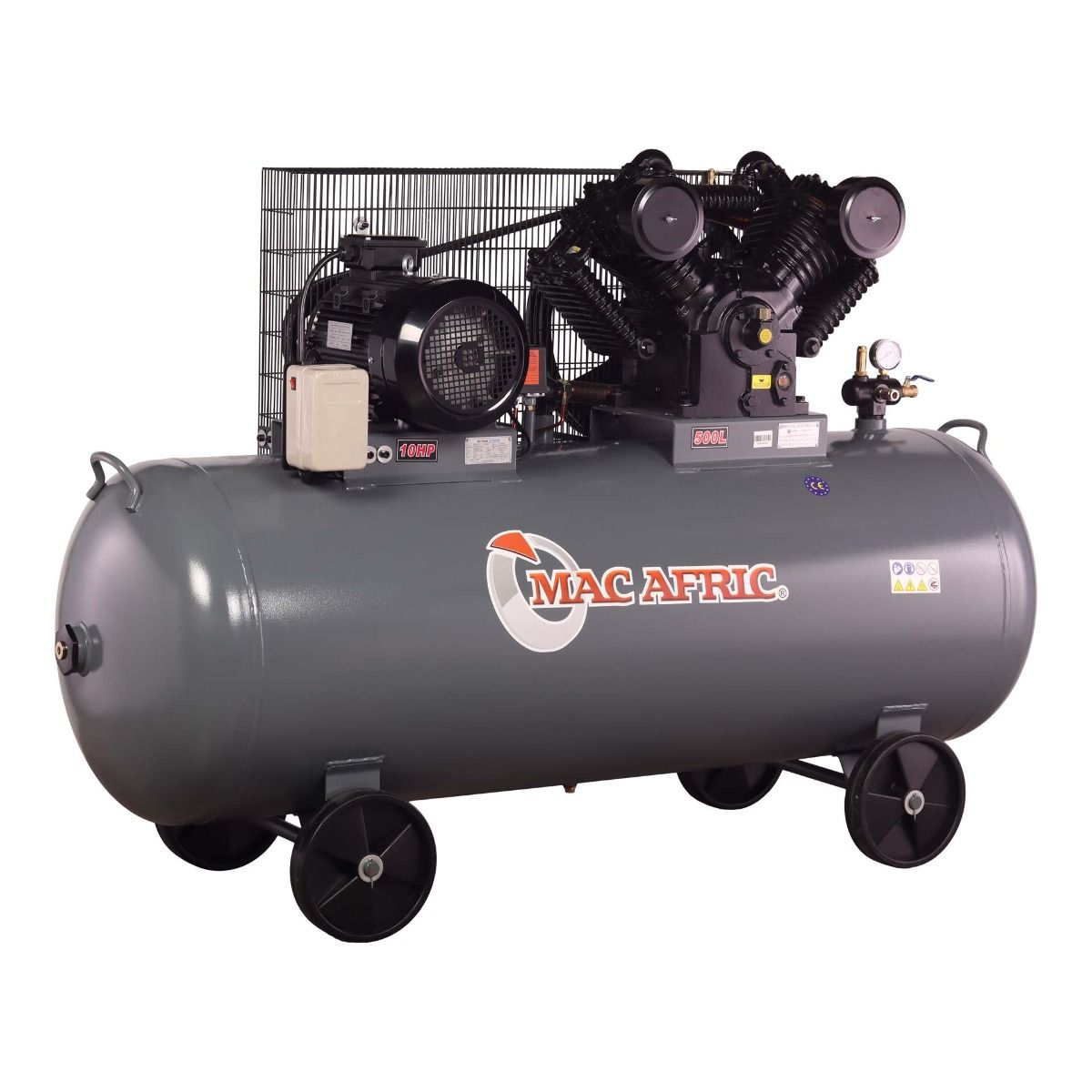

MAC AFRIC 500 Litre 7.5 kW (10 HP) 380 V Belt Driven Compressor
The MAC AFRIC 500L compressor is an ideal choice for small commercial workshops looking for a reliable entry-level model. Equipped with a durable cast iron pump and two-stage pistons, this machine ensures efficient operation with an impressive 89mm stroke, delivering a robust air output of 1229 l/min. Whether you're running light-duty tools or powering more demanding equipment, this compressor is built to handle it all with ease
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 500 L |
| Rated Power | 7500 W |
| Peak Power | 10 HP |
| Motor Speed | 1450 RPM |
| Pump Speed | 670 RPM |
| Cylinder Bore | 55 mm + 105 mm |
| Piston Stroke | 89 mm |
| Max Air Delivery | 43.42 CFM (1229 L/min) |
| Output Delivery @ 4 BAR | 34.43 CFM (975 L/min) |
| Output Delivery @ 6 BAR | 32.77 CFM (928 L/min) |
| Output Delivery @ 8 BAR | 31.6 CFM (895 L/min) |
| Max Tank Pressure | 12 BAR (175 PSI) |
| Amperage | 15 A |
Expert Advice
- The air delivery test is conducted at sea level (0–10 metres). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 190.00 |
| Package Width (cm) | 60.00 |
| Package Height (cm) | 114.00 |
| Package Weight (kg) | 350.000000 |
