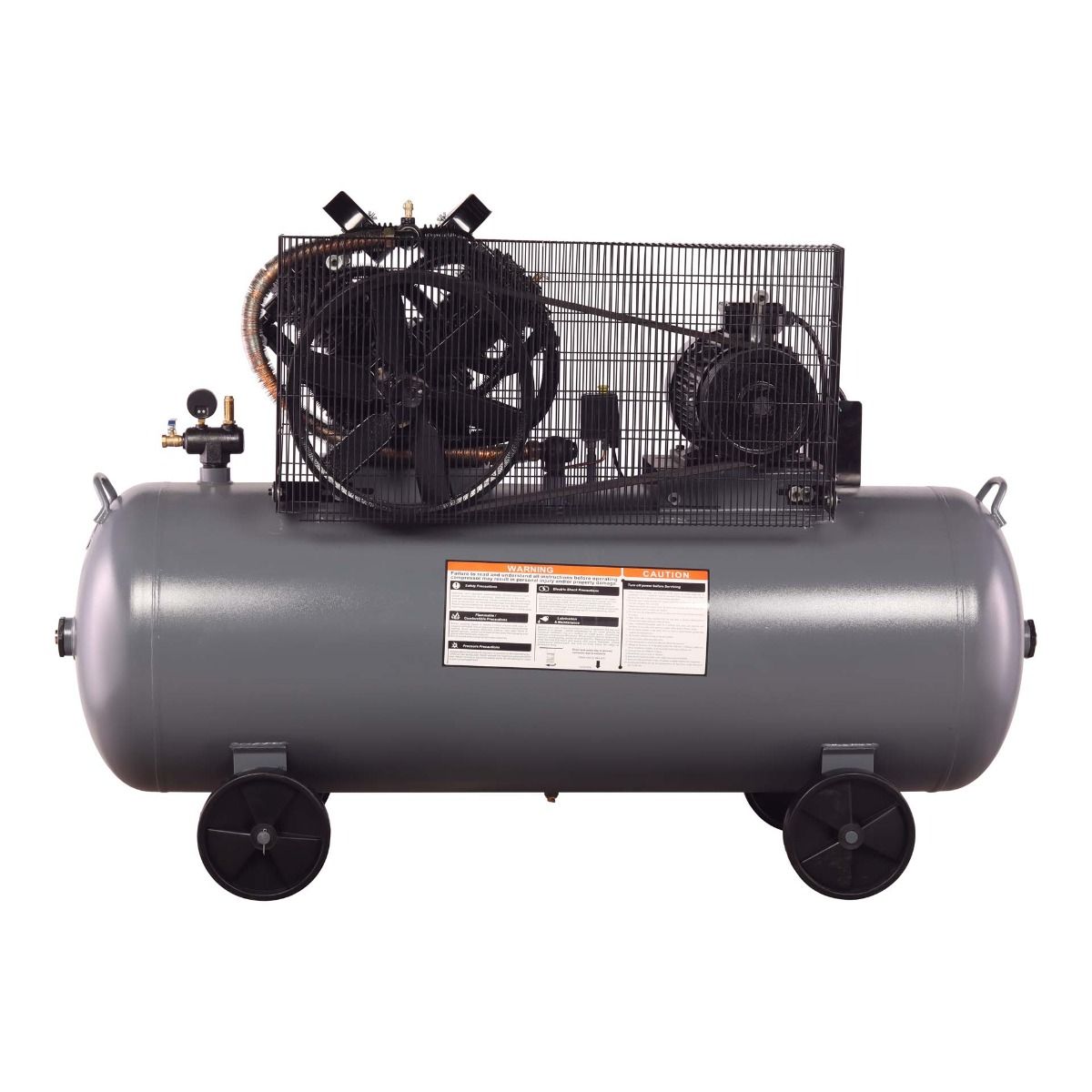

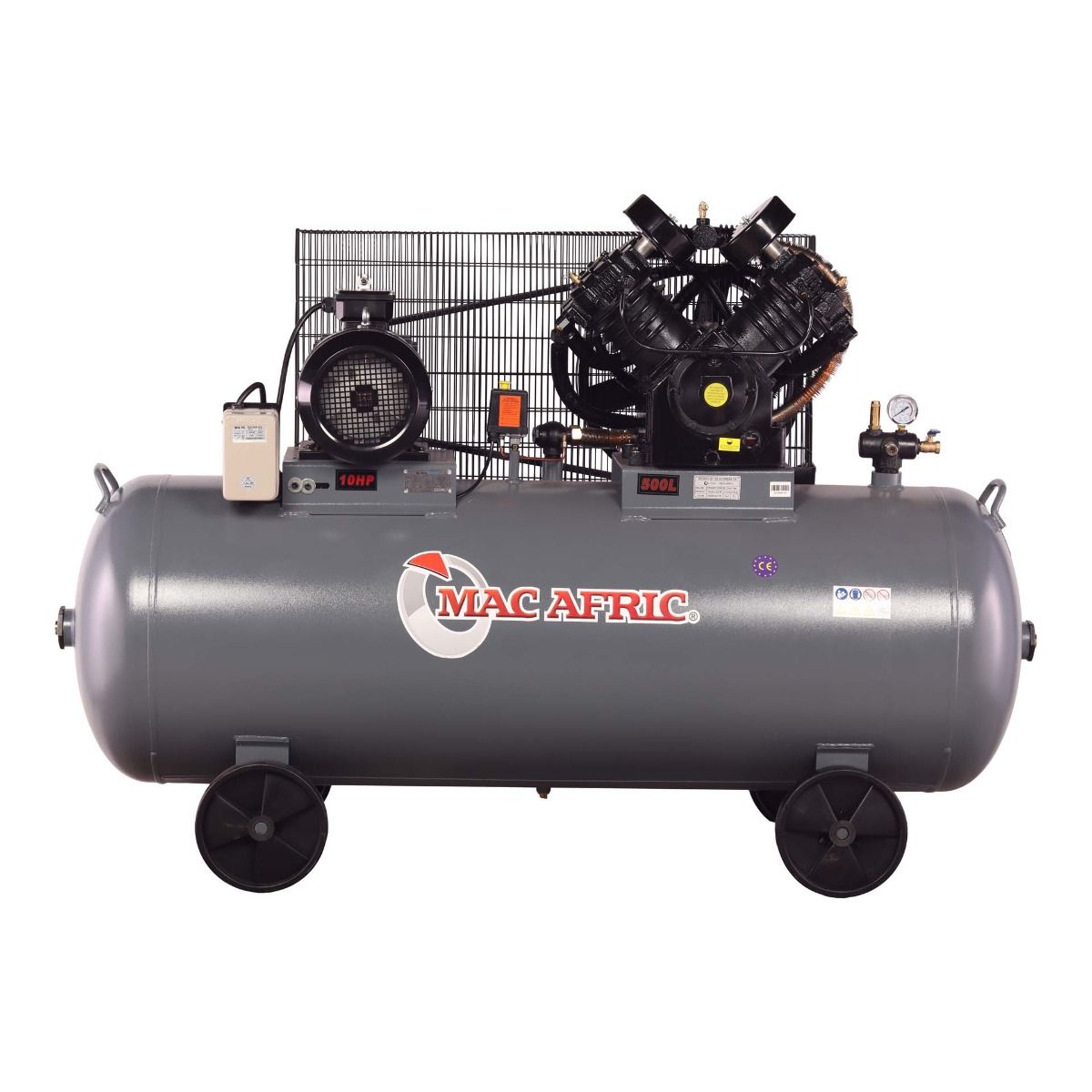

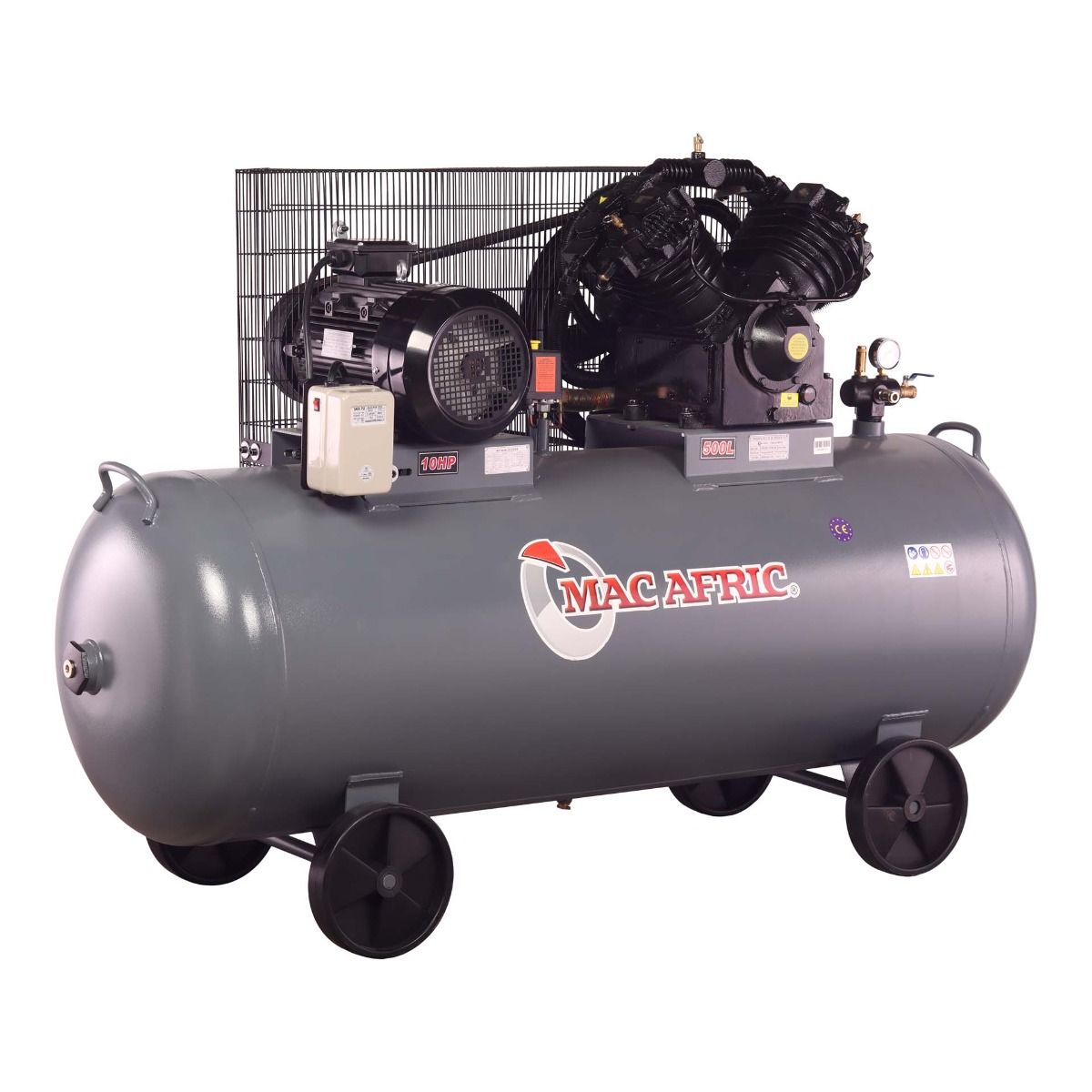

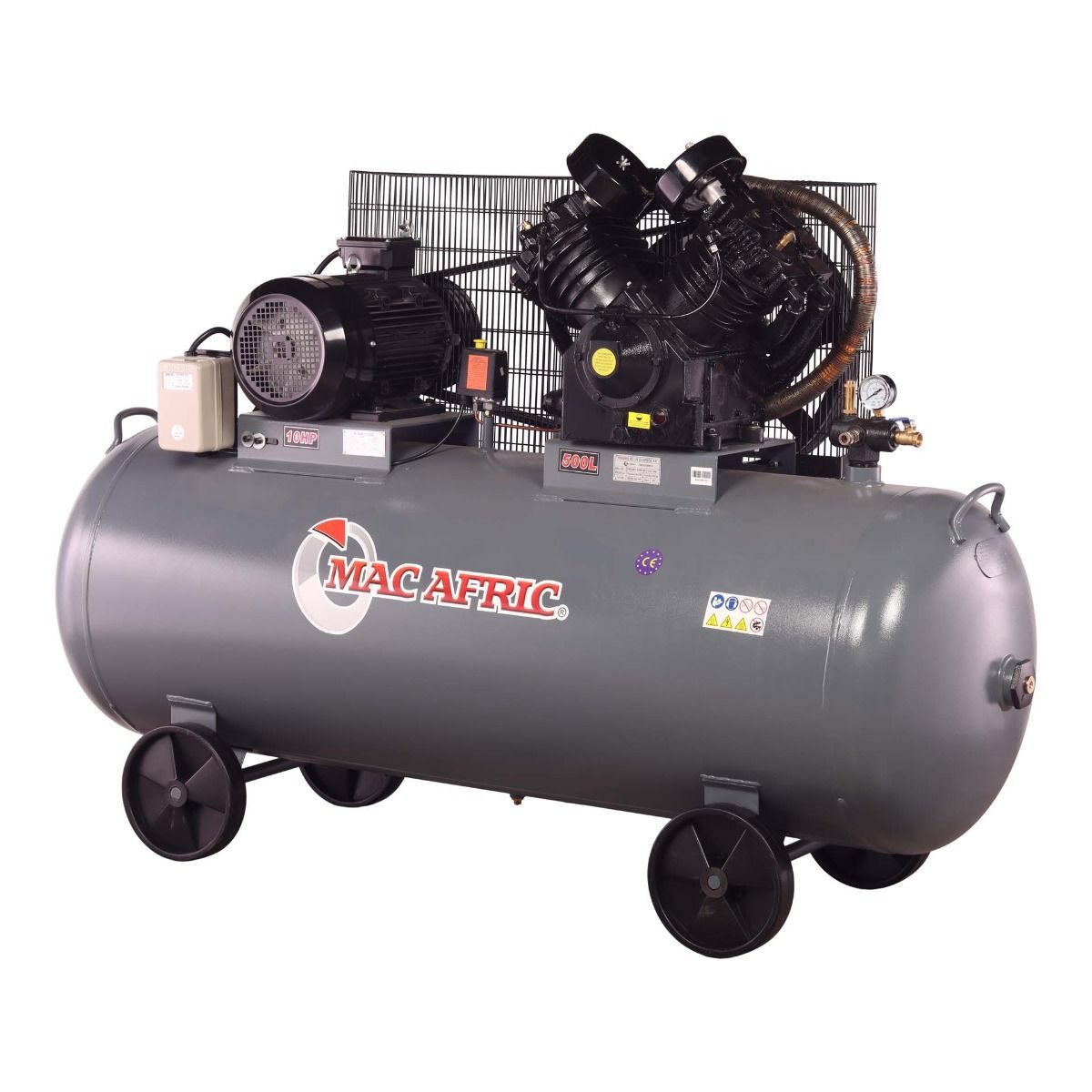

MAC AFRIC 500L 7.5 KW (10 HP) 380 V Belt Driven Compressor
The MAC AFRIC 500L three-phase compressor is an excellent entry-level option for small commercial workshops seeking a reliable and powerful air solution. Built with a durable cast iron pump and efficient two-stage pistons, this compressor features a 76mm stroke, capable of delivering an impressive air volume of 1463 l/min. Designed to handle demanding tasks, it offers consistent performance and durability, making it an essential tool for workshop operations.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 500 L |
| Motor Output | 7.5 KW (10 HP) |
| Outlet Air Flow | 37 CFM (1 150 L/MIN) |
| Max Tank Pressure | 12 BAR (175 PSI) |
| Amperage | 30 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 850 RPM |
| Replacement Head | NA |
| Fuel Type | NA |
| Voltage | 380 V @ 50 HZ |
Expert Advice
- The air delivery test is conducted at sea level (0–10 metres). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Package Length (cm) | 190.00 |
|---|---|
| Package Width (cm) | 60.00 |
| Package Height (cm) | 116.00 |
| Package Weight (kg) | 355.000000 |
